• Model NO.：YTH-225
• Heating System：SUS# Stainless High-Speed Heater
• Temp.Humi.Fluctuation：+,_0.3c;+,_0.5%Rh
• Temp.Humi.Resolution：0.01c;0.1%Rh

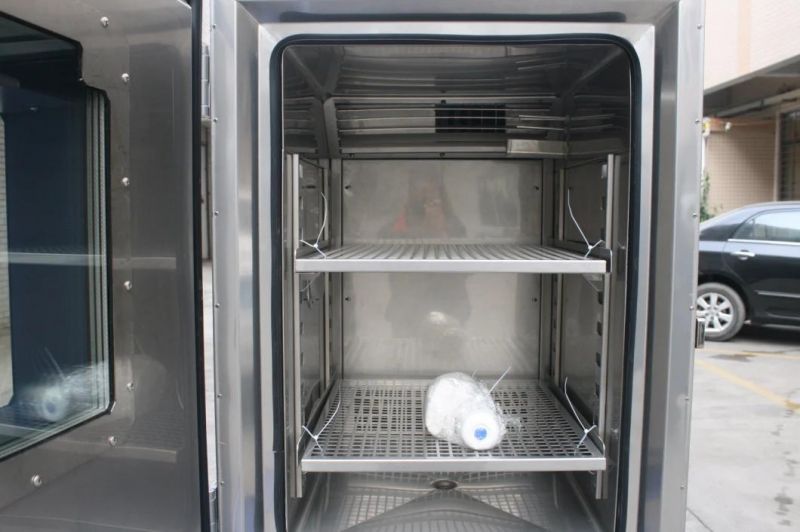

• Compartment Shelf：2 Freely Adjustable
• Heating Time：3 Degrees,Min(Average)
• Cooling Time：1 Degrees,Min(Average)
• Transport Package：Standard Strong Wood Case
• Specification：CE, ISO9001, TUV, SGS
• Trademark：Yuanyao
• Origin：Guangdong, China
• HS Code：8419899090
• Production Capacity：100 Set Per Month

-70ºC,-60ºC,-40ºC,-20ºC,0ºC~150ºC,Other temperature can be customizedTesting humidity range20%RH~98%RH(Low humidity 10%RH~98%RH or 5%RH can be customized)Temp.humi.fluctuation±0.3ºC;±0.5%RHTemp.humi.uniformity±2ºC;±3% empty loading after stablize for 30mins ±2ºC;±3%RHTemp.humi.resolution0.01ºC;0.1%RHHeating&cooling time ºC/minHeat-up:3ºC/min(average),cool-down:1ºC/min(average)Exterior chamber materialCold rolled plate + Powder coatingInterior chamber materialSUS#304 Stainless steelInsulation materialPUCirculation systemCentrifugal fan air circulation systemHeating systemSUS# Stainless steel high-speed heaterHumidification systemElectrothermal steam humidificationDehumidifyingADP critical dew point cooling / dehumidifying methodRefrigeration systemCompressor + Finned evaporator + Air(Water) cooling condenserControlling systemTouch screen controllerOther componentsVacuum glass observation windowTest hole(50mm)Controller status indicatorView lightCompartment shelf (2 freely adjustable)Safety protection deviceOverheat protection circuit breakerHumidification system overheat protectionCompressor overload protectionControl system overload protectionoverload indicatorPhase sequence protectionWater shortage protectionHigh voltage and low voltage protectionOver temperature protectionWater supply delay protectionFan overcurrent protectionPower supplyAC 1ψ220V;3ψ380V 60/50HzCustomization serviceNon-standard or special requirements are all welcome

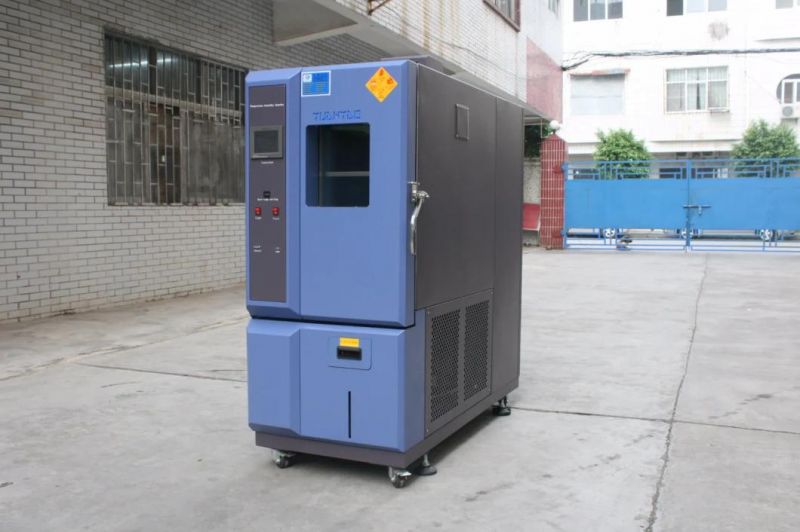

More detail of temperature humidity tester

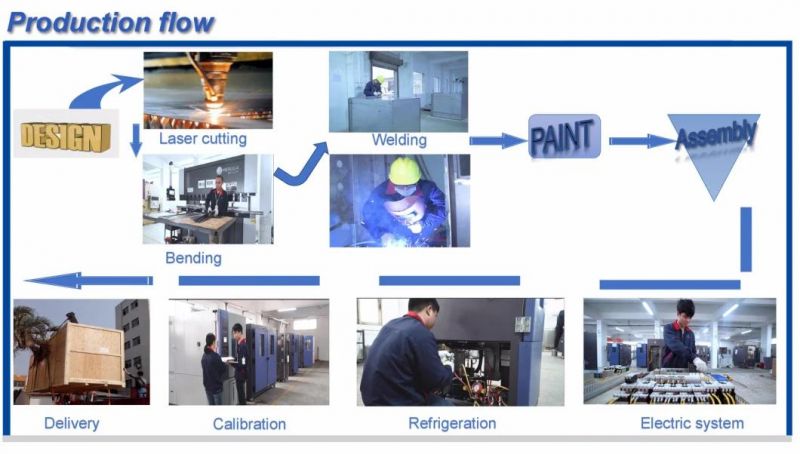

Industrial test equipment Production Line:

We have independent workshops, they are consist of material bending and welding area, machine assemble area, electric system area, cooling system area ,testing and finished product area.

We produce in strict accordance with international safety standard.

Many stock spare parts in warehouse ensure customer can get soon when they need.

Yuanyao profile



If you want to know more about the temperature humidity test chamber,please feel free to conatct me.
Welcome to inquiry !
