• Model NO.：PHW-10000,20000
• Mass Scope of Workpiece：20000kg
• Type：Balancing Machine
• Maxcapacity：<1000KN
• Accuracy Grade：0.5
• Load Way：Electronic Load
• Loading Method：Dynamic Load
• Display：Digital
• Control：Computer Control
• Weight：>2000Kg
• Power Source：AC380V
• Oil Cylinder Position：Under
• Length：4200 mm
• Width：1200 mm
• Height：2300 mm
• Gross Weight：5000 Kg
• Certificate：CE, ISO, SGS, BV. ISO9001: 2008 CE SGS
• Delivery Time：25 Days
• Transport Package：Packed in Fumigated Wood Box
• Specification：4200*1200*2300 mm
• Trademark：JP Balancer
• Origin：Shanghai China
• HS Code：90311000
• Production Capacity：1000 Sets,Month
• Package size per unit product：2400.00cm * 2100.00cm * 1630.00cm
• Gross weight per unit product：1800.000kg

Basic Info.

Model NO. PHW-10000/20000 Mass Scope of Workpiece 20000kg Type Balancing Machine Maxcapacity <1000KN Accuracy Grade 0.5 Load Way Electronic Load Loading Method Dynamic Load Display Digital Control Computer Control Weight >2000Kg Power Source AC380V Oil Cylinder Position Under Length 4200 mm Width 1200 mm Height 2300 mm Gross Weight 5000 Kg Certificate CE, ISO, SGS, BV. ISO9001: 2008 CE SGS Delivery Time 25 Days Transport Package Packed in Fumigated Wood Box Specification 4200*1200*2300 mm Trademark JP Balancer Origin Shanghai China HS Code 90311000 Production Capacity 1000 Sets/Month

Packaging & Delivery

Package size per unit product 2400.00cm * 2100.00cm * 1630.00cm Gross weight per unit product 1800.000kg

Product Description



Production Description

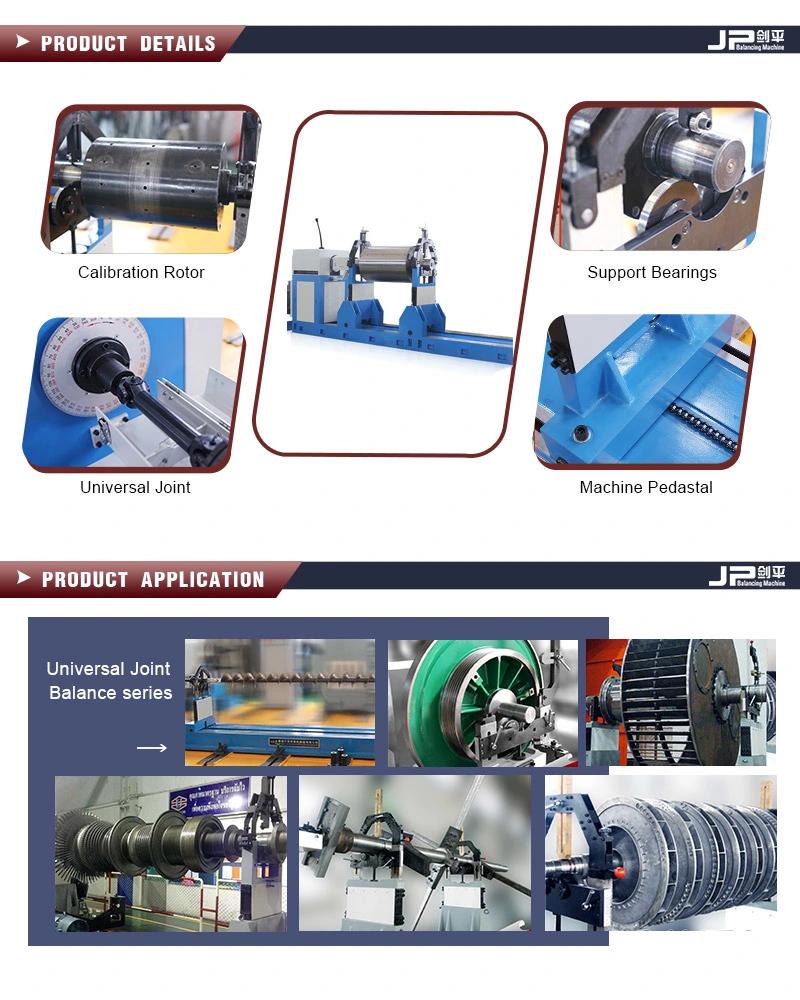

Special designed brackets can effectively transmit mechanical force
The durable and reliable sensor possesses high sensitivity
The permanent calibration brings high accuracy
Driven by universal coupling,transmit the power steadily
Applicable to rotors which can't be driven by belt or need large power

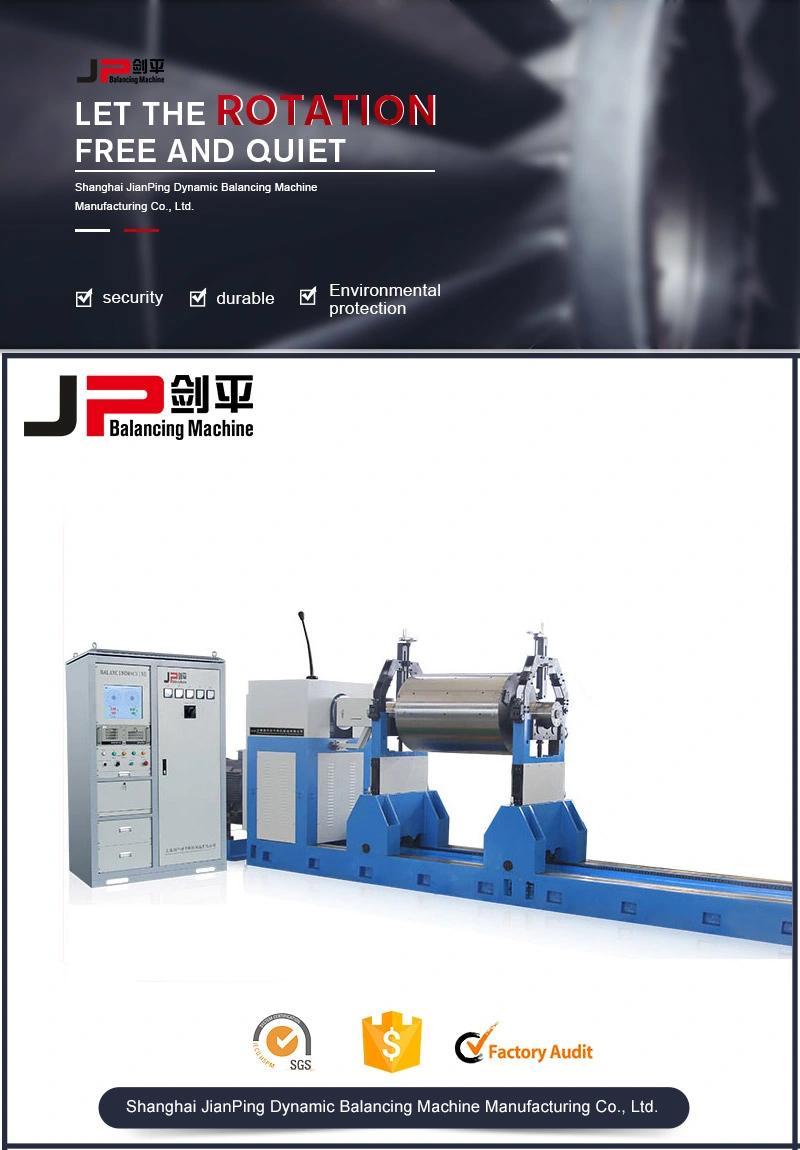

Advanced electrical measuring system and friendly man-machine interface Range of Application 10000/20000kg Universal Joint Drive Balancing Machine (PHW-10000/20000) isalso  mainly used in checking the balance of rotatable bodies such as good-sized motors, spindles of machine tools, blower, centrifuges, generator rotor , clinopodiums, pump impeller. drying cylinder. ceramic machinery,rollers,rubber sticks,etc.. Driven by gear box universal coupling , equipped with Variable speed motor to drive .Which ensures high quality balancing and precision. With wide speed range,large driving power, high precision and easy operation etc     Special Features

The measuring unit employs JP-580 Electrical Measuring unit is a system of top function and precision. It can be applied in all kinds of single/double plate and hard/soft bearing machines, and can be connected with different velocity and pressure sensors easily. The unit adopts industrial computer made in Yanhua Industry Co, which equiped with 17-inch LCD screen and Windows XP Operating System. Featuring with high running speed and reliabilitystrong dustproof and shakeproof ability, it is applicable to various industrial environments.



Technical data at a glance	PHW-10000	PHW-20000
Mass Scope of Workpiece (kg)	10000	20000
Max Diameter of Workpiece (mm)	2800	2800
Distance Between Two Support Bearings (mm)	Min:450	Min:450
Journal Diameter Scope of Workpiece (mm)	60~400	60~400
Max Distance between Driving Flange and Right Bearing Support (mm)	3600	3600
Rotation Speed of the Main Axis (r/min)	195/336/561/916/1374 +Stepless speed regulation	195/336/561/916/1374 +Stepless speed regulation
Motor Power (kw)	30 Frequency conversion	55 Frequency conversion
Torque of Universal Joint Shaft (N@m)	2250	5000
Min Achievable Residual Unbalance Amount (emar)	1g. mm/kg	1g.mm/kg
