• Model NO.：BP-8170-A
• Loading Method：Dynamic Load
• Display：Digital
• Control：Manual Control
• Weight：100-500Kg
• Power Source：AC380V
• Oil Cylinder Position：Under
• Transport Package：Plywood Wooden Case
• Specification：920*470*1470(W*D*H)mm
• Trademark：BAOPIN
• Origin：China
• HS Code：8477800000
• Production Capacity：100 Sets,Month

Basic Info.

Model NO. BP-8170-A Loading Method Dynamic Load Display Digital Control Manual Control Weight 100-500Kg Power Source AC380V Oil Cylinder Position Under Transport Package Plywood Wooden Case Specification 920*470*1470(W*D*H)mm Trademark BAOPIN Origin China HS Code 8477800000 Production Capacity 100 Sets/Month

Product Description

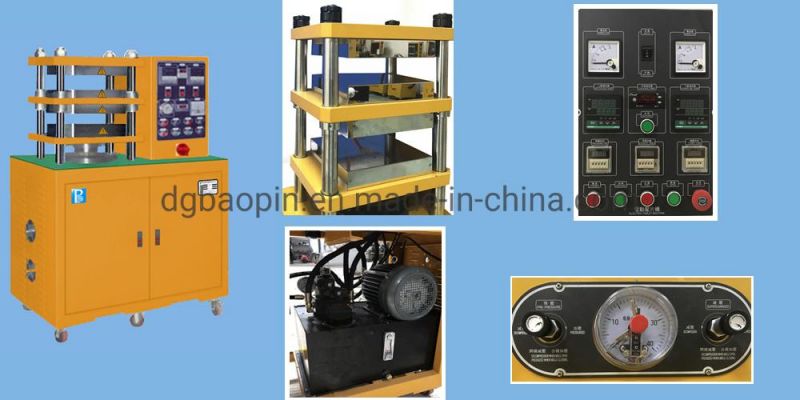

Equipment control hydraulic laboratory press

The hydraulic laboratory press is equipped with LED indicator, press key set input, the value indicate output. It can be used with detection of material gel (fish eye ), black spot and stain, physical properties test, etc.

The material is placed in the casting mould and clamped between the electric-heating flat plates of hydraulic laboratory press to apply pressure and temperature, making the material shape, testing and serving as the basis for the ingredient of mass production.


Parameters:

Capacity	20/30/50T (optional)
Temperature range	Normal temperature ~ 300 ºC
Pressing plate size	300 X 300 X 50 mm
Distance of pressing plate	70 mm
Oil pressure medium	Mobil 32# antifreeze hydraulic oil
Power supply	3 ∮, five lines

Specification:
1.Controller: LED indicator, press key set input, the value indicate output.
2.Heating method: Electro-thermal tube
3.Cooling method: Tap water cooling
4.Working layer: Two layers. The upper die plate heating, the lower die plate cooling.
5.Oil pressure system: GPY oil pump drives high-performance electric fluid injection and the non-resistance fuel tank carries out constant speed control mode with the functions of automatic compensation and time delay stopping of the fuel tank.




Features

1. The pressure is optional: 20 tons, 30 tons and 50 tons.
2. Four high-strength, precise guide pillars bear the mould locking device of two-layer mould pressing plate. The design of the rack is based on heavy-duty structural steel, which can reduce the risk of deformation and damage effectively. The parallelism between the mould pressing plates is extremely high, together with stable loading and durability, to meet the requirements of high-precision pressure pieces.
3. The machine is equipped with imported high-precision PID digital display with temperature control. The heat transfer tube distributed on the density basis can ensure the uniformity of the temperature of the surface.
4. The mould pressing plate consists of the upper heating area and the lower cooling area. The upper layer is equipped with multiple rows of heat transfer tubes inside with stable heating and the lower layer is connected to the S-shaped cooling tube with quick temperature drop. The integration of electric heating and cooling contributes to its wide application.
5. The hydraulic system is featured by automatic compensation, time delay stopping and pressure maintenance, with at least settable duo-pressure and two unit displays. And multiple exhaust operations can be set at will. The combined design optimization of electro hydraulic drive can improve the efficiency and reduce energy consumption.
