Single row

Identify wire color, determine correct position, determine if wire terminal inserted in place, detect poor wire harness and alarm NG

• Test items:

  (1) Automatically identify the color of each wire of the harness and systematically determine whether the position is correct.

  (2) Automatically judge whether the wire terminal hole is inserted incorrectly or in place

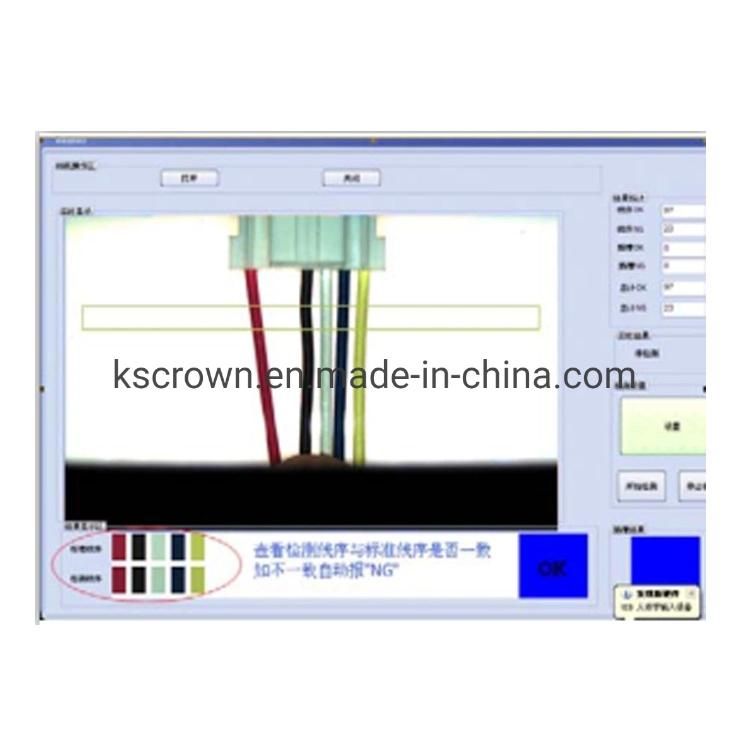

  (3) Automatically display the wire position of the bad line sequence, and give an audible alarm prompt NG

• Automatically triggers after the material is stable, no need for foot switch or other IO input trigger

• The detection accuracy is high, and even if characters are printed on the surface of the wire, the system can eliminate the interference of characters and accurately distinguish the color line sequence. Detection time <0.2s/pcs

• You can place the harness to be tested in the inspection frame at will, without strict placement restrictions.

• FM-9A can support I/O output, with small size and light weight

• Integrated embedded device, low power consumption (<35W), anti-virus

• Easy to use, easy to replace the material under test

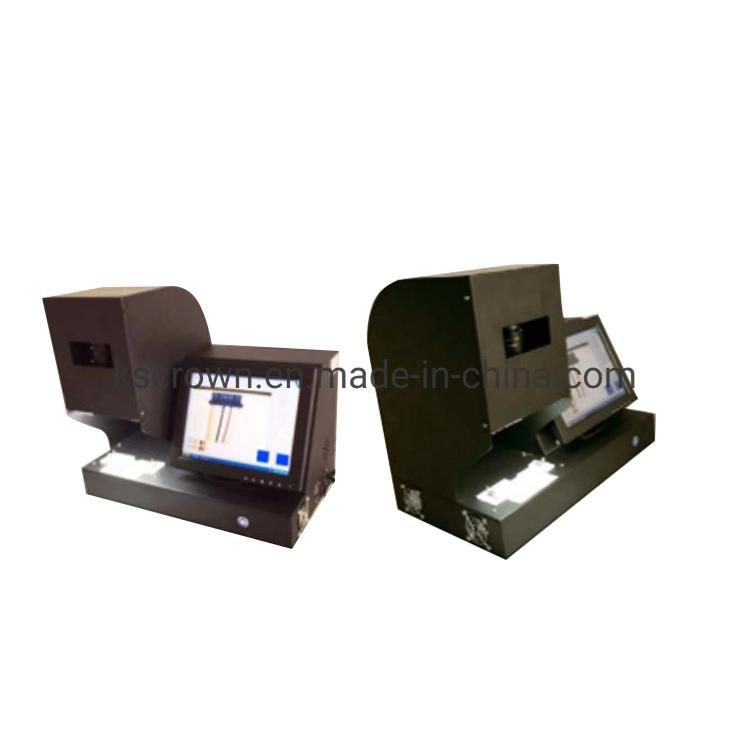

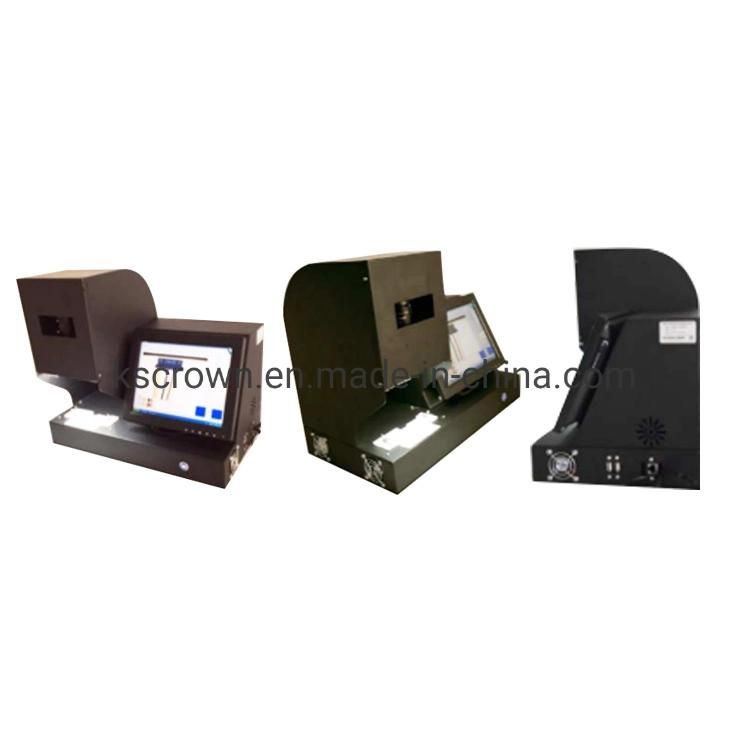

Product show:

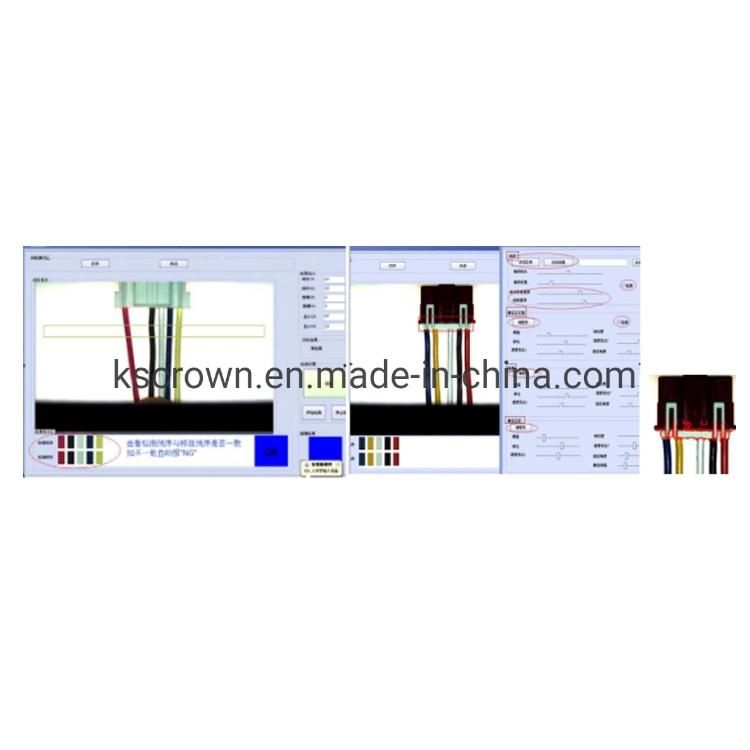

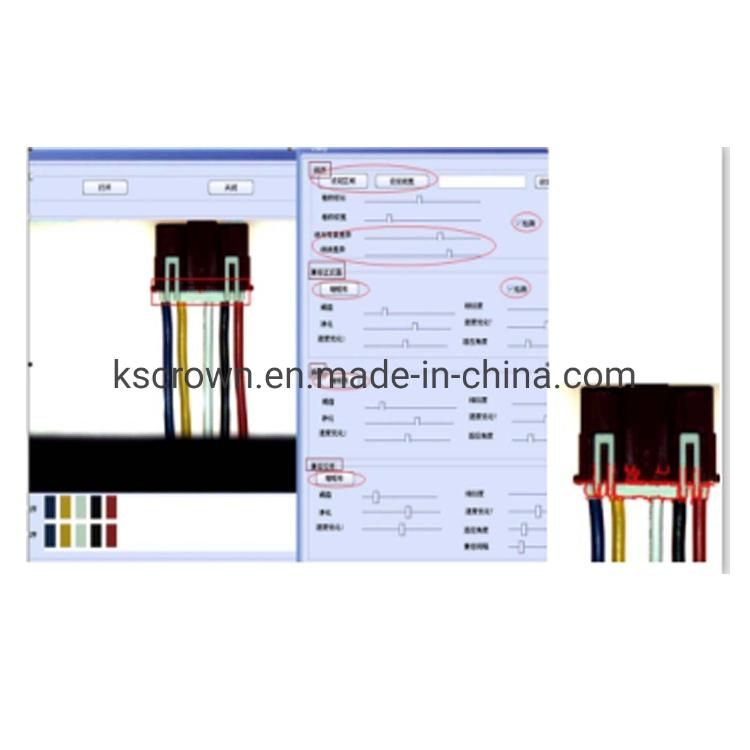

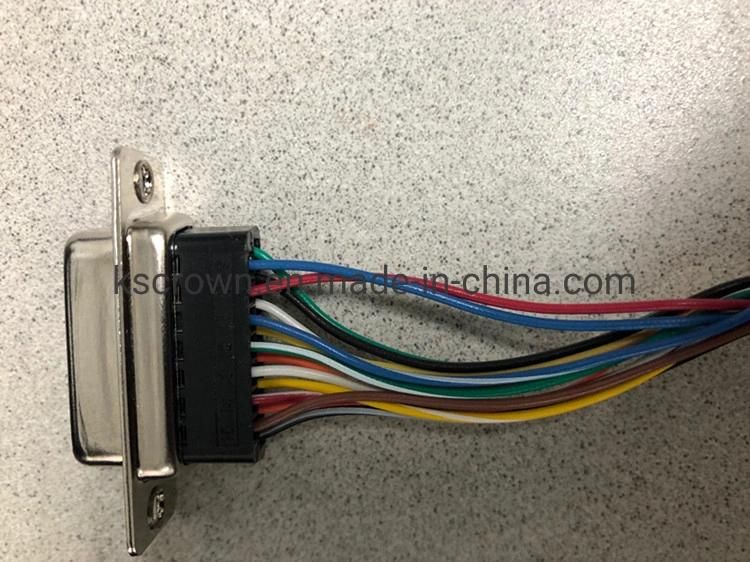

Machine processing samples:

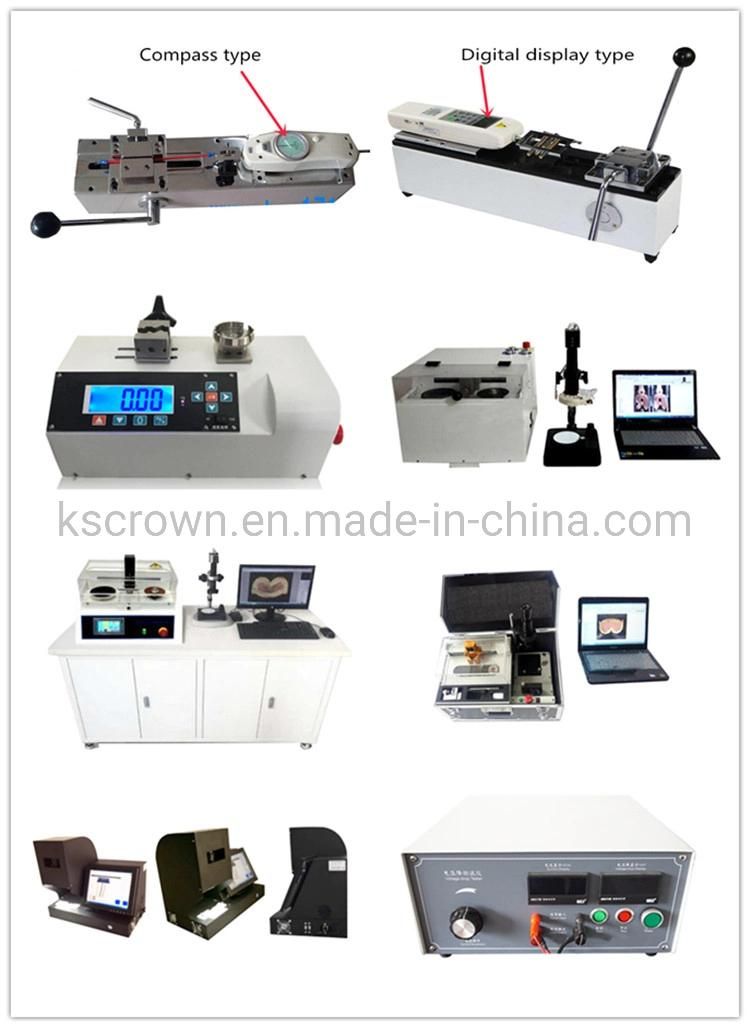

Related products:
