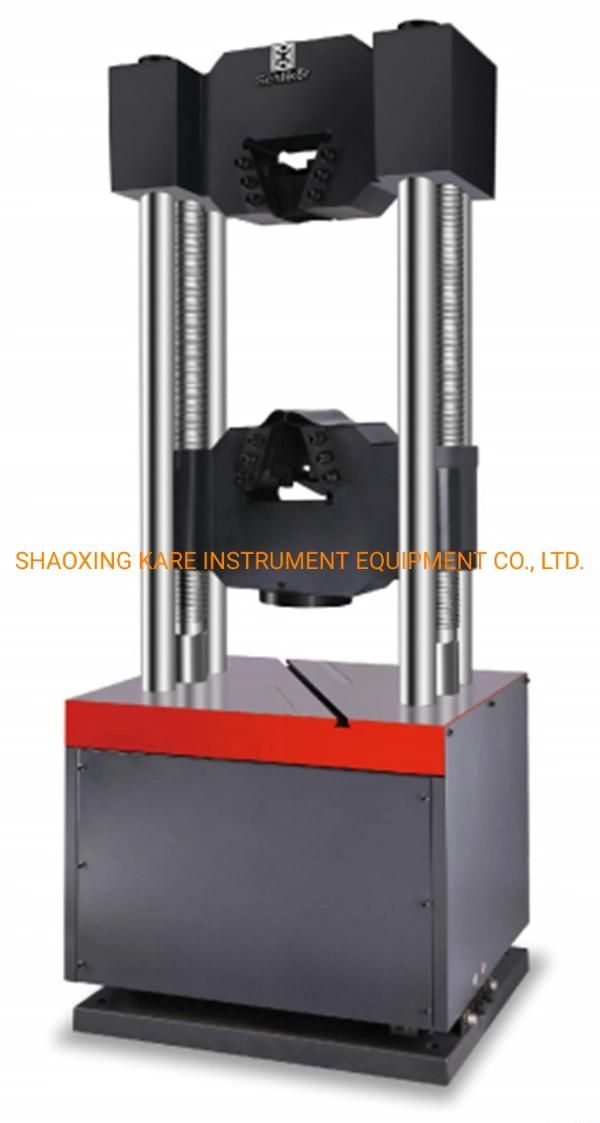

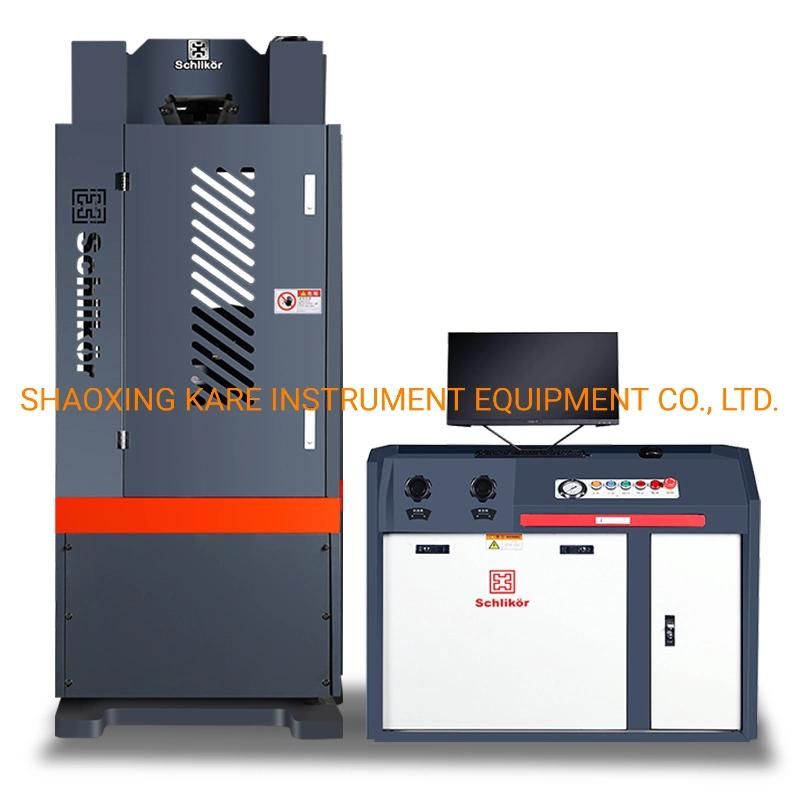

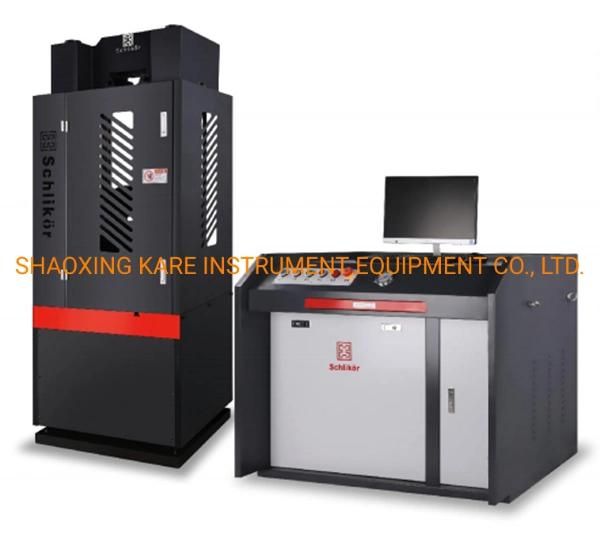

Utm Laboratory Computer Control Servo Universal Tensile Compression Test Testing Machine (WAW-1000D)

SHAOXING KARE INSTRUMENT EQUIPMENT CO., LTD.
  • After-sales Service：Yes
  • Warranty：One Year
  • Maxcapacity：>1000KN
  • Accuracy Grade：1
  • Load Way：Hydraulic
  • Loading Method：Static Load

Base Info

  • Model NO.：WAW-1000D
  • Display：Computer
  • Control：Computer Control
  • Power Source：AC380V
  • Oil Cylinder Position：Under
  • Transport Package：Wooden Case
  • Origin：Zhejiang, China
  • HS Code：90241010
  • Production Capacity：50sets,Month

Description

WAW-1000DMax. testing force1000KNEffective measuring range4%~100%F.SRelative error to force value (%)±1Max. tensile test space685mmMax. distance between upper and lower presser disks585mmWidth of flat specimen clamping≤80mmFlat sample holding thickness0-20mmDiameter of round specimen20-60mmPiston stroke250mmUpper and lower platen size (mm)φ200mmMax. bending test pressed rolling distance600mmEffective distance between two columns510mmLoad control modeComputer control automatic hydraulic loadingSpecimen clamping modeHydraulic automatic clampingMotor power≈2.2kWMain body dimension (L×W×H) (mm)830×700×2200Control & measurement cabinet dimension(L×W×H) (mm)1000*500×780
