• Model NO.：XH series
• Test Mode：Saved Test
• Usage：Network Cable Tester, HDMI Cable Tester, Audio Cable Tester, Coaxial Cable Tester, Digital Cable Tester
• Test Region：Forming Cable
• Cable Type：Shielded
• Power：Electricity
• Certification：CE
• Customized：Customized
• Color：Orange
• Transport Package：Wooden Box with Foam Inside
• Specification：350mm*280mm*170mm
• Trademark：XZH TEST
• Origin：China Xi′ an
• HS Code：8543201000
• Production Capacity：100 Pieces ,Year
• Package size per unit product：40.00cm * 34.00cm * 20.00cm
• Gross weight per unit product：40.000kg

Basic Info.

Model NO. XH series Test Mode Saved Test Usage Network Cable Tester, HDMI Cable Tester, Audio Cable Tester, Coaxial Cable Tester, Digital Cable Tester Test Region Forming Cable Cable Type Shielded Power Electricity Certification CE Customized Customized Color Orange Transport Package Wooden Box with Foam Inside Specification 350mm*280mm*170mm Trademark XZH TEST Origin China Xi′ an HS Code 8543201000 Production Capacity 100 Pieces /Year

Packaging & Delivery

Package size per unit product 40.00cm * 34.00cm * 20.00cm Gross weight per unit product 40.000kg

Product Description

Product introduction:

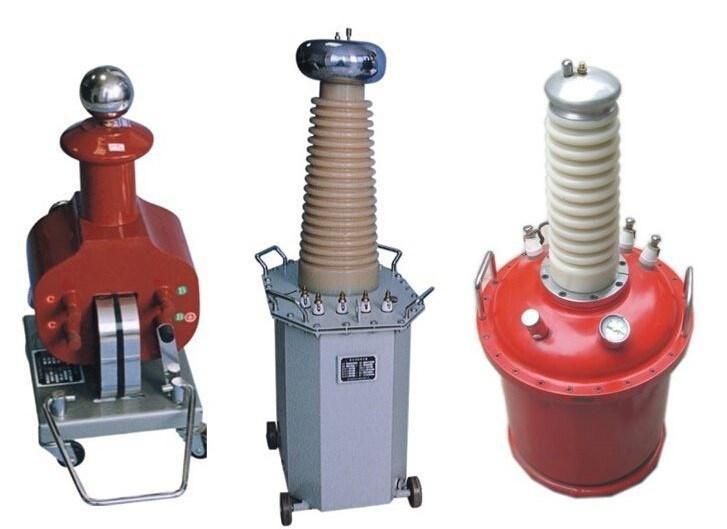

The XH series power frequency high voltage test device is an essential equipment for preventive test and factory test of various electrical equipment. It is tested to find local defects of the test object. The test transformer cores produced by our company all adopt C-type iron cores, which are smaller in size, lighter in weight, no-load current and no-load loss, high efficiency, easy to maintain and low in cost.

XHGK series power frequency withstand voltage controller can be used together with various power frequency test transformers for AC/DC withstand voltage test and cable fault test of various electrical equipment. Output 0-250/400V power frequency AC power separately.

Main Features:

1. There are four types of communication, AC series, AC and DC, and series AC and DC.

2. XHY series oil immersed, XHG series dry type, XHQ series inflatable type.

Main Specifications:

3. Rated standard capacity: 1kVA-1000kVA

4. Transformer input voltage: 0.2, 0.4, 3, 6, 10kV; output AC voltage: 1kVA-1000kVA

5. Control box input voltage: AC 220/380V; output voltage: AC 0-250/400V

6. No-load loss: ≤15% Load loss ≤15% Total loss ≤10%

7. Display mode: digital or pointer type 0.5/1.0/1.5/2.5 level

8. Timing range: 0-9999s

9. Overcurrent protection: continuously adjustable, manual setting (can also be made according to user's special requirements)
