• Model NO.：PHCW-100,200
• Width：600 mm
• Height：1300 mm
• Gross Weight：1200 Kg
• Output Power：7.5variable-Frequency
• Packaging Details：Fumigated Wood Box
• Delivery Detail：Within 20 Days After Confirmng The Order
• Transport Package：Packed in Fumigated Wood Box
• Specification：ISO. CE. SGS
• Trademark：JP
• Origin：Shanghai China
• HS Code：90311000
• Production Capacity：1000 Sets,Month
• Package size per unit product：95.00cm * 95.00cm * 1630.00cm
• Gross weight per unit product：289.000kg

Basic Info.

Model NO. PHCW-100/200 Width 600 mm Height 1300 mm Gross Weight 1200 Kg Output Power 7.5variable-Frequency Packaging Details Fumigated Wood Box Delivery Detail Within 20 Days After Confirmng The Order Transport Package Packed in Fumigated Wood Box Specification ISO. CE. SGS Trademark JP Origin Shanghai China HS Code 90311000 Production Capacity 1000 Sets/Month

Packaging & Delivery

Package size per unit product 95.00cm * 95.00cm * 1630.00cm Gross weight per unit product 289.000kg

Product Description

Technical data at a glance	PHCW-100
Max Mass of Workpiece (kg)	100
Effective length of workpiece(mm)	2000
Max Diameter of Workpiece(mm)	Φ130
Shaft tube diameter of workpiece(mm)	Ø120
Balancing speed(mm)	1600~3200
Motor Power(KW)	1.5Frequency conversion
Universal joint torque(N.M)	60
Min Achievable Residual Unbalance Amount(e mar )	≤5g
Once reduced rate (%)	≥85

Production Description:
Specially designed brackets transmit mechanical force with high rigidity
Durable and reliable sensor possesses high sensitivity
Permanent calibration brings high accuracy with a permission of large initial unbalance amount
Advanced electrical measuring system and friendly man-machine interface

Range of Application:

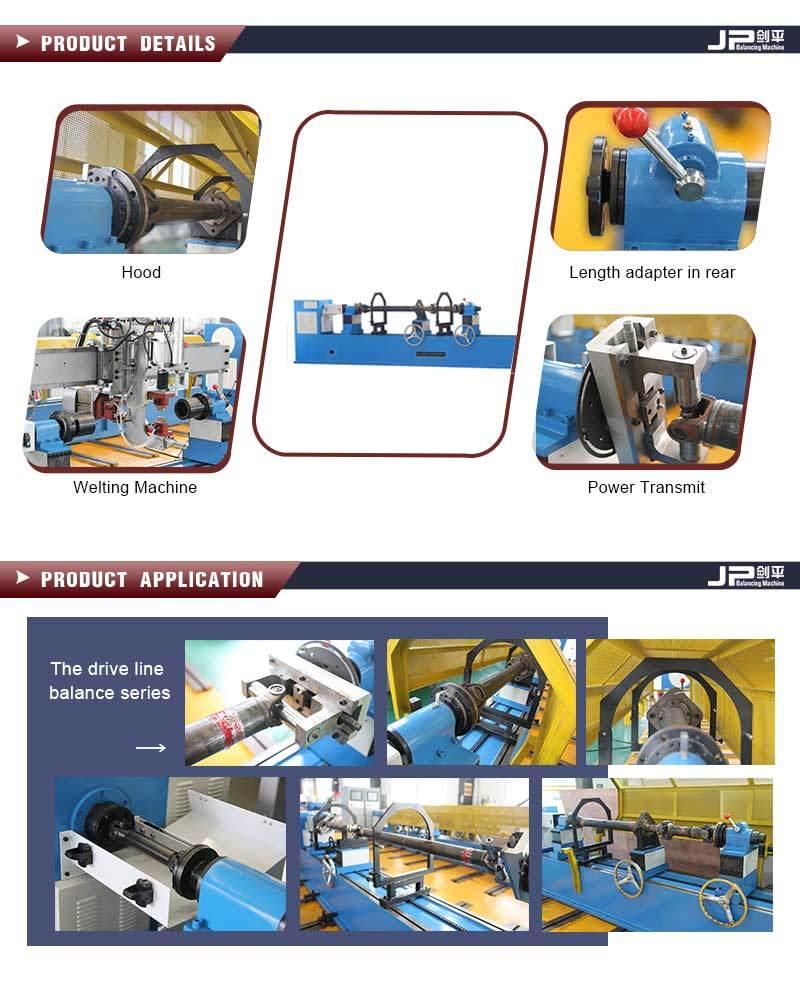

Balancing Machine for Drive Shaft (PHCW-100) is equiped with hard bearing structure. Electromechanical transducer adopts piezoelectric sensor Large output, small size, stable performance. Mainly used in the production and repair of all kinds drive shaft factories. With the advantages of high measuring speed, high precision, easy to load and unload, Investment at low cost. It is an ideal device for shaft manufacturers and maintenance factories.
Special Features:
The measuring unit employs JP-580B Electrical Measuring unit is a system of top function and precisionIt can be applied in all kinds of single/double plate and hard/soft bearing machines, and can be connected with different velocity and pressure sensors easily. The unit adopts industrial computer mainboard which equiped with 15-inch LCD screen and 1G Memory, Electric board 4G, Windows XP Operating System. Featuring with high running speed and reliabilitystrong dustproof and shakeproof ability, it is applicable to various industrial environments.

After Sale Service:
Professional engineer and application specialists respond to your requests efficiently
Online via SKYPE MSN; Also through mail, voice phone message and fax if network is not accessible for customer
Follow up the case, record the entire process. Solution will be provide with 24 hours
Meanwhile, the problem complaint will be reported to QC department
QC will find defect from which department, who is in charge to identify responsibility
Collecting and record customer respond, suggestion, requirement

Warranty period:
Life-time warranty. Any problem caused by our party within one year from the date of shipment, we will provide free spare parts for the repairment. After one year, we can provide the spare parts, but the user should pay for the related cost, including cost of the spare parts, delivery cost etc.
