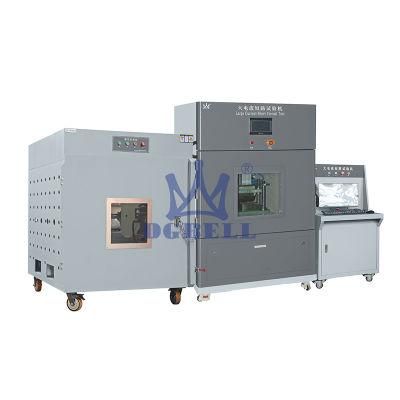

Laboratory Battery External Short Circuit Testing Equipment Manufacturer
GUANGDONG BELL EXPERIMENT EQUIPMENT CO., LTD.- After-sales Service：24 Hours Online
- Warranty：1 Year
- Type：Battery External Short Circuit Test Chamber
- Maxcapacity：<1000KN
- Accuracy Grade：0.5
- Load Way：Mechanical Load
Base Info
- Model NO.：BE-XL-SERIES
- Loading Method：Dynamic Load
- Display：Digital
- Control：Computer Control
- Weight：0-100Kg
- Power Source：AC220V
- Usage：for Battery Safety Testing
- Customized：Yes
- Testing Before Delivery：Yes
- Products Name：Battery Forced Internal Short Circuit Test Chamber
- Transport Package：Each Set Protected with Resin Fiber and PP Film, T
- Specification：Maxi Current 5000A
- Trademark：DGBELL
- Origin：Guangdong China
- HS Code：9031809090
- Production Capacity：100set ,Month
Description
Ambient TemperatureInner Resistance <1mΩ,<5mΩ,<10mΩ,<20mΩ,<50mΩ,<100mΩ(Optional) Control Mode PLC Touch Screen + Computer remote control + Remote controller Overall Dimension W700xD1050xH1830mm Explosion proof Chamber Dimension 800 X 800 X 800mm,1000 X 1000 X 1000mm (Optional) Voltage Measurement Range 0~500V Short Circuit Response Time <=20ms Data Interface USB, Data card, etc. Data Acquisition Module Independent remote acquisition, multi-voltage/temperature/current acquisition channels ensure data accuracy. Acquisition frequency 100HZ Short Circuit Mode Pneumatic + vacuum arc extinguishing Safety Device Electric leakage, over current protection ,smoke alarm device, abnormal sound light alarm. Testing Fixture Customize according to actual testing condition Power Supply 220V 50HZ
Established in 2005, Guangdong Bell Experiment Equipment Co., Ltd is specialized in manufacturing a variety of quality inspection instruments, testing equipments and other high-tech products which mainly include: Constant Temperature & Humidity Test Chamber,High & Low Temperature Test Chamber, High & low Temperature Testers with Rapid Temperature Change, Walk-In humidity & temperature test chamber, Cool/Thermal shock test chamber, Salt spray chamber, High temperature aging tester, sand and dust testing machine,tension tester, high and low temperature testing machine , servo computer battery crush tester, mechanical vibration testerBattery washing tester ,battery burning tester and other quality testing instruments. Thanks to several decades of R&D efforts,the company has established itself as a leading provider of testing instruments of the industry, playing a crucial role in the research and development of high-quality and high-value products within the industry.
15+ years experience in test chambers manufacturing, High performance for your projects.
With unmatched quality advantage, a dynamic management team, professional customer services, superb manufacturing techniques and innovative research and development ideas, Guangdong Bell Experiment Equipment Co., Ltd, supported by an international, standard and professional quality policy, is gradually becoming an international brand. Its products are manufactured in consistent with a number of world standards.
Established in 2005, Guangdong Bell Experiment Equipment Co., Ltd is specialized in manufacturing a variety of quality inspection instruments, testing equipments and other high-tech products which mainly include: Constant Temperature & Humidity Test Chamber,High & Low Temperature Test Chamber, High & low Temperature Testers with Rapid Temperature Change, Walk-In humidity & temperature test chamber, Cool/Thermal shock test chamber, Salt spray chamber, High temperature aging tester, sand and dust testing machine,tension tester, high and low temperature testing machine , servo computer battery crush tester, mechanical vibration testerBattery washing tester ,battery burning tester and other quality testing instruments. Thanks to several decades of R&D efforts,the company has established itself as a leading provider of testing instruments of the industry, playing a crucial role in the research and development of high-quality and high-value products within the industry.
15+ years experience in test chambers manufacturing, High performance for your projects.
With unmatched quality advantage, a dynamic management team, professional customer services, superb manufacturing techniques and innovative research and development ideas, Guangdong Bell Experiment Equipment Co., Ltd, supported by an international, standard and professional quality policy, is gradually becoming an international brand. Its products are manufactured in consistent with a number of world standards.
