Vertical Horizontal Table High Frequency Electromagnetic and Mechanical Vibration Tester
Ai Si Li (China) Test Equipment Co., Limited- Max Diameter of Workpiece:900mm
- Mass Scope of Workpiece:<900kg
- Type:Vibration Testing Machine
- Maxcapacity:<1000KN
- Accuracy Grade:0.5
- Load Way:Electronic Load
Base Info
- Model NO.:ES-6A
- Loading Method:Dynamic Load
- Display:Digital
- Control:Computer Control
- Weight:500-1000Kg
- Power Source:AC380V
- Oil Cylinder Position:Under
- Rated Acceleration:1000m,S2
- Max Loading:50-4000
- Rated Displacement:15-76(P-P)mm
- Rated Speed(M/S):2.0
- Frequency Range(Hz):3-3500
- Power Supply:380V 50,60Hz
- Transport Package:Standard Wood Case
- Specification:Customized
- Trademark:ASLI
- Origin:China
- HS Code:90312000
- Production Capacity:100 Sets Per Month
Description
Force (N)
Force (N)
Range (Hz)
(p-p)mm
Moving coil(mm)
Application about vibration testing machine:

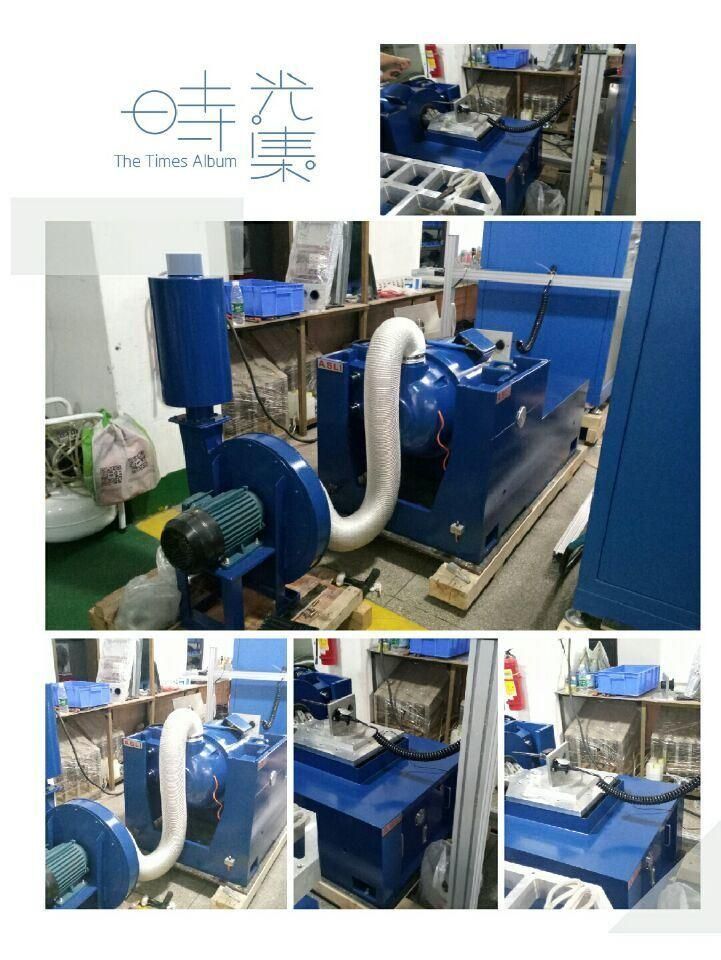

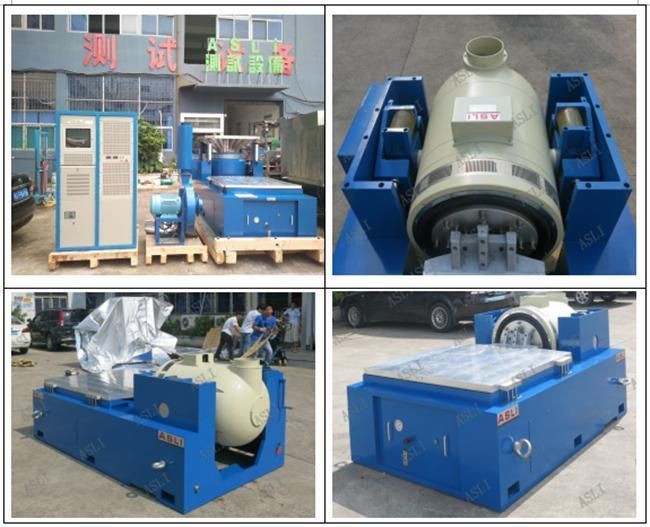

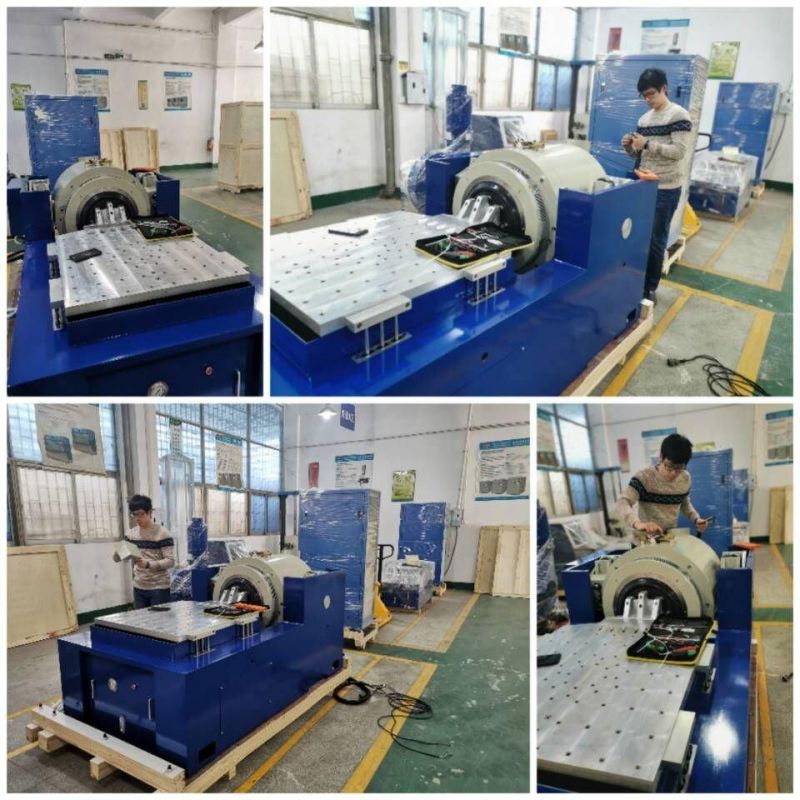

We are manufacturer of Horizontal + Vertical Vibration Vibration High Frequency vibrating table series products, adopted the 'double-magnetic circuit structure',' self-generated skeleton action circles', 'Airborne Support' and 'roller bearings and linear guidance', 'trunnion isolation' advanced modern technology and special technology, can be completed in X,Y,Z three-axis sinusoidal vibration test and broadband random vibration tests, to be completed by the classical (half - sine, trapezoidal, saw tooth wave) pulse and shock response spectrum test. These products are widely used in national defense, weapons, aviation, aerospace, communications, electronics, electrical appliances, communications, home appliances and other fields.
Technical parameters of horizontal expander for high frequency vibration test table:
300×300×26
300×300×30
5-1500
5-2000
7.8
9.0
400×400×26
400×400×30
5-1400
5-2000
13.2
16.0
500×500×30
500×500×35
5-1500
5-2000
23.1
27.0
600×600×30
600×600×40
5-1200
5-2000
33.0
45
700×700×30
700×700×35
5-1000
5-1500
44.2
52
800×800×40
800× 800×45
5-1500
5-2000
76.9
86.5
1000× 1000×40
1000× 1000×50
5-1300
5-1500
118.8
147
1200× 1200×40
1200× 1200×50
5-1100
5-1400
168
210
Horizontal + Vertical Vibration about shock and vibration testing standards Features:
1. Well-designed dynamic circle skeleton, with a higher stage axial resonance frequency.
2. Two-magnetic circuit, magnetic flux leakage low, compact structure and rational.
3. Rocker Rod roller bearings straight and import-oriented composite body stiffness orientation, eccentric load capacity.
4. Trunnion isolation foundation dedicated to hormone use, the installation of mobile convenience.
5. Advanced technology move around the system to ensure that the dynamic circle of high reliability.
6. New duct design and enhance the cooling effect.
7. Static stiffness, dynamic stiffness of the bearing small balloon, raising the vibration table capacity, improve low-frequency performance.
Short introduction about ASLi factory for vibration calibrator price:
We are a long history testing equipment manufacturer, in the past 25 years, we devoted to simulation environmental testing equipment and Mechannical vibration and shock testing machine.HAST Un-Saturated Steam Chamber is our star products, and we had obtained the CE certification for this machine.
If you are also interested in those Best Price vibration testing machine, please contact with us freely ,thank you.
