Intelligent Power Substation Messages Analyzer Digital optical Signal Analyzer
Wuhan GDZX Power Equipment Co., Ltd.- After-sales Service：Provided
- Warranty：1 Year
- Display：multi-touch panel (5.7")
- Power supply：Rechargeable, 11000mAh Li-battery
- Battery continuous voyage ablity：> 6 hours
- Communication interface：USB
Base Info
- Model NO.：ZX-602
- Conforms to standards of：IEC61850-9-1,2,LE,Goose,IEC60044-7,8 FT3,MMS,STNP.
- device size：250*140*44mm
- Net weight：1KG
- Transport Package：Carton
- Specification：Customized
- Trademark：GDZX
- Origin：China
- HS Code：9030849000
- Production Capacity：1200 Pcsyear
Description
ZX-602 Handheld Messages Analyzer can be used for fast test of protection devices, intelligent terminals, merging units and transducers. It is multi-functional with high precision and is essential equipment for installation, debugging, and maintenance of intelligent substation.

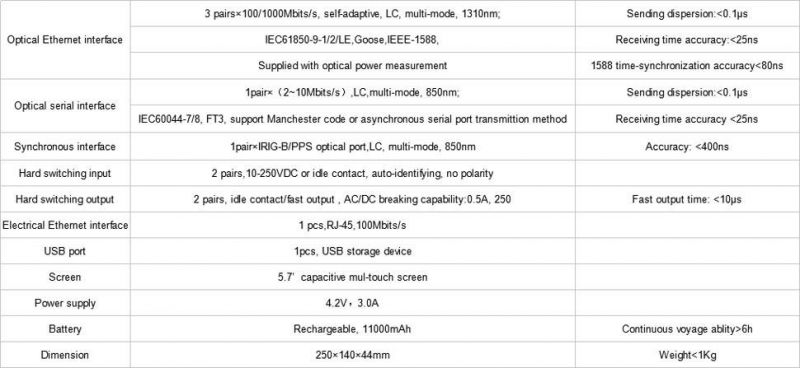

Technical Indicators

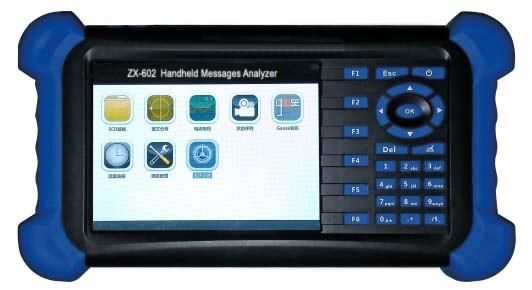

Device display
About GDZX

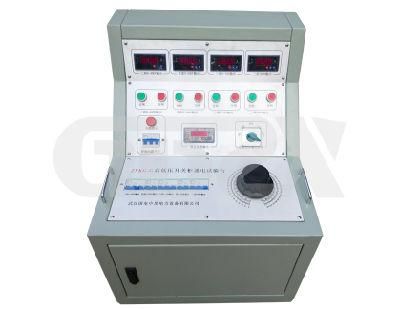

Wuhan GDZX Power Equipment Co.,Ltd. is a manufacturer of power test equipment, integrating design, production and sales, providing complete solutions for high-voltage testing and electrical testing services for various power users.The main products include:AC series resonance test device, high voltage test equipment, transformer test equipment, secondary protection / switch test equipment, cable fault tester, arrester test equipment, power metering equipment, standard source series and so on. There are many kinds of products and complete models.
Shipping and packaging
Features1. Capacitive mul-touch panel (5.7"), built in 11000mAh rechargeable li-battery, the continuous voyage ability over 6 hours
2. With 3 pairs optical Ethernet interface, 1 pair optical serial interface, 1 IRIG-B/PPS synchronous interface, support single-mode fiber connection
3. G-net interface for optical Ethernet interface, 100/1000Mbits/s self-adaptive
4. 2 channel hard switching input contact and 4 channel hard switching output contact, for intelligent terminal response testing
5. Support connection with USB storage device, for data import/export
6. Support IEC61850-9-1/2/LE,Goose,IEC60044-7/8 FT3,MMS,STNP,GRMP,IEEE-1588,IRIG-B,PPS,SCL standards.
7. Multi-functional, can test bay level, process level protection device, merging unit, intelligent terminal, mutual inducors.
8. Graph demonstration of various electrical parameters, direct result reading
9. A9+FPGA dual-core IPC performance, fast operation speed, message sending dispersion <0.1us, receiving time error <25ns
10. Small and portable, simple to use
