0.1 Accuracy Class DC 100A LCD Display Contact Resistance Meter

Wuhan GDZX Power Equipment Co., Ltd.
  • After-sales Service：Provide lifelong after-sales service
  • Warranty：1 Year
  • Measuring range：1-1999uOhm
  • Test current：100A
  • Display：current: three and a half LCD
  • Accuracy：0.1%

Base Info

  • Model NO.：ZXHL-100A
  • Measurement Accuracy：0.5%+,-1d
  • Power Supply：AC220V+,-10%, 50Hz
  • Dimension：300*270*200 mm
  • Weight：5Kg(Accessories excluded)
  • Transport Package：Carton
  • Specification：With the change of technical scheme
  • Trademark：GDZX
  • Origin：China
  • HS Code：9030332000
  • Production Capacity：500PCS,Month

Description

0.1 Accuracy Class DC 100A LCD Display Contact Resistance Meter

ZXHL-100A Contact Resistance Tester measures up to the latest power system standards--DL/T845.4-2004 designed for measuring loop resistance of Switching Control Equipment using High-frequency switching power supply technology and digital circuit technology. Test current of the Tester is DC 100A, which is recommended in the national standards. The tester can measure the loop resistance at this value and display the result in digital.



    0.1 Accuracy Class DC 100A LCD Display Contact Resistance Meter
    Technical Indicators

    1. Measurement Range:1~1999μΩ
    2. Resolution:1μΩ
    3. Test Current:DC 100A
    4. Measurement Accuracy:0.5%±1d
    5. Display:current: three and a half LCD
    6. Power Supply:AC220V±10% 50Hz
    7. Work Environment:1) Temperature: 10ºC~40ºC
    2) Humidity:≤80 %RH
    8. Dimension:300*270*200 mm
    9. Weight:5Kg(Accessories excluded)

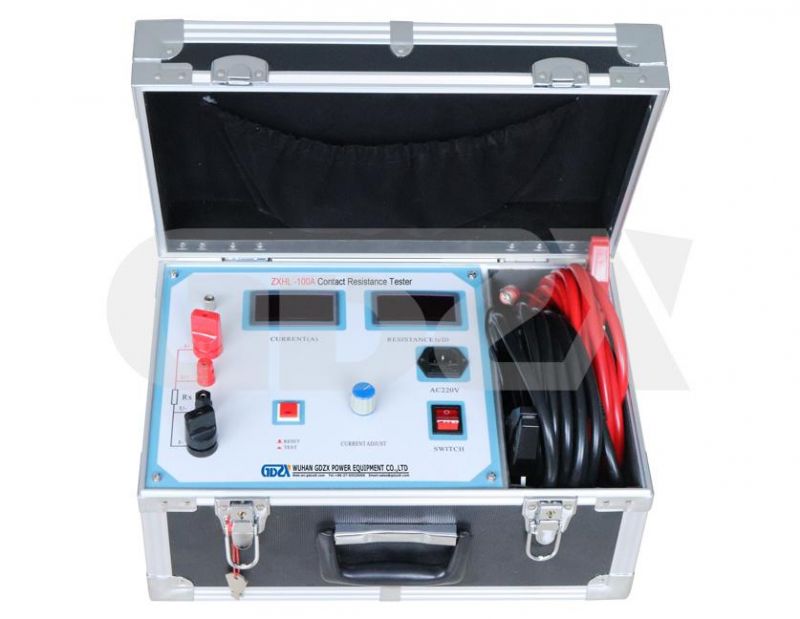

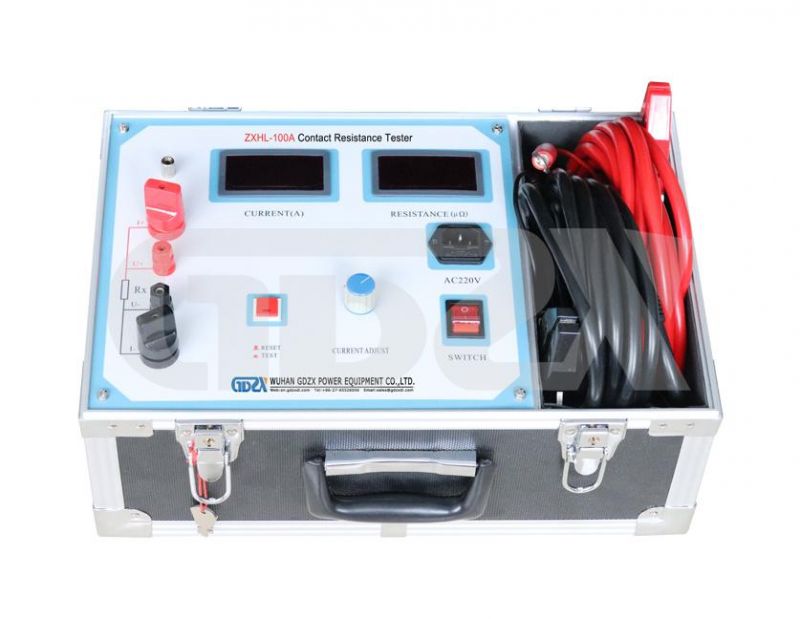

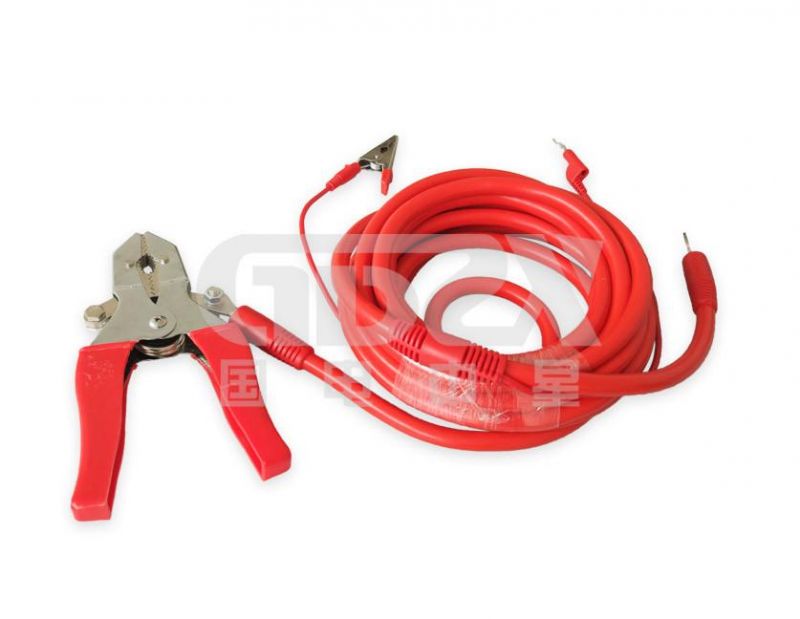

        Product pictures

        0.1 Accuracy Class DC 100A LCD Display Contact Resistance Meter0.1 Accuracy Class DC 100A LCD Display Contact Resistance Meter0.1 Accuracy Class DC 100A LCD Display Contact Resistance Meter0.1 Accuracy Class DC 100A LCD Display Contact Resistance Meter

        Device display
        0.1 Accuracy Class DC 100A LCD Display Contact Resistance Meter        0.1 Accuracy Class DC 100A LCD Display Contact Resistance Meter
        Field Test
        0.1 Accuracy Class DC 100A LCD Display Contact Resistance Meter0.1 Accuracy Class DC 100A LCD Display Contact Resistance Meter
        About GDZX
        Wuhan GDZX Power Equipment Co.,Ltd.is a manufacturer of power test equipment, integrating design, production and sales, providing complete solutions for high-voltage testing and electrical testing services for various power users.The main products include:AC series resonance test device, high voltage test equipment, transformer test equipment, secondary protection / switch test equipment, cable fault tester, arrester test equipment, power metering equipment, standard source series and so on. There are many kinds of products and complete models.
        0.1 Accuracy Class DC 100A LCD Display Contact Resistance Meter
        Shipping and packaging
        0.1 Accuracy Class DC 100A LCD Display Contact Resistance Meter
        Features


        1. High current: For latest power supply technology, the tester can continuously output high current which overcomes the weakness of instantaneous current produced by pulsed power. It can effectively breakdown/puncture the oxide layer of the switches and then get precise results.

        2. Strong anti-interference ability: The last number of test data will stably show in the LCD screen only with ±1 error even in strong Interference situation.

        3. Long service life: all high-precision resistors are used to effectively eliminate the influence of ambient temperature on the measurement results. At the same time, the use of connectors enhances the anti vibration performance.

        4. Convenience: Small size, light weight.
