Automatic Drilling Balancing Machine with Free on-Site Tutorial
Shanghai Jianping Dynamic Balancing Machine Manufacturing Co., Ltd.- Warranty：12 Months
- Max Diameter of Workpiece：<500mm
- Mass Scope of Workpiece：35 Kg
- Type：Balancing Machine
- Maxcapacity：<1000KN
- Accuracy Grade：1
Base Info
- Model NO.：A1LZ1
- Load Way：Electronic Load
- Loading Method：Dynamic Load
- Display：Digital
- Control：Computer Control
- Weight：100-500Kg
- Power Source：AC380V
- Oil Cylinder Position：Under
- Product Name：Automatic Drilling Balancing Machine
- Applicaiton：Disc Shape Rotor Balancing Machine
- Gross Weight：1.5 T
- Certificate：CE,ISO,SGS,BV.
- Supply Power：3-Phase, 380V 50 Hz
- Machine Motor Power：7 Kw
- Balancing Speed：800 R,Min
- Package：Fumigated Wooden Case
- Delivery Time：25 Days
- Transport Package：Packed in Fumigated Wood Box
- Specification：950*1700*2000
- Trademark：JP Balancing machine
- Origin：China Shanghai
- HS Code：9031100090
- Production Capacity：100 Sets,Month
Description
Production Description

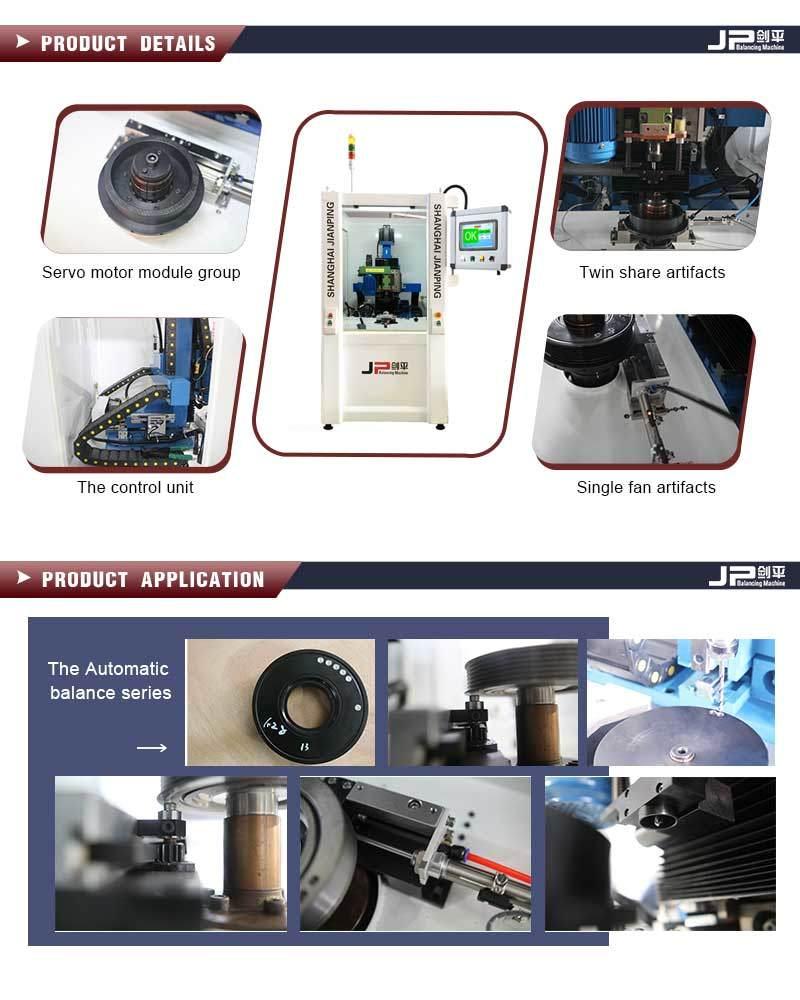

• Manual loading and unloading
•15-inch touch screen
• Advanced balancing measuring software
• Automatic measure,automatic milling and correction,automatic retest
• Rigidity structure design,with a longer use life
Range of Application
Automatc Vertical Balancing Correction Machine A1LZ1 is designed specially for the automatic balancing of disc-shaped parts in one plane,
Automatc Vertical Balancing Correction Machine A1LZ1 with one station is one of the advanced vertical balancing machine of shanghai jianping,the whole balancing task is competely automatically including measuring,indexing,milling correction and checking,A1LZ1 is a good choice to mass produce with short cycle time,high efficiency and high accuracy
