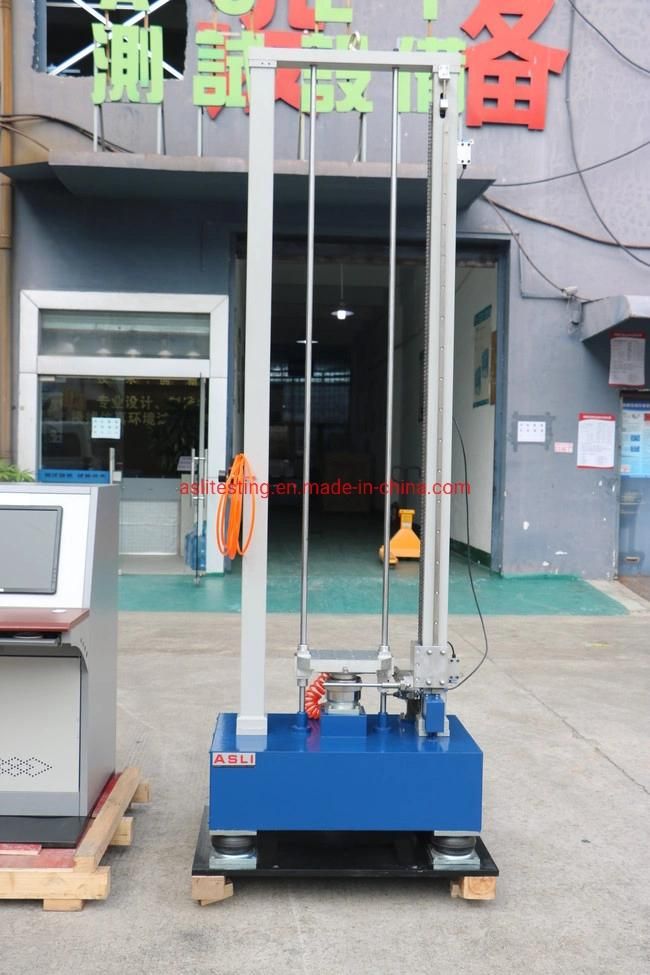

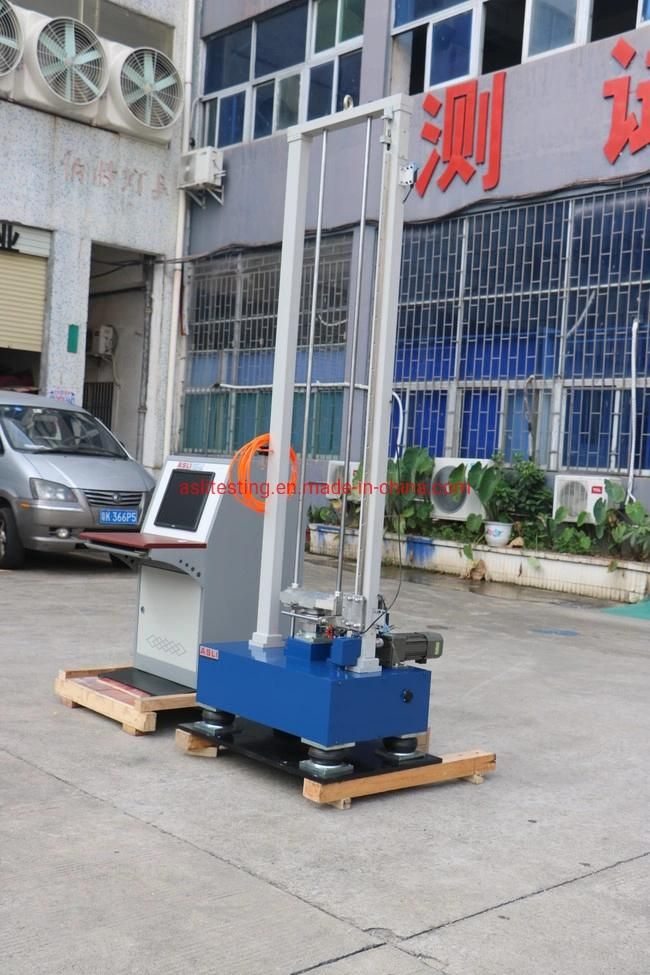

Half Sine Wave Mechanical Acceleration Shock Test Equipment
Ai Si Li (China) Test Equipment Co., Limited- Type：Impact Testing Machine
- Maxcapacity：Customize
- Accuracy Grade：0.001
- Load Way：Mechanical Load
- Loading Method：Dynamic Load
- Display：Digital
Base Info
- Model NO.：SS-5 , SS-10 , SS-25 , SS-50
- Control：Computer Control
- Weight：>2000Kg
- Power Source：AC380V
- Oil Cylinder Position：Under
- Drive Mode：Mechanical Drive; Hydraulic Drive
- Wave：Half Sine
- Pulse Width：0.5~30
- Leading Time：55 Working Days
- Transport Package：Plywood Case
- Specification：CE, ISO
- Trademark：ASLI
- Origin：Guangdong China
- HS Code：85141090
- Production Capacity：300 Set, Year
Description
ModelSS-5 SS-10 SS-25 SS-50 Load Capacity (Kg) 5 10 25 50 Table Size (mm) 120x120 200x200 350x350 450x450 Pulse
Acceleration
(m/s2) Half Sine Wave 150~15000 150~15000 150~15000 150~6000 Trapezoid
Wave 300~1000 300~1000 300~1000 300~1000 Sawtooth
Wave 150~1000 150~1000 150~1000 150~1000 Pulse width Half Sine
Wave 0.5~18 0.6~18 0.8~25 1.5~30 Trapezoid
Wave 6~12 6~12 6~18 6~12 Sawtooth
Wave 6~18 6~18 6~18 6~18 Drive Mode Mechanical drive External Dimension
WxHxD (mm) 800x2200x900 800x2200x900 850x2250x950 1000x2600x1300 Weight (Kg) 600 700 900 2600 Hydraulic Oil No #46 hydraulic oil Power AC 380V 50/60HZ
Mechanical Acceleration Shock Test Equipment Features:
1.Built-in self-protection device, no secondary impact,
2.Shock height controlled by digital
3.Good repeatability test data
4.Signal generator provides a variety of choice: half sine wave, trapezoidal wave, sawtooth wave, square wave, etc.
5.Good vibration isolation performance, impact on the environment can control within the scope of the r
equirements:
6.Good Safety performance.
7.Conform to the IEC, MIL, GJB, JIS, ASTM and other international and domestic standard shock waves
Packing Detail:
After-sale service: feedback within 8 hours after get the call or email.
Service:OEM service,Design service,Buyer lable service.
If you want to learn more Half Sine Wave Mechanical Acceleration Shock Test Equipment knowledge, welcome to contact us at any time.
