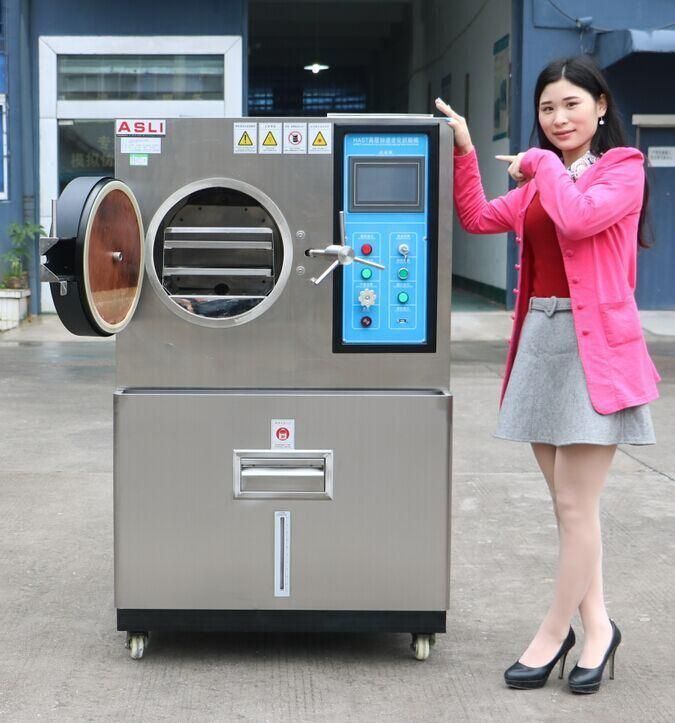

Hast Highly Accelerated Stress Test System/Pressure Testing Chamber
Ai Si Li (China) Test Equipment Co., Limited- After-sales Service：Lifelong Technical Service Support
- Power Supply：AC380V
- Certification：CE, TUV, ISO
- Warranty：1 Year
- Model：Hast Series
- Temperature Range：100~135 Degree
Base Info
- Model NO.：HAST-35 , HAST-45 , HAST-55
- Humidity Range：70~100%R.H.
- Powder：AC220V 20A , AC220V 15A
- Steam Pressure：101.3kpa +0.0kg,Cm2 ~ 2.0kg,Cm2
- Application：PCB
- Transport Package：Plywood Case
- Specification：CE, ISO
- Trademark：ASLi
- Origin：Guangdong, China
- HS Code：85141090
- Production Capacity：30 Sets,Month
Description
Overview
Product Description
------Independent control of temperature, humidity and pressure
Application:
Hast Highly Accelerated Stress Test System is widely applied to the testing of sealing property for multi layer circuit board, IC sealing package, LCD screen, LED, semi-conductor, magnetic materials, NdFeB, rare earths and magnet iron, in which the resistance to pressure and air tightness for
above mentioned products can be tested out.
Product ParametersHast Highly Accelerated Stress Test System Technical Parameters Model HAST - 25 HAST - 35 HAST - 45 HAST - 55 HAST - 65 Internal Dimension
Φ*D (mm) 300*250 350*450 450*550 550*650 650*750 External Dimension
Φ*D (mm) 850*1300*900 900*1350*900 1000*1480*1000 1150*1650*1200 1300*1800*1350 Steam Temperature
Range Steam Temperature Range: 100degree C~135degree C, (143degree C is optional) Relative Pressure/
Absolute Pressure Relative pressure: display values indicated on the pressure gauge
Absolute pressure: pressure gauge value adds 100 Kpa (The actual value in the inner
box) Comparison Table
Temperature, Humidity
, Pressure Steam Humidity 70~100%R.H. steam humidity adjustable Steam Pressure
Absolute Pressure) 101.3Kpa +0.0Kg/cm2 ~ 2.0Kg/cm2 ; (3.0Kg/cm2 is special standard) Recursive Device Steam in forced-circulation Safety Protective Device Water short storage protect, over pressure protect.(have automatically/manual water
replenishing, automatically discharge pressure function ) Accessories Two layers stainless steel plate Equipment Capacity(L) 17 43 87 155 250 Power AC 220V(±10%), 1phase 3 Lines ,50/60HZ; AC 380 V(±10%) ,3phase 5 Lines,50/60HZ
Hast Highly Accelerated Stress Test System Features:
1.Automatic adding water function, and automatic filling water upon the water short storage while testing.
2.Automatic operation to test process finished, easy to use.
3.Temperature control: LED digital temperature controller can make accurate testing of temperature setting, control and display.
4. LED digital timer, when the inner box's temperature reached the setting value, then start to time to ensure the test complete.
5.Accurate pressure: temperature chart always shows the inner box's pressure and relative humidity.
6.Water device is automatically discharge not saturated steam in order to achieve the best steam quality.
7.A integrated silica gel door gasket, air tightness is very good, and long operation life.
8.The inner box is mirror-polished , graceful and non-pollution

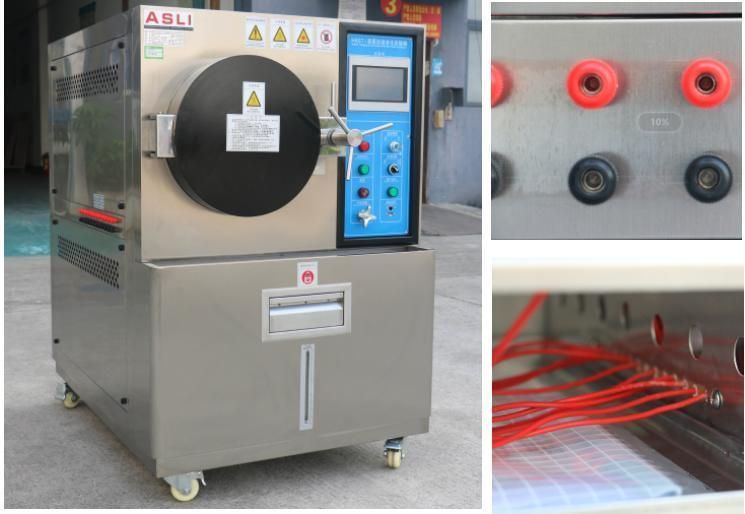

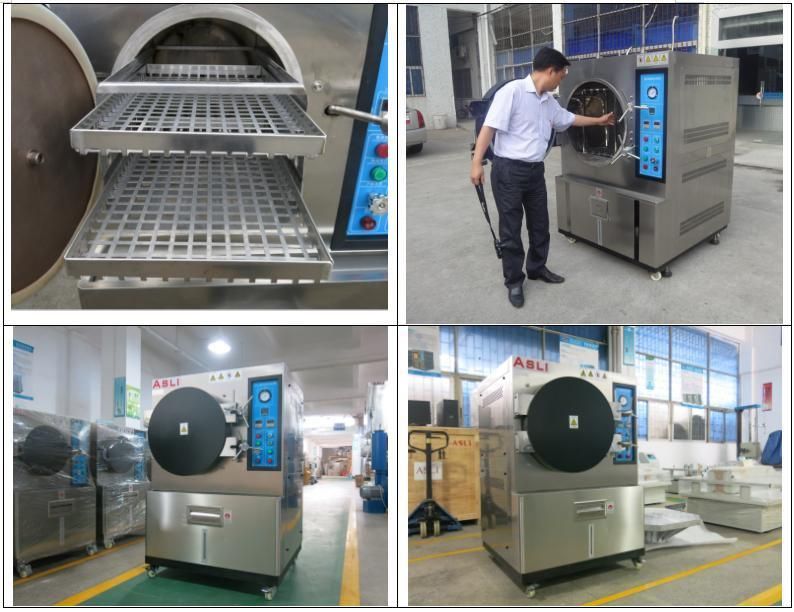

Detailed Photos
For the package:
1. PP film first
2. Vacuum package
3. PP film again
4. 10mm thickness PU foam to avoid collision
5. stronged plywood case
6. Standard ASLI CASE MARK
ASLi main test equipments:
Environmental chambers, temperature (humidity) chamber,Thermal shock chamber, PCT /Hast chamber (Highly accelerated stress test chamber),ESS chamber, Walk in stability chamber,Vacuum oven,electrodynamic vibration shaker,mechanical shock tester,environmental combined vibration chamber,etc

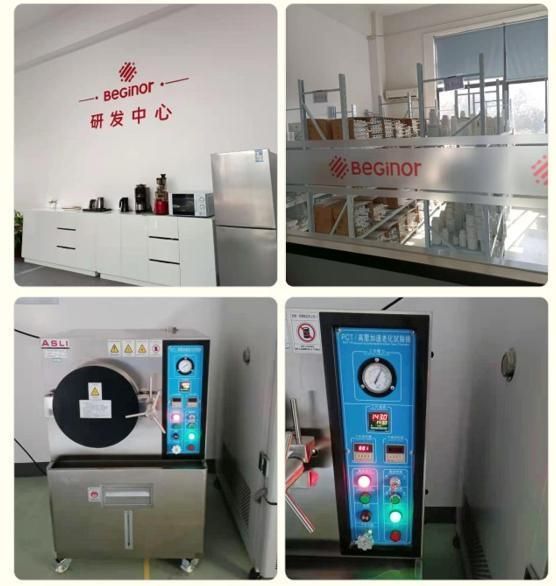

ASLI Machine at Customer's Factory:
------the internal size can be customized
------70~100%R.H. steam humidity adjustable------Independent control of temperature, humidity and pressure
Application:
Hast Highly Accelerated Stress Test System is widely applied to the testing of sealing property for multi layer circuit board, IC sealing package, LCD screen, LED, semi-conductor, magnetic materials, NdFeB, rare earths and magnet iron, in which the resistance to pressure and air tightness for
above mentioned products can be tested out.
Product ParametersHast Highly Accelerated Stress Test System Technical Parameters Φ*D (mm)
Φ*D (mm)
Range
Absolute Pressure
Absolute pressure: pressure gauge value adds 100 Kpa (The actual value in the inner
box)
Temperature, Humidity
, Pressure
Absolute Pressure)
replenishing, automatically discharge pressure function )
Hast Highly Accelerated Stress Test System Features:
1.Automatic adding water function, and automatic filling water upon the water short storage while testing.
2.Automatic operation to test process finished, easy to use.
3.Temperature control: LED digital temperature controller can make accurate testing of temperature setting, control and display.
4. LED digital timer, when the inner box's temperature reached the setting value, then start to time to ensure the test complete.
5.Accurate pressure: temperature chart always shows the inner box's pressure and relative humidity.
6.Water device is automatically discharge not saturated steam in order to achieve the best steam quality.
7.A integrated silica gel door gasket, air tightness is very good, and long operation life.
8.The inner box is mirror-polished , graceful and non-pollution
Detailed Photos
For the package:
1. PP film first
2. Vacuum package
3. PP film again
4. 10mm thickness PU foam to avoid collision
5. stronged plywood case
6. Standard ASLI CASE MARK
ASLi main test equipments:
Environmental chambers, temperature (humidity) chamber,Thermal shock chamber, PCT /Hast chamber (Highly accelerated stress test chamber),ESS chamber, Walk in stability chamber,Vacuum oven,electrodynamic vibration shaker,mechanical shock tester,environmental combined vibration chamber,etc
ASLI Machine at Customer's Factory:
