• Model NO.：HAST
• Control：Computer Control
• Weight：100-500Kg
• Power Source：According to The Machine
• Oil Cylinder Position：Customized
• Product Name：Aging Tests
• Usage：Accelerated Aging Testing
• Size：According Our Standard Size or Customized
• Steam Humidity：70~100%R.H. Steam Humidity Adjustable
• Recursive Device：Steam in Forced-Circulation
• Material：Two Layers Stainless Steel Plate
• Export Markets：Global
• Service：OEM Service,Design Service
• Delivery：15 Days-25days
• Transport Package：Safty Packing
• Specification：CE approval
• Trademark：ASLi
• Origin：China
• HS Code：85141090
• Production Capacity：10000PCS, Month

Internal Dimension
Φ×D (mm)300×250350×450450×550550×650650×750External Dimension
 Φ×D (mm)850×1300×900900×1350×9001000×1480×10001150×1650×12001300×1800×1350Steam Temperature Range  Steam Temperature Range: 100ºC~135ºC, (143ºC is optional)   Relative Pressure/
Absolute Pressure Relative pressure:  display values  indicated on the  pressure gauge
Absolute pressure: Value that add 100 Kpa based on display values indicated on the  pressure gauge

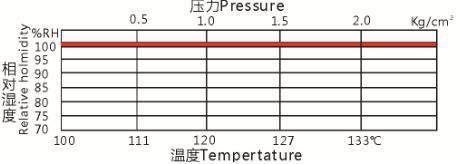

(The actual value in the inner box)Comparison Table of
Temperature, Humidity,
Pressure Steam Humidity 70~100%R.H. steam humidity adjustableSteam Pressure
(Absolute Pressure)101.3Kpa +0.0Kg/cm2~2.0Kg/cm2 ; (3.0Kg/cm2  is special standard)Recursive Device Steam in forced-circulationSafety Protective DeviseWater short storage protect, over pressure protect.(have automatically/manual water replenishing, automatically discharge pressure function ) AccessoriesTwo layers  stainless steel plateEquipment Capacity(L)174387155250PowderAC220V, 1& 3  Lines ,50/60HZ;    AC380V ,3& 5 Lines,50/60HZ


Application:
(HAST)Highly accelerated stress test chamber is widely applied to the testing of sealing property for multi-layer circuit board, IC sealing package, LCD screen, LED, semi-conductor, magnetic materials, NdFeB, rare earths and magnet iron, in which the resistance to pressure and air tightness for above mentioned products can be tested out.

Features:
1.  1.Automatic adding water function, and automatic filling water upon the water short storage while testing.
2.Automatic operation to test process finished, easy to use.
3.Temperature control: LED digital temperature controller can make accurate testing of temperature setting, control and display.
4. LED digital timer, when the inner box's temperature reached the setting value, then start to time to ensure the test complete.
5.Accurate pressure: temperature chart always shows the inner box's pressure and relative humidity.
6.Water device is automatically discharge not saturated steam in order to achieve the best steam quality.
7.A integrated silica gel door gasket, air tightness is very good, and long operation life.
8.The inner box is mirror-polished , graceful and non-pollution

Our other products:
Environmental chambers, temperature (humidity) chamber, PCT /Hast chamber (Highly accelerated stress test chamber),ESS chamber, Walk in stability chamber,Vacuum oven,Altitude chamber,vibration test system, mechanical shock tester,environmental combined vibration chamber,etc

Our Service:
Warranty: one year free warranty for whole set machine,lifelong time maintainance.
After-sale service: feedback within 8 hours after get the call or email.
Service:OEM service,Design service,Buyer lable service.
