Lab High Frequency Electrodynamic Shaker System Vibration Testing Equipment
Ai Si Li (China) Test Equipment Co., Limited- After-sales Service:Lifelong Technical Service Support
- Warranty:1 Year
- Type:Vibration Testing Machine
- Maxcapacity:<1000KN
- Accuracy Grade:0.5
- Load Way:Electronic Load
Base Info
- Model NO.:ES SERIES
- Loading Method:Dynamic Load
- Display:Digital
- Control:Computer Control
- Weight:500-1000Kg
- Power Source:AC380V
- Power:Electronic
- Usage:Vibration Testing Machine
- Vibration Direction:Vertical, Horizontal or X, Y, Z Three Direction
- Size:Customzied
- Vibration Force:6kn
- Acceleration:100g
- Test Standard:Mil Std 810f
- Transport Package:Standard Export Wooden Case, Standard Wooden Case
- Specification:Customized
- Trademark:ASLi
- Origin:China
- HS Code:84549022
- Production Capacity:30 Sets , Month
Description
Basic Info.
Model NO. ES SERIES Loading Method Dynamic Load Display Digital Control Computer Control Weight 500-1000Kg Power Source AC380V Power Electronic Usage Vibration Testing Machine Vibration Direction Vertical, Horizontal or X, Y, Z Three Direction Size Customzied Vibration Force 6kn Acceleration 100g Test Standard Mil Std 810f Transport Package Standard Export Wooden Case, Standard Wooden Case Specification Customized Trademark ASLi Origin China HS Code 84549022 Production Capacity 30 Sets / MonthProduct Description
Long history manufacturer (28 years)OEM available
High cost-effective Lab high frequency Electrodynamic Shaker system Vibration Test equipment is used to educational, research, and laboratory environments. Structural response testing, Modal analysis, separation and compacting of powders, small component vibration screening, Vibration transducer calibration and so on.
Model | Rated Sine Force (N) | Rated Random Force (N) | Frequency Range (Hz) | Rated Acceleration (m/s 2 ) | Rated Speed(m/s) | Rated Replacement (p-p)mm | Max. Loading (Kg) | moving coil (Kg) | Dimension of Moving coil(mm) |
ES 1 | 1000 | 1000 | 3-3500 | 400 | 1.2 | 25 | 70 | 2.5 | Φ 150 |
ES 2 | 2000 | 2000 | 3-3500 | 800 | 1.6 | 25 | 70 | 2.5 | Φ 150 |
ES 2a | 2000 | 2000 | 3-3500 | 300 | 1.6 | 40 | 70 | 8 | Φ 230 |
ES 3 | 3000 | 3000 | 3-3500 | 1000 | 1.6 | 25 | 100 | 3.5 | Φ 150 |
ES 3a | 3000 | 3000 | 3-3500 | 400 | 1.6 | 40 | 120 | 9 | Φ 230 |
ES 6 | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ 230 |
ES 6a | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ 230 |
ES 10 | 10000 | 10000 | 3-3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ 240 |
ES 20 | 20000 | 20000 | 3-3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ 320 |
ES 30 | 30000 | 30000 | 3-2800 | 1000 | 1.8 | 5l | 450 | 40 | Φ 450 |
ES 40 | 40000 | 40000 | 3-2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ 450 |
ES 50 | 50000 | 50000 | 3-2700 | 1000 | 1.8 | 51 | 750 | 50 | Φ 450 |
ES 60 | 60000 | 60000 | 3-2700 | 1000 | 1.8 | 51 | 750 | 60 | Φ 450 |
ES 100 | 100000 | 100000 | 3-2500 | 1000 | 1.8 | 51 | 1000 | 90 | Φ 450 |
ES 120 | 120000 | 120000 | 3-2200 | 1000 | 1.8 | 51 | 1100 | 90 | Φ 500 |
ES 160 | 160000 | 160000 | 3-2100 | 1000 | 1.8 | 51 | 1500 | 150 | Φ 600 |
ES 200 | 200000 | 200000 | 3-2000 | 1000 | 1.8 | 51 | 2500 | 200 | Φ 650 |
ES 350 | 350000 | 350000 | 3-1700 | 1000 | 1.8 | 51 | 4500 | 300 | Φ 870 |
Lab high frequency Electrodynamic Shaker system Vibration Testing equipment feature:
1. Well-designed dynamic circle skeleton, with a higher stage axial resonance frequency.
2. Two-magnetic circuit, magnetic flux leakage low, compact structure and rational.
3. Rocker Rod roller bearings straight and import-oriented composite body stiffness orientation, eccentric load capacity.
4. Trunnion isolation foundation dedicated to hormone use, the installation of mobile convenience.
5. Advanced technology move around the system to ensure that the dynamic circle of high reliability.
6. New duct design and enhance the cooling effect.
7. Static stiffness, dynamic stiffness of the bearing small balloon, raising the vibration table bearing capacity, improve low-frequency performance.
Horizontal Stand features:
Within small loading bench to realize higher acceleration and working frequency, to improve the loading capacity and performance of whole machine bench.
Horizontal bench and vibration bench are integral type, with perfect structure, convenience to install and adjust.
Static pressure track, V-shape, with capacity of slope-resistant and bias-loading resistant.
Built-in oil pump, good structure and easy operating.

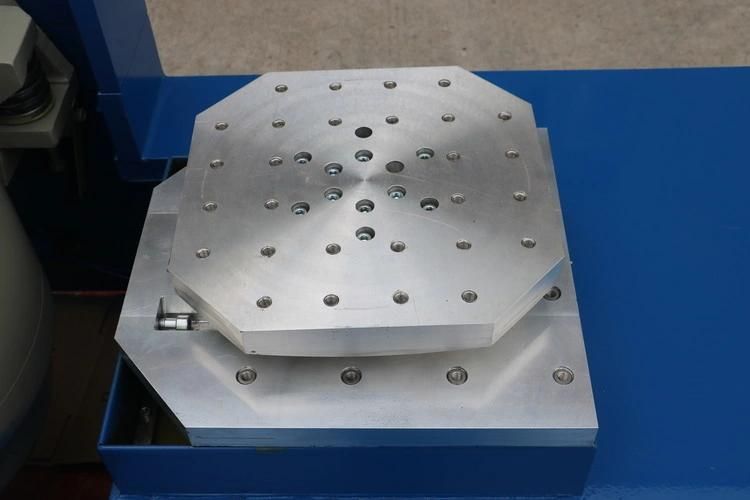

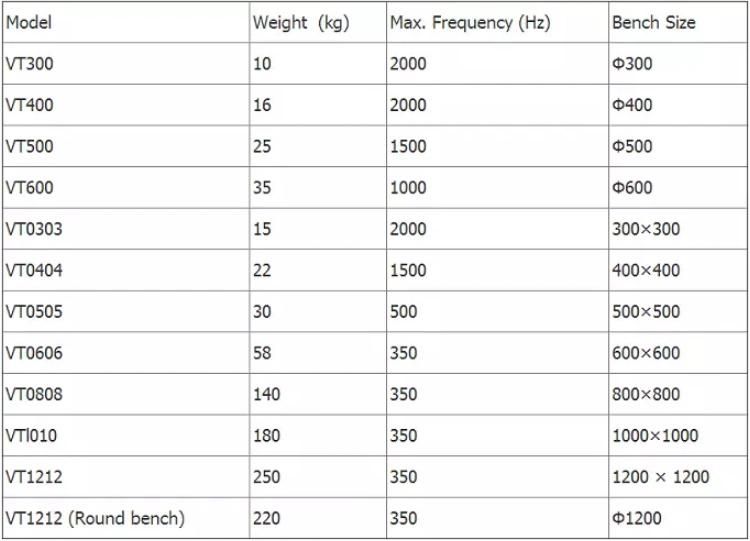

Vertical Extended-bench features:
VT vertical extended-bench and specified clamps, precision calculated, elaborate design, to ensure the customer acquired the best performance according to perfect Structure, high quality material and workmanship.

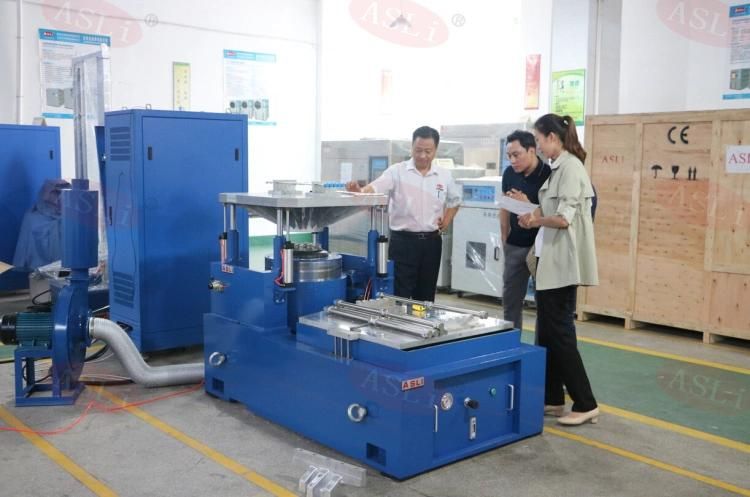

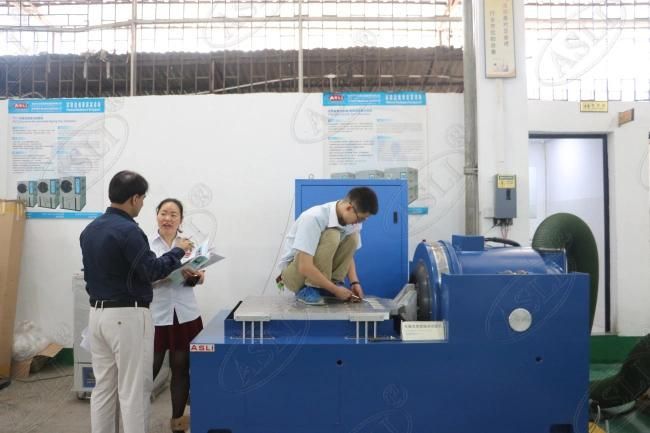

Customers visit ASLI:
