• Model NO.：SS3302
• Power Source：DC 100V-300V
• Weight：0-10Kg
• Installation：Direct Connected
• Customized：Non-Customized
• L, L. K：0.00001uh ~ 9999.99h
• C：0.00001PF ~ 999.999mf
• Q, D：0.00001 ~ 99999
• Y：0.01ns ~ 99.9999s
• Transport Package：Paper Box
• Specification：SS3302
• Trademark：SanShine
• Origin：China
• Production Capacity：6000sets,Year

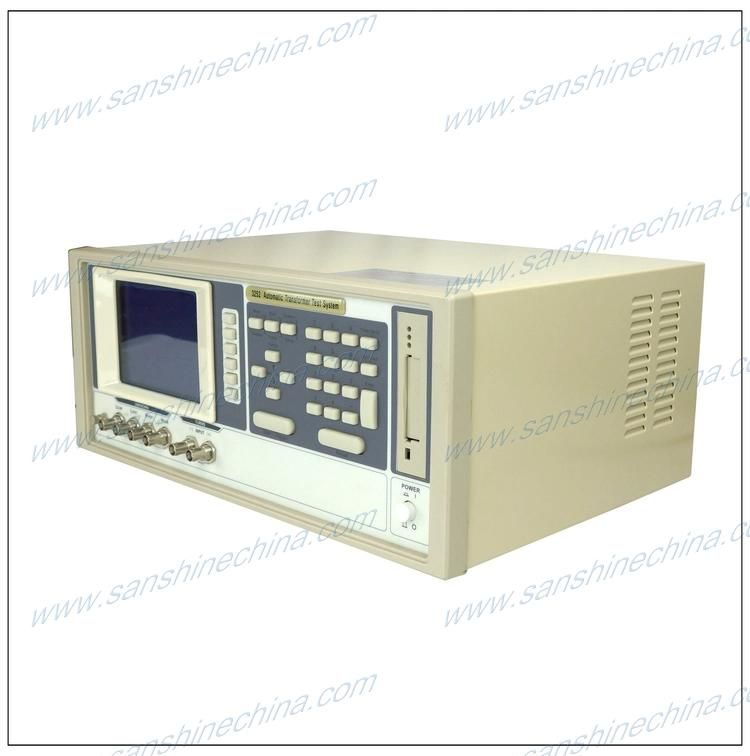

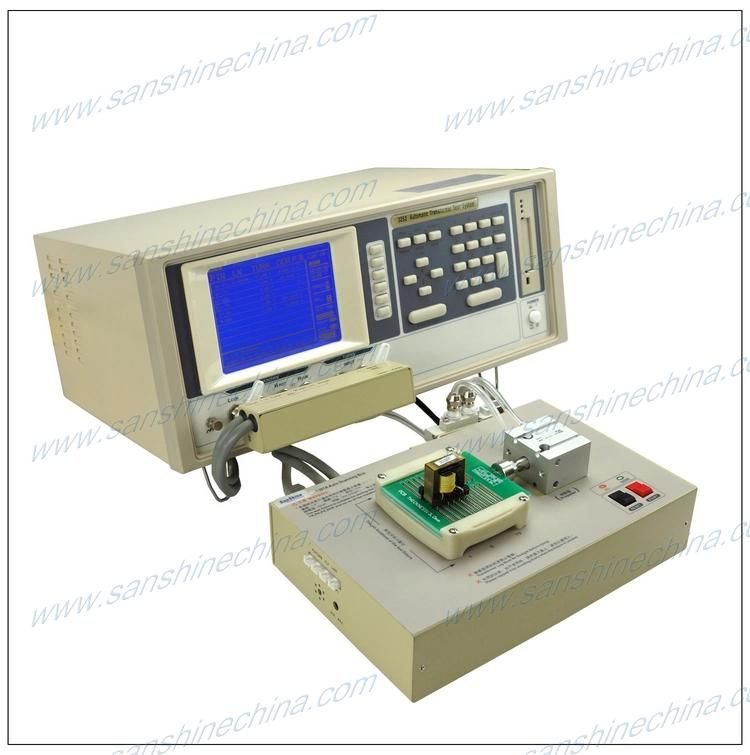

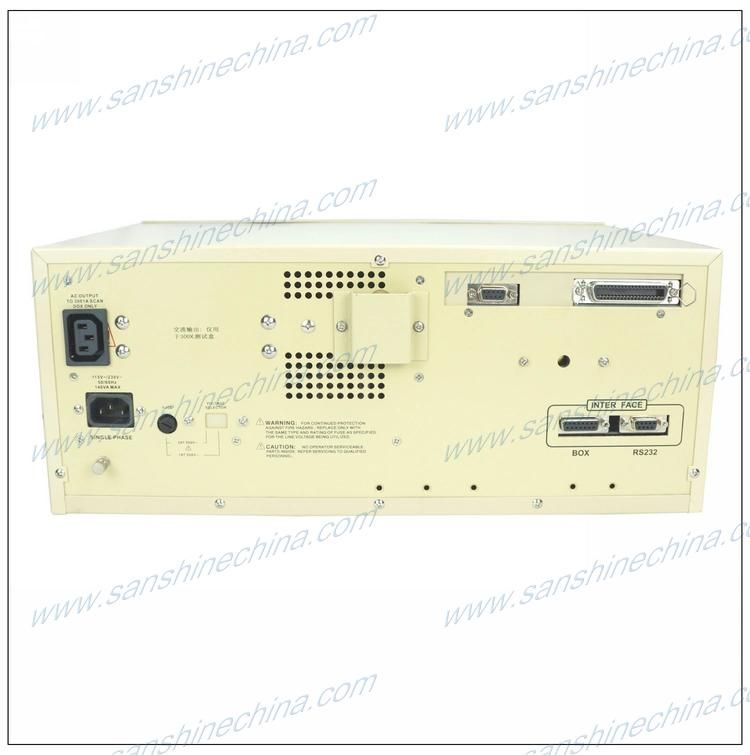

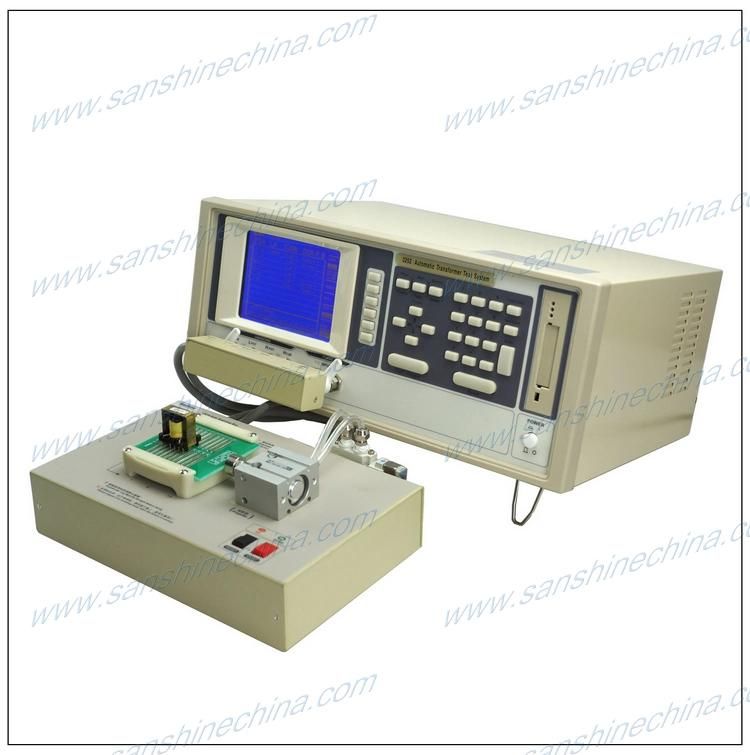

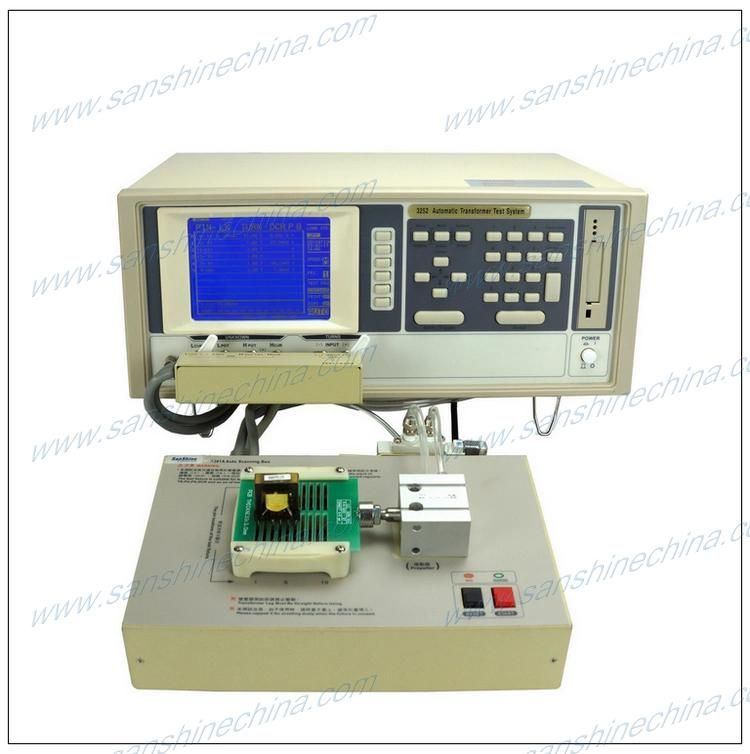

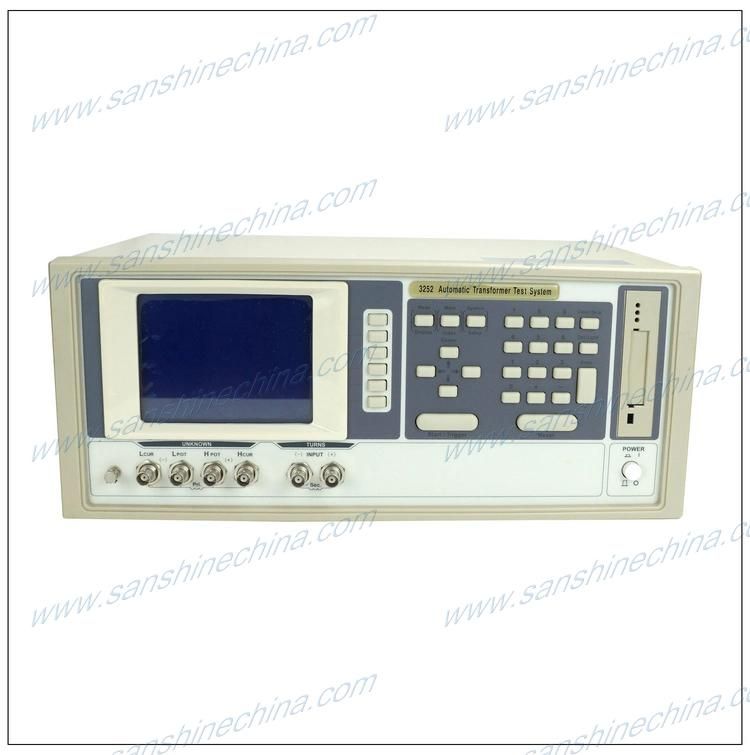

 Automatic common inductor balance tester




Product Description

transformer Auto. analyzer
 transformer Auto. analyzer + LCR meter
 Analyse parameter
 Transformer Auto. Meas.
 Turn ratio, Phase, Turn, L, Q, L. K, Balance, ACR, Cp, DCR, Pin short.
 LCR Meas.
 General L, C, R, DCR
 L, C, R, Z, Y, DCR, Q, D, R, X, θ
 Meas. Signal
 Meas. Level
 Turn
 10mV~10V, ± 10%, 10mV/Step
 Other
 10mV~2V, ± 10%, 10mV/Step
 Meas. Frequency
 Turn
 3250, 3252: 1KHZ ~ 200KHZ, ± 0.02%
 3302: 1KHZ~1MHZ ± 0.02%, Min. display: 0.01HZ
 other
 3250, 3252: 20HZ ~ 200KHZ, ± 0.02%
 3302: 20HZ~1MHZ ± 0.02%, Min. display: 0.01HZ
 Out impendance
 Turn
 10Ω , Meas. level≤ 2V
 50Ω , Meas. level > 2V
 Other
 Constant=OFF: according to resistance value range to be
 Constant=320X: 100Ω ± 0.5%
 Constant=107X: 25Ω ± 0.5%
 Constant=106X: 50Ω   100mA± 0.5%(setup 1V )
 inductance load < 10Ω , 10Ω ± 10%, impedance≥ 10Ω
 Meas. Display range
 L, L. K
 0.00001uH ~ 9999.99H
      0.00001pF ~ 999.999mFC
 0.00001pF ~ 999.999mF
 Q, D
 0.00001 ~ 99999
 Z, X, R
 0.00001Ω ~ 99.9999MΩ
 Y
 0.01nS ~ 99.9999S
 θ
 -90.00 ~ +90.00
 DCR
 0.01mΩ ~ 99.9999MΩ
 Turn
 0.01 ~ 99999.99T(S windings voltage < 100Vrms)
 Pin - Short
 11 windings, pin and pin
 Base accuracy
 L, L. K, C, Z, X, Y, R, DCR
 0.1% (AC parameter 1KHZ )
 Q, D
 0.0005 (1KHZ )
 θ
 0.03° (1KHZ )
 Turn
 0.5% (1KHZ )
 Meas. speed (fast )
 L, L. K, C, Z, X, Y, R, Q, D, θ
 80Meas. /S
 DCR
 50Meas. /S
 Turn
 10Meas. /S
 Judgement way
 Transformer Auto. Meas.
 the judgement of all parameters of NG or good which be output by ordered processor.
 LCR Meas.
 parameters be displayed.
 10 levels sorting and total No. be output by ordered processor. The judgement of parameter of good or NG be output by standard processor.
 Displayer revising function
 320*240 points LCD displayer
 Open / Short, load revising
 Memory
 50 groups setup, can be extended by memory card.
 Equivalent circuit model
 series, parallel
 Trigger
 inner, manual, external
 Common Spec.
 Environment
 10º C ~ 40º C, 10% ~ 90%RH
 Power consuming
 Max. 140W
 Power
 90 ~ 125V AC or190~250V AC   48HZ~62HZ
 Weight
   8.5KG
 Meas. (W× H× L )
 430× 180× 320mm
