• Power：220V,50Hz
• Measurement Range：30mA-5000mA,0mv-5000mv
• Current Accuracy：+,-(0.1%Rd+0.1%Fd)
• Resolution：1mA,1mv
• Local Services：Available
• Cetification：CE
• Transport Package：Wooden Box
• Specification：5V 3A,5A
• Trademark：TWSL
• Origin：Shenzhen, Guangdong. China
• HS Code：9031809090
• Production Capacity：100set,Month

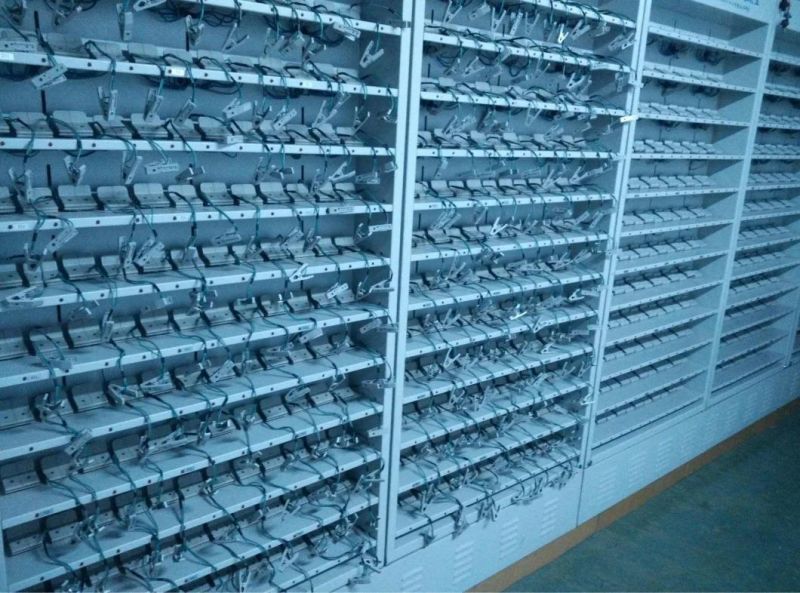

Battery Charging and Discharging Machine 256 Channel 5V 2A



256 Channel 5V 3A256 Channel 5V 5A256 Channel 5V 6A 512 Channel 5V 2A



512 Channel 5V 3A512 Channel 5V 5A512 Channel 5V 6A



Specifications

Number of device channels

512 (Single CPU control)

Constant current range

(0.05 ~ 2A/3A/5A/6A), resolution 1mA

Accuracy of current measurement

±0.1%FS

Sampling current accuracy

±0.1%FS

Voltage measurement range

0 ~ 5V, resolution 1mV

Accuracy of voltage measurement

±0.1%FS

Charging and discharging voltage range

Charging: 0 ~ 4.5V, discharging: 4.5 ~ 2V

Constant voltage setting range

3 ~4.5V

Accuracy of constant pressure setting

±0.1%FS

Time range

0-30000 min / step, accuracy: ± 0.1%

Heat dissipation mode

Cold wind

Battery Clamp

Cylinder clamp, polymer clamp

Work loop source

Temperature: 0 ~ 40 ºC,

relative temperature ≤ 85%

(no water condensation)

External size

1600mm (W) × 550mm (L) × 1840mm (H)

Working power supply

Three phase four wire system,

AC380V ± 150%, 50Hz

Power consumption at full load

≤19KW

Minimum configuration of computer system:



1. Dual core CPU or above,

2. 4G or above memory,

3. 500GB or above hard disk space,

4. EGA / VGA color display, one CD-ROM, one mouse

5. Windows XP or above operating system, one 6. RS232 serial communication port available.

7.The computer system shall be self configured by the user, and the number of the computer system shall be determined according to the actual needs.

General equipment configuration and standards

1. Appearance color of equipment,

Case: silver white,

Cabinet: silver white.

2. Attach the Chinese operation manual and software U disk.



 Hot Tags: 512 channel battery testing machine, suppliers, manufacturers, factory, customized, price, discount, for sale, cylindrical battery production machine, battery electrode coating machine, Cylindrical Cell Production Machine Plant, battery vacuum sealing machine, Hydraulic Press Mold, battery case shaping machine



Show Time:

Packaging & Shipping
*Be Packed by Wooden Box
*Lead Time: Standard Machine: 7 working days after we received your battery pack samples.
                      Customized Machine: 30-45 days


Payment Method
T/T,
30% or 50% deposit or full payment, it depends

Our Service
Pre-sales
1) Inquiry and consulting support. All will be replied in 12 hours.
2) View our Factory and testing the machine, demonstrate how the machine work.

After-Sales
1) Training your workers how to install the machine, how to use the machine.
2) Engineers available to service machinery overseas
3) 1-year guarantee ( free maintain in a year)
4) Replacement parts and other accessories provided

Company Information


Shenzhen TWSL AITOP  Intelligent Equipment Co., Ltd. is a 12-year expert in factory automatic production machines. Our main products are used in manufacturers of batteries for power bank, laptops and cell phones. Besides the batteries pack & spot welding, we also supply low pressure injection machines at all kinds of customers' requests. With our machines, global factories can speed up their production rates and greatly enhance their business expanding efficiency. We can give advices about how to open your own factories. So far we have 8 engineers and 2000 square meters workshop. We can help you to build your own factory and expand your business! Any interests, please feel free to contact us!



Welcome to view our machines video on Youtube:

mask machine :https://twslbatterymachine.en.made-in-china.com
battery pack line :https://youtu.be/EgqrT5EA3ag
+86-
18098919495
Shenzhen TWSL Intelligent Equipment Co., Ltd.


For successful cases,
we recommend:
In China: Like SCUD, Desay, UTEK, LISHEN, GREAT POWER, SUNWOOD, LARGE, TIANNENG Battery, SUMEC.etc.
In India, like INTEX,  ICCON, LIVGUARD, AXIOM, Fusion Power, Ambrane. I.E.,  RX infotech, Greenway, ADIT,  etc,
In US: Like Holley, MSD,
Others country customers, like Germany Varta, Korea Chience, PowerCraft, etc.





FAQ

Q: What can your machines do?

A: Make the batteries production automatically.

    Save the factory owner's invest and better the efficiency.



Q: What kind of items can your machines produce?

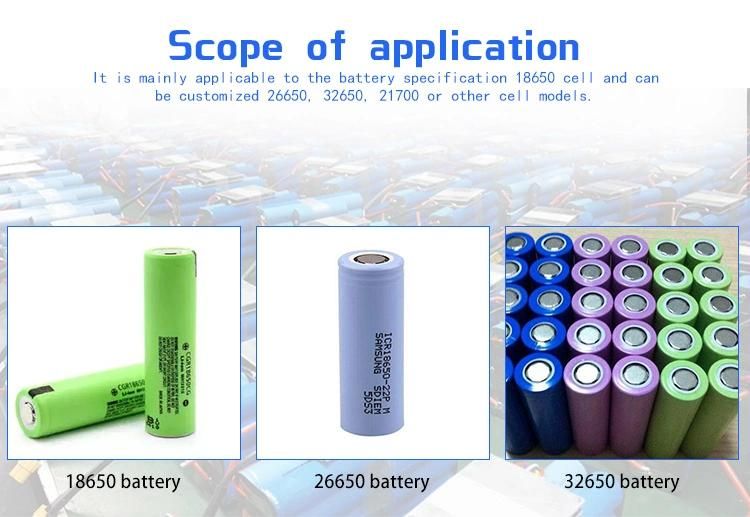

A: Our machines can be used to produce batteries for Power Bank, Laptops, Cell Phones and Ebikes, etc.



Q: How can I see samples or know more about the machines?

A: We have real time video on Youtube.

    Please contact our sales to get the links.

    Indian friends can visit our New Delhi sales office and see the machine by yourselves.



Q: What's the trade terms?

A: FOB or EXW



Q: Do you have any warranty or certifications?

A: We provide 12 months warranty for the machine, and life-time after-sales maintenance.

    All of our products are with CE certifications and are good to export worldwide.



Q: I am a new factory owner. Can I get some advices about automatic production?

A: You can tell us the ideal turn-over you want for your new factories.

    Our professional engineers and sales shall provide you with budget and costs how much it takes.
