• Model NO.：YT-H4E
• Power Source：AC220V
• Power Supply：AC (100~240)V
• Measuring Range：0-5mm
• Resolution：0.001 mm
• Communication Interface：RS232 Interface
• Print：Built-in Thermal Printer
• Dimension：320(L)*310(W)*400(H)mm
• Net Weight：26.5kg
• Transport Package：Wooden Box
• Trademark：YANTE
• Origin：Hangzhou China
• HS Code：9031809090

Basic Info.

Model NO. YT-H4E Power Source AC220V Power Supply AC (100~240)V Measuring Range 0-5mm Resolution 0.001 mm Communication Interface RS232 Interface Print Built-in Thermal Printer Dimension 320(L)*310(W)*400(H)mm Net Weight 26.5kg Transport Package Wooden Box Trademark YANTE Origin Hangzhou China HS Code 9031809090

Product Description

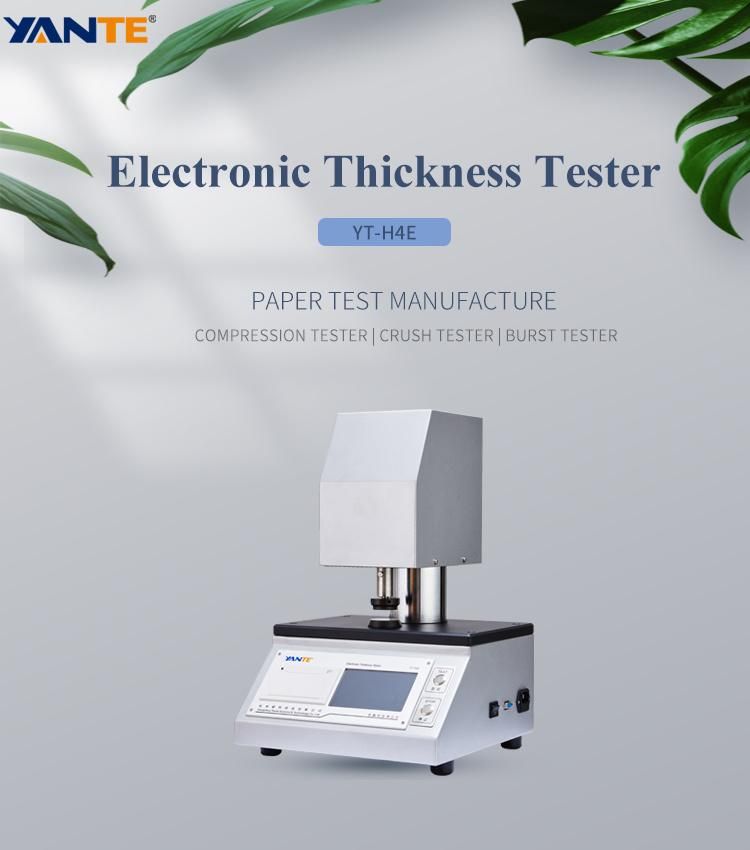

Electronic Thickness Tester is a special instrument for measuring the Non-woven Fabric. It is widely used for measuring the thickness of Non-woven Fabric. It is an ideal testing equipment for papermaking, packaging, scientific research, product quality supervision and inspection industries and departments.


Product Features

One-click test, easy to understand

ARM processor improves the response speed of the instrument, and the calculation is accurate and fast

The rising and falling speed of the probe can be adjusted

Sudden power failure data storage function, data before power failure after power-on is retained and testing can be continued.

Automatic measurement, statistics, and printing of test results

Communication with computer software (purchased separately)


Application Range
Non-woven Fabric


Executive Standard
GB/T 451.3,QB/T 1055,GB/T 24328.2,ISO 534



Technical Parameters


No.	Parameter item	Technical index
1	Power Supply	AC(100~240)V,(50/60)Hz 50W
2	Working Environment	Temperature(10~35)ºC, Humidity≤ 85%
3	Display	5 inch color touch screen
4	Measuring range	(0~10)mm
5	Resolution	0.001mm
6	Indication error	±0.003mm or ±0.5%
7	Indication variability	≤0.003mm or ≤0.5%
8	Parallelism between measuring surfaces	≤0.0004mm
9	Contact area	(1000±5) mm²
10	Contact pressure	(2±0.1)kPa
11	Probe descending speed	(0.5~10)mm/s Adjustable
12	Print	Built-in thermal printer
13	Communication Interface	RS232(Default) (USB, WIFI optional)
14	Dimension	325×310×485 mm
15	Net Weight	24kg around
