• Model NO.：AT2811
• Power Source：AC 85V-265V
• Weight：0-10Kg
• Installation：General Installation Meter
• Customized：Customized
• Size：315mm(Width)*230mm(Height)*405mm(Depth)
• Power Supply：Voltage: 198V AC - 240V AC Frequency: 50Hz Powe
• Interface：RS-232c
• Range：10 Automatic or Manual
• Trigger：Internal, Manual, External and Remote
• Transport Package：Cartons
• Specification：CE Certificate
• Trademark：Applent
• Origin：Changzhou, Jiangsu, China
• HS Code：9030332000
• Production Capacity：5000 Sets,Month

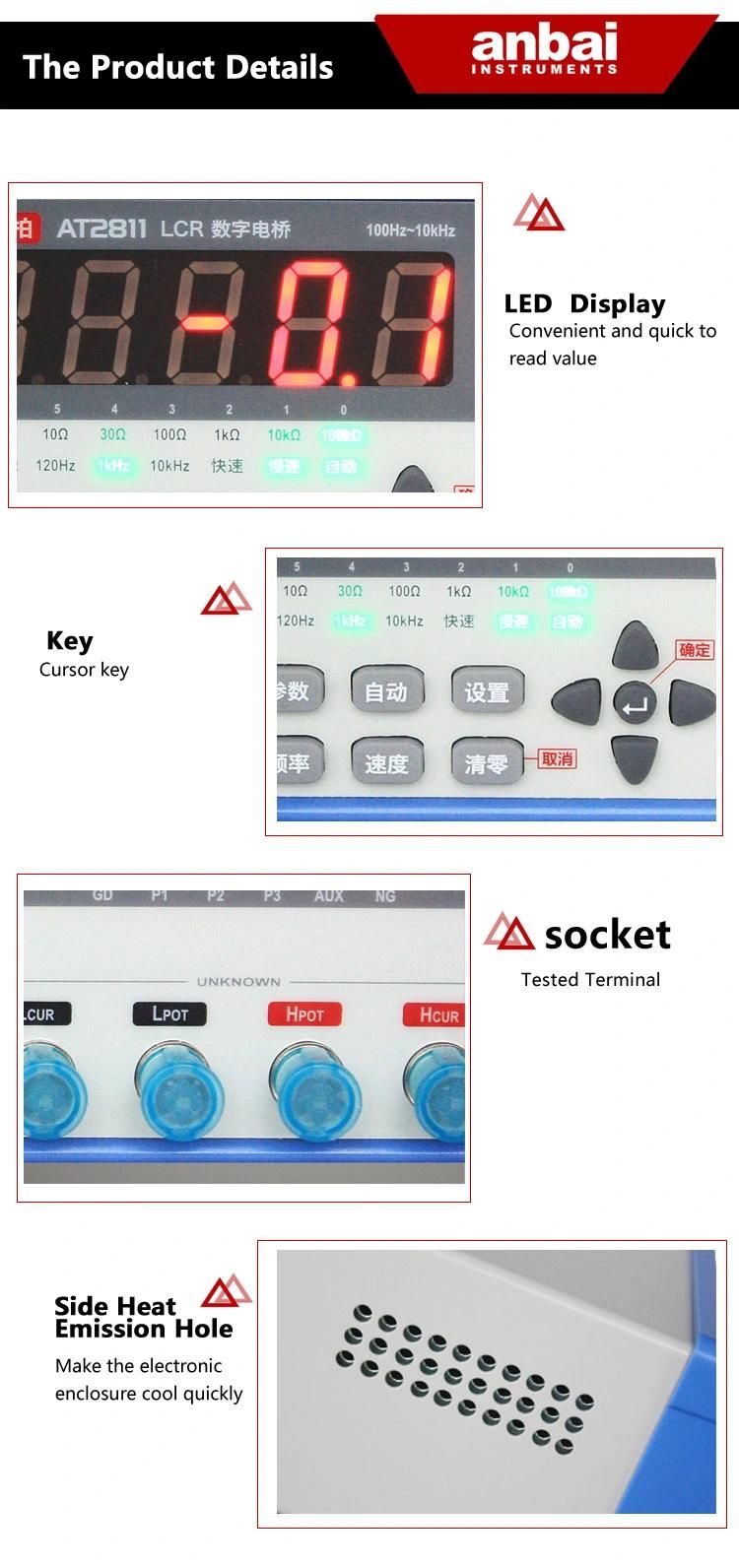

AT810D/AT2811 digital LCR meter is created as the smallest bench-type digital meter , this depends on Applent  professional intelligent instrument technology.

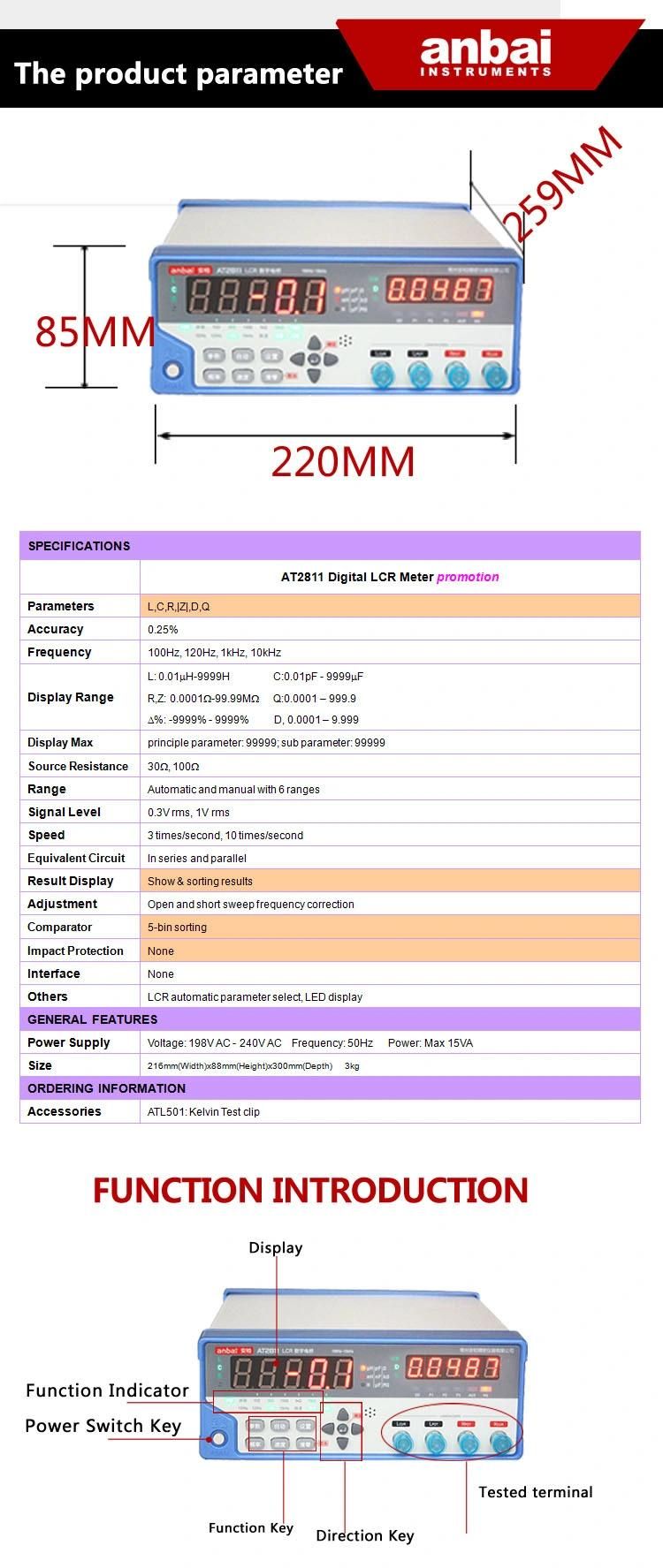

Four grades of test frequency: 100Hz, 120Hz, 1kHz, 10kHz; 6 parameters (L, C, R, Z, D, Q) can be tested and the built-in comparator can easily deal with the sorting operation of components which made AT2811 high cost-performance. SPECIFICATIONS AT810D Digital LCR MeterAT2811 Digital LCR Meter promotionParameters L,C,R,Z,D,Q,θ(deg),θ(rad)L,C,R,|Z|,D,QAccuracy0.2%0.25%Frequency100Hz,  120Hz,  1kHz,  10kHz100Hz, 120Hz, 1kHz, 10kHzDisplay RangeL: 0.01μH-9999H       C: 0.01pF-9999μF
R,Z:0.0001Ω-99.99MΩ  Δ%: -9999% - 9999% D: 0.0001 - 9.9999     Q:0.0001 - 9999L: 0.01mH-9999H C: 0.01pF-9999mF
D: 0.0001-9.999   Q: 0.0001-999.9
R,Z: 0.0001W - 99.99MWMax ReadingPrinciple parameter: 99999  sub parameter: 99999Source Resistance30W and 100WRangeAutomatic and manual with 6 rangesSignal Level0.1Vrms, 0.3Vrms and 1VrmsSpeed2 times/second, 5 times/secondSlow: 3 times/second, Fast: 10 times/secondEquivalent CircuitIn series and parallelResult DisplayShow & sorting resultsAdjustmentShort and open sweep frequency correctionComparator5-bin sortingProtection1000V/10mF,600V/80mF or 400V/150mF capacitance electrify protectionNoneInterfaceOptional RS232NoneBeepP1, P2, P3, NG, OFFOthersVFD display, keypad lock and data hold functionLCR automatic parameter select, LED displayGENERAL FEATURESPower SupplyVoltage: 198V AC - 240V AC  Frequency: 50Hz   Power: Max 15VASize264mm(Width)x107mm(Height)x350mm(Depth) 4kg220mm (Width)x85mm (Height)x259mm (Depth); 2kgORDERING INFORMATIONAccessoryATL501: Test cable  ATL601: Test fixture
ATL600: Short-circuit device
Optional: ATL608 SMD patch clamp

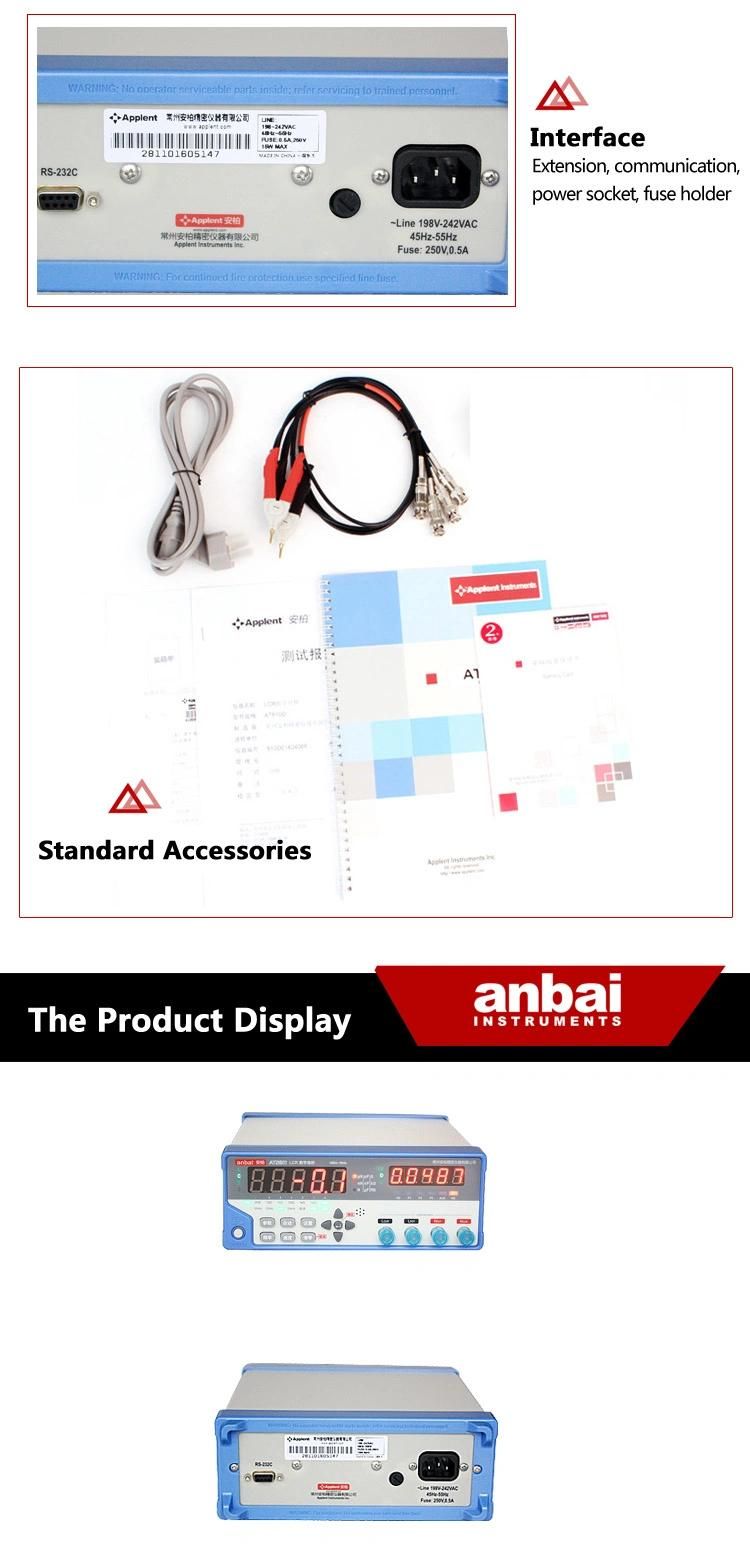

ATL508: SMD patch test clipATL501: Kelvin Test clip; power cord
2. Company Profile and the main advantages






Changzhou Applent Instruments Inc. was established in 2005, named Applent Technology. In 2009, Applent Technology renamed Applent Instruments Inc. With strong technical team, Applent focus on designing, researching and developing, manufacturing and selling all kinds of electrical meters, such as Precise Resistance Meters, DC Resistance Meters, LCR Digital Electric Bridges, Insulation Resistance Meters, etc.

The main advantages:

A we have strong technical team and focus on designing,researching and developing

B we manufacture and sell all kinds of electrical meters, such as Precise Resistance Meters, DC Resistance Meters, LCR Digital Electric Bridges, Insulation Resistance Meters, etc

C we have a lot of agents all over China and USA Office. Professional people offer specialized technical support.
