• Model NO.：YPO-480
• Loading Method：Dynamic Load
• Display：Needle
• Control：Computer Control
• Weight：100-500Kg
• Power Source：AC220V
• Oil Cylinder Position：Under
• Inner Chamber Size(W*H*D)：800*1000*600mm
• Exterior Chamber Size(W*H*D)：1300*1700*750mm
• Temperature Range：Rt 25c to 300c
• Temperature Control Accuracy：+,-0.3c
• Temperature Uniformity：+,-1c
• Temperature Resolution：0.1c
• Inner Material：SUS#304 Stainless Steel
• Heat up Time：30minutes
• Controller：Omron E5az Controller
• Transport Package：Strong Plywood Carton
• Specification：CE, ISO, SGS, TUV certified.
• Trademark：Yuanyao
• Origin：Dongguan, China(Mainland)
• HS Code：9031200000
• Production Capacity：20 Sets,Week

ModelYPO-072YPO-270YPO-480YPO-600YPO-720Inner chanber size W*H*D(mm)400*450*400600*900*500800*1000*6001000*1000*6001200*1000*600Exterior chanber size W*H*D(mm)750*1100*5501150*1650*7401300*1700*8401500*1750*8401850*1750*840Temperature RangeRoom temperature 10ºC ´ 200ºC(300ºC)PerformanceTemperature control accuracy ±0.3ºCTemperature uniformity±1ºCTemperature resolution0.1ºCHeat-up time30minutesMaterialExterior chamber material Stainless steel plate+Powder CoatedInterior chamber material SUS#304stainless steel plateInsulation PU & Fiberglass woolSystemWind Circulation Sirocco fanHeating system SUS#304 stainless steel high-speed heaterController Omron E5AZ controllerOther components cable port(60mm),control status indicator lights,loading shelves(2pcs for free)Safety Devices Overheating circuitbreaker, compressor overload protection, control system overload protection,
humidifying system overheating protection, breakdow indicator lightPower supply AC380V 60/50HzCustomizationCustomization of inner chamber size, temperature & humidity range etc.Vaccum agreeAt,ospheric pressure to -98Kpa

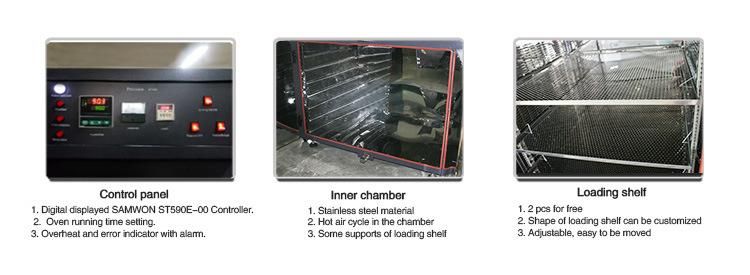

Product detail



Company profile









 If you want to know more information, please feel free to contact me .Thanks !
