• Model NO.：THR Series
• Analytic Accuracy：0.1degree C; 0.1% R.H
• Uniformity：+,-2.5degree C; +,-3.5% R.H.
• Control Accuracy：+,-0.5degree C; +,-2.5% R.H.
• Cooling System：Water Cooling
• Transport Package：Wooden Case
• Specification：CE
• Trademark：ASLi
• Origin：Guangdong, China
• HS Code：85141910
• Production Capacity：300 Sets, Year

Basic Info.

Model NO. THR Series Analytic Accuracy 0.1degree C; 0.1% R.H Uniformity +/-2.5degree C; +/-3.5% R.H. Control Accuracy +/-0.5degree C; +/-2.5% R.H. Cooling System Water Cooling Transport Package Wooden Case Specification CE Trademark ASLi Origin Guangdong, China HS Code 85141910 Production Capacity 300 Sets/ Year

Product Description

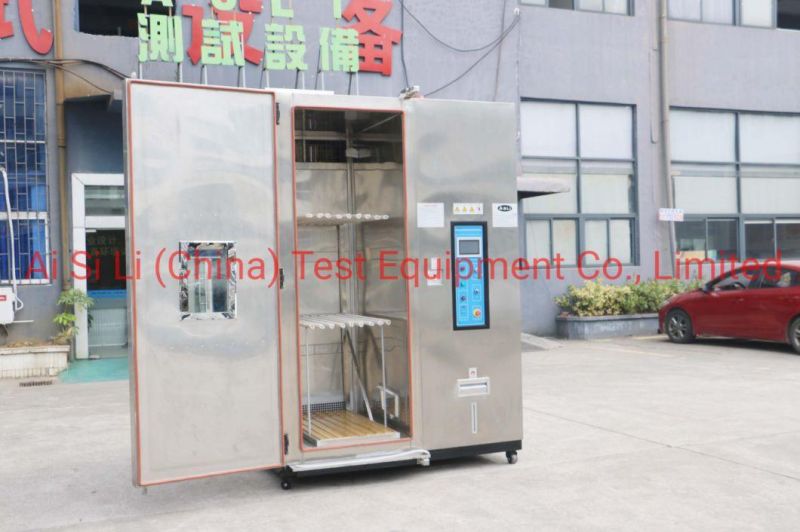

Welded Modular Climatic Walk-In Stability Chamber for Temperature Aging Testing



Product DescriptionTemperature Humidity Walk in Test Room is designed for testing the capability of heat-endurance, cold-endurance, dryness-endurance, and humidity-endurance, suitable for quality control of the industries of electron, electrical equipment, vehicle, metal, foodstuffs, chemistry, building materials, luggage, adhesion tape, printing, packaging, etc.



Walk in Test Room Technical Parameters:

Model	THR-volume (low-temperature options : A ~ F)
Inner Dimensions(cm)	Customers designated space size and design
Temperature Range	Low Temperature(A:25ºC  B:0ºC  C:-20ºC D:-40ºC  E:-60ºC  F:-70ºC) High Temperature 80ºC (80ºC ~150ºC is optional)
Humidity Range	20%~98%R.H.(10%-98% R.H. / 5%-98% R.H ,is a special optional condition, need dehumidifier)
Control Accuracy of Temperature and Humidity	±0.5ºC; ±2.5% R.H.
Temperature Rising/Falling Velocity	Temperature rising approx. 0.1~3.0°C/min  temperature falling approx. 0.1~1.0°C/min; ( The Falling Velocity Min.1.0°C /min is a optional)
Cooling System	Water cooled
Optional Accessories	Slope for cart , Recorder, Water Purifier, Dehumidifier



Walk in Test Temperature Humidity Room Features:

1. Graceful appearance, circularly shaped body, surface treated with mist strips . Easy to operate, safe and reliable.
2. Rectangular double-paned viewing window for viewing sample under test, with interior light
3. Double-layer-insulated airtight doors, able to insulate the internal temperature effectively.
4. Water supply system that is externally connectable, convenient for refilling water into the humidifying pot and automatically recyclable.
5.French Tecumseh is used as compressor, with environment friendly refrigeration R23 or R404A
6. LCD display screen, capable of displaying the measured value as well as the set value and time.
7. The control unit has the functions of multiples segment program editing, with quick or ramp rates control of temperature and humidity.
8. Casters are provided for ease of mobility, with strong positioning screws.
 Exhibition Company Profile We are a long history testing equipment manufacturer, in the past 28 years, we devoted to simulation environmental testing equipment and Mechanical vibration and shock testing machine. Temperature Humidity Walk in Test Room  is our star products , and we had obtained the CE certification for this machine .
