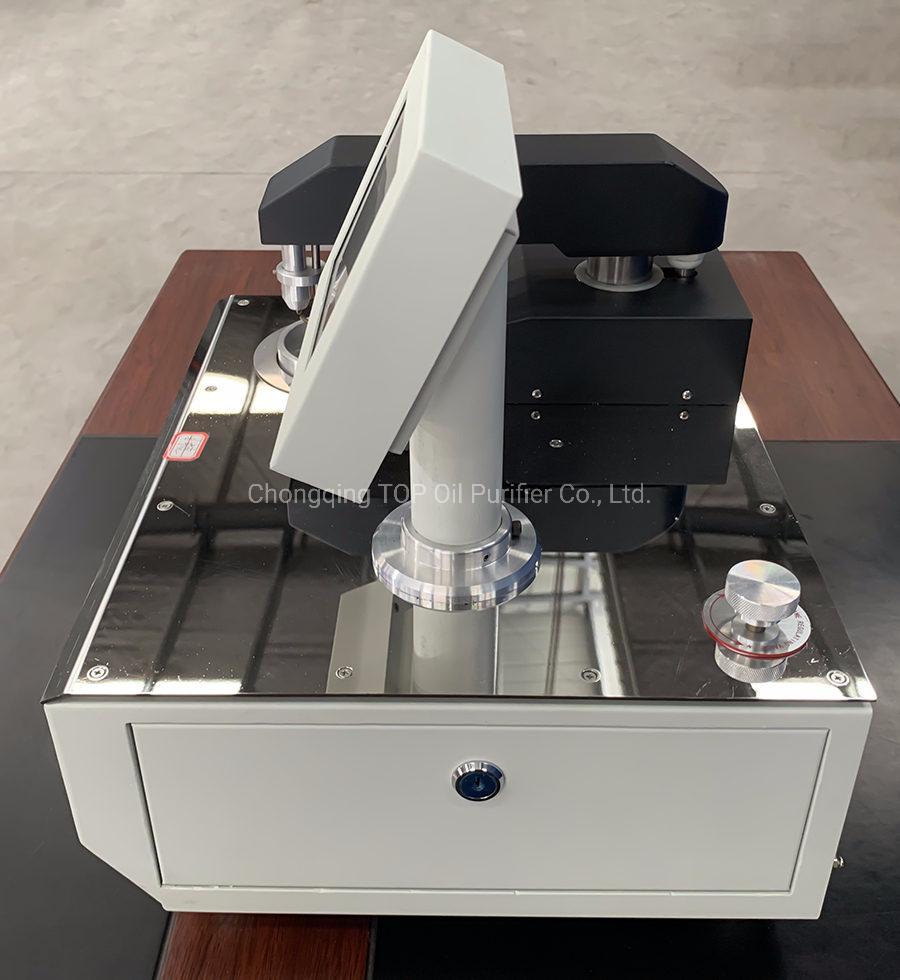

• Model NO.：TPO-3000A
• Standards：ASTM D92, Is02592, GB267, GB3536 etc.
• Test Method：Open Cup
• Temperature Range：Room Temperature - 400c
• Accuracy：0.1 Celsius Degree
• Transport Package：Standard Export Wooden Case
• Trademark：Chongqing TOP Tester
• Origin：Chongqing, China
• HS Code：902780
• Production Capacity：100 Sets , Month

1.Temperature Measurement Range: Room Temperature to 400ºC
2.Accuracy: 0.1ºC
3.Resolution: 0.1ºC
4.Heating rate: At the beginning of heating, the heating rate of the sample ranges from 4 (ºC/min)~17(ºC/min).When the sample reaches the last 23ºC±5ºC before the expected flash point,the heating rate ranges from 5(ºC/min)~6(ºC/min).

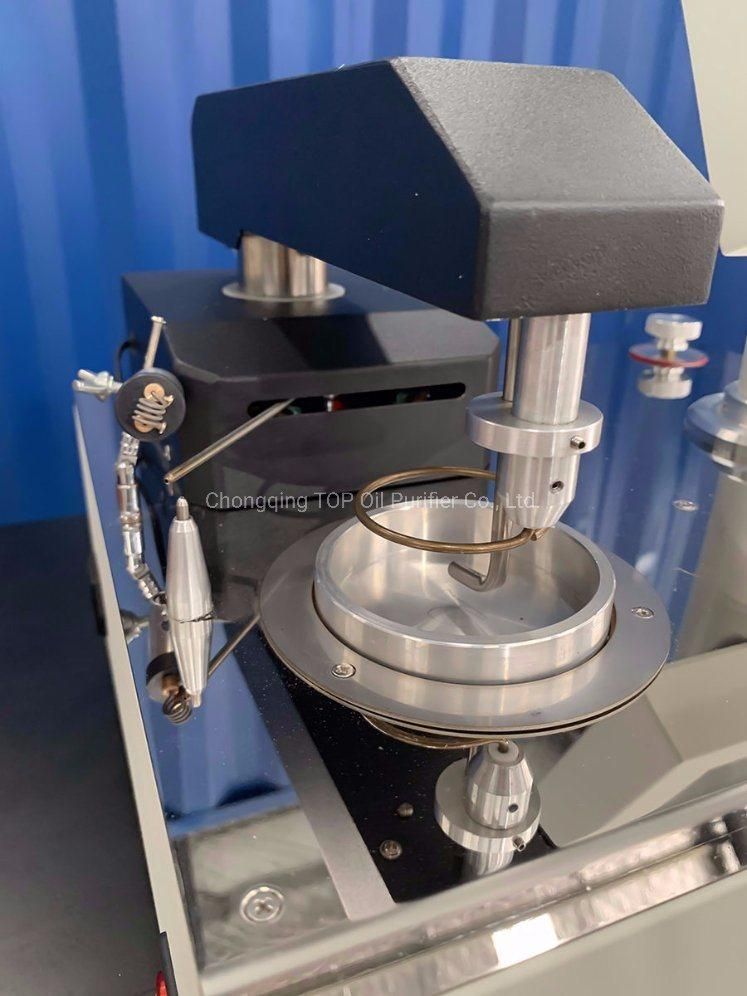

5.Test ignition source: natural gas, liquefied petroleum gas or butane gas/electronic ignition.
6.Ignition test cycle:  23ºC±5ºC before reaching the expected flash point, it will sweep once when the temperature increase very 2ºC.
7.Flash point value: If the difference between the observed flash point and the initial ignition temperature is less than 18ºC, then the result is invalid. In this condition,new specimens should be replaced and re-determined, and the initial ignition temperature should be adjusted until the effective results are achieved. That means the flash point value should be higher than the initial ignition temperature by more than 18ºC.
8.Repeatability of measurements: Repeatability ≤4ºC
Operating environment: (ambient temperature) 5~50ºC. (Relative humidity) less than 80% RH
9.Power supply: AC230V±10%,50±1Hz
10.Power: 500W



Other Related Oil Testers
(We provide not only the following listed oil testers. Contact me directly if you have other related demand.)
1.Fully Automatic Karl Fischer Water Content Tester TP-2100
2.Digital Karl Fischer Water Content Tester TP-6A
3.Kinematic Viscosity Tester VST-2000
4.Kinematic Viscosity Tester TPV-8
5.Kinematic Viscosity Tester VST-3000
6.Fully Automatic Oil Acidity Tester (6 cups) ACD-3000I
7.Fully Automatic Surface/Interface Tension Tester IT-800
8.Automatic Surface/Interface Tension Tester (Platinum Plate Method) IT-800P
9.Fully Automatic Open Cup Flash Point Tester TPO-3000
10.Fully Automatic Closed Cup Flash Point Tester TPC-3000
11.Digital Open Cup Flash Point Tester TPO-100
12.Digital Closed Cup Flash Point Tester TPC-100
13.Cloud Point & Pour Point Tester PT-2000
14.Multi-functional Vibration Tester VBT-2000
15.Automatic Potentiometric Titrator TP668
16.Petroleum Products Density Tester DST-3000
17.Petroleum Products Density Tester TP-109A
18.Karl Fischer Volumetric Water Content Titrator TPD
19.Distillation Range Tester DIL-201
20.Online Oil Quality Tester PTT-002
21.Liquid Phase Corrosion Tester TPS-05
22.Copper Corrosion Tester TP-113
23.Petroleum And Synthetic Liquid Anti-Emulsification Tester TP-122
24.Dew Point Tester DPME-P
25.Portable Chilled Mirror Dew Point Tester TP-1500

Packing & Delivery
Packing: standard export case per set.
Delivery method: this kinds of testing equipment are usually delivered by air or courier, but other method is available if necessary.


About us

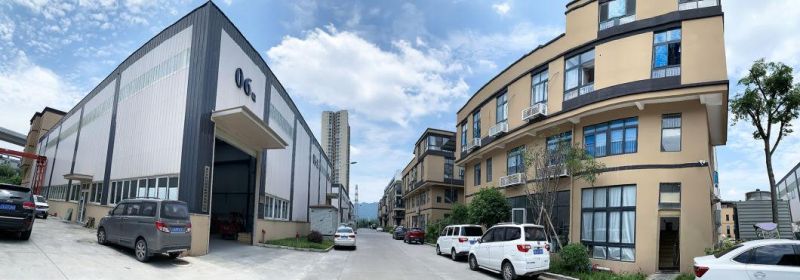

Chongqing TOP Oil Purifier Co.,LTD is a professional leading manufacturer and supplier of oil purifiers and various related testers, located at Chongqing city--a southwest electromechanical manufacturing center as well as national municipality. We consists of departments respectively for technological development, machinery manufacture, instrument manufacture, quality control etc. On basis of mature development and manufacture technology and highly qualified production management team, the products own high quality, easy operation, excellent performance and lone service life.




If you are interested in this oil purifier or other related equipment, welcome to contact me for more information.
