CE Certified Verified Supplier Multi-function Three-phase Portable Energy Meter Calibration
Wuhan GDZX Power Equipment Co., Ltd.- After-sales Service：Provided
- Warranty：1 Year
- Instrument accuracy level：0.05 or 0.1
- Output current range：25mA,0.1A,1A,5A,25A,100A
- Minimum output current：1mA(accuracy less than 5%)
- Output power：voltage circuit 3*50VA
Base Info

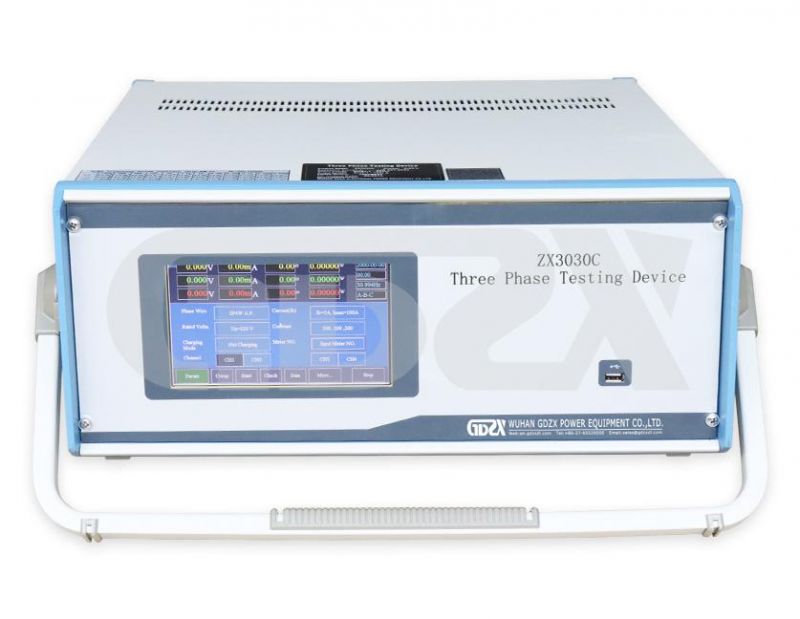

- Model NO.：ZX3030C
- Frequency range：45Hz-65Hz regulation fineness: 0.1Hz
- Phase meter accuracy：+-0.01degree
- Input voltage scope：40-480V
- Overload capacity：150A
- power supply：230V+-10%-50Hz
- Maximum power consumption：300VA
- Transport Package：Wooden Case or Carton
- Specification：Universal Testing Machine
- Trademark：GDZX
- Origin：China
- Production Capacity：1200sets,Year
Description
Company introduction
Service and Warranty
Service
* Provide professional consulting service; dedicated salesman and professional technical engineer to answer customer questions.
* Ensure customer get the detailed information about the product in hand.
* Reasonable price, we trust our customers should get the worth what they paid. Quotation stamped and confirmed by Manager.
* Welcome customers visit.
* Being trustworthy, follow the requirements and ensure successful implementation of signed contracts and technical agreements.
* Focus on communication, actively communicate with users, take notes of user's questions and schedule, provide the necessary technical support.
* Move quick and efficient, professional on delivery, installation, debugging, training and others. Warranty* We maintains 100% customer satisfaction, please give us feedback if you fell anything wrong with the product, we will make it right for you.* Our products are guaranteed with one year warranty and life-long tech support.* Provide solutions within 24 hours when there is problems feedback from customer.

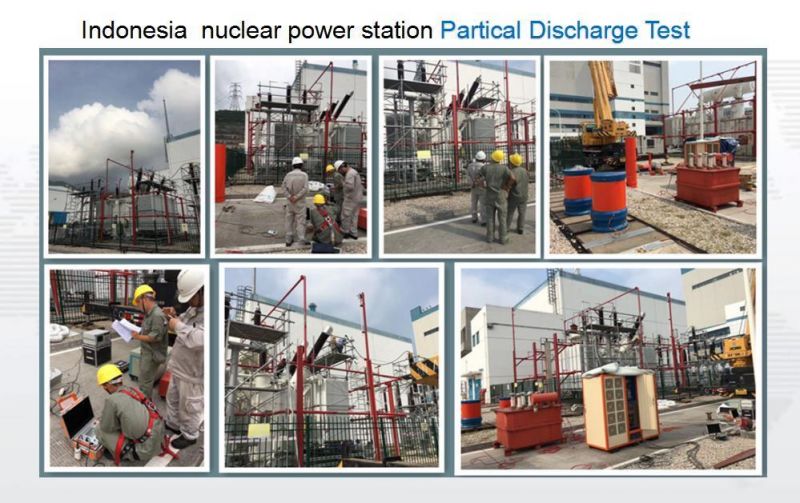

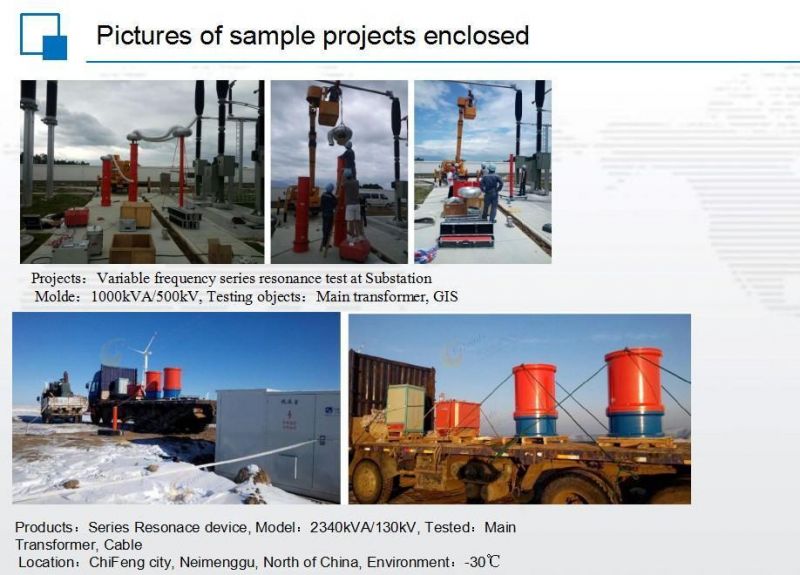

Test cases
Features
1. Built-in digital multi-function standard meter with Integrated structure of meter and power source, electrical parameters can be read via software.
2. adopts DDS technology, CPLD and 32 bit embedded system, featured with high stability of signal source output, small fineness, low distortion.
3. RAM system large color LCD display, can show three phase voltage/current, active power, reactive power, apparent power and electric quantity vector diagram, waveform analysis chart.
4. use digital power amplifier with above 90% efficiency and 300KHz carrier frequency, having advantages of low distortion, little heating, high efficiency.
5. Perfect protection function: voltage short circuit alarm, open circuit and over load alarm.
6. Built-in OCXO for 50KHz high precision impulse output, which can be used to calibrate energy meter clock, also can test day error/hour segment error when matching with meter calibration software (optional).
7. With 485 communication interface, can do universal meter various communications test (optional).
8. can work without PC to auto calibrate energy meter by built-in software, storage capacity up to 1,000 calibrated meters' data
9. With USB interface, can upgrade, output data, connect mouse for direct operation.
