• Model NO.：SR-006
• Angle of Incidence：-4°
• Transport Package：9mm and 15mm Plywood Package
• Specification：220x150x90mm
• Trademark：CIVITTEST
• Origin：Zhejiang-China
• HS Code：9031809090
• Production Capacity：100pieces,1 Month

Basic Info.

Model NO. SR-006 Angle of Incidence -4° Transport Package 9mm and 15mm Plywood Package Specification 220x150x90mm Trademark CIVITTEST Origin Zhejiang-China HS Code 9031809090 Production Capacity 100pieces/1 Month

Product Description

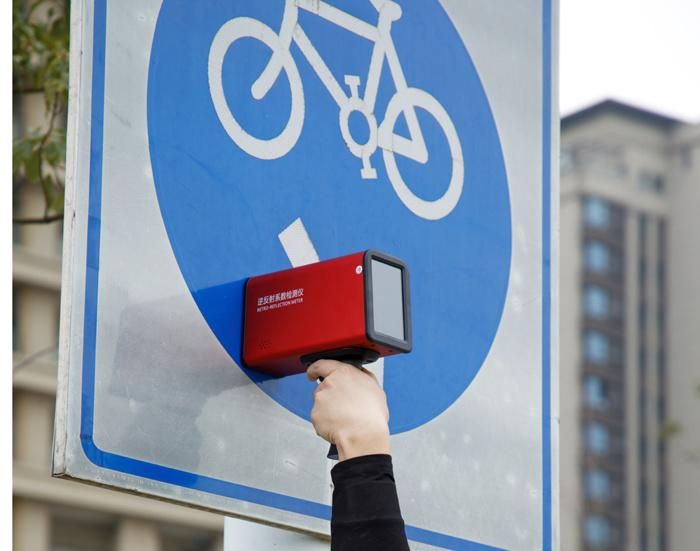

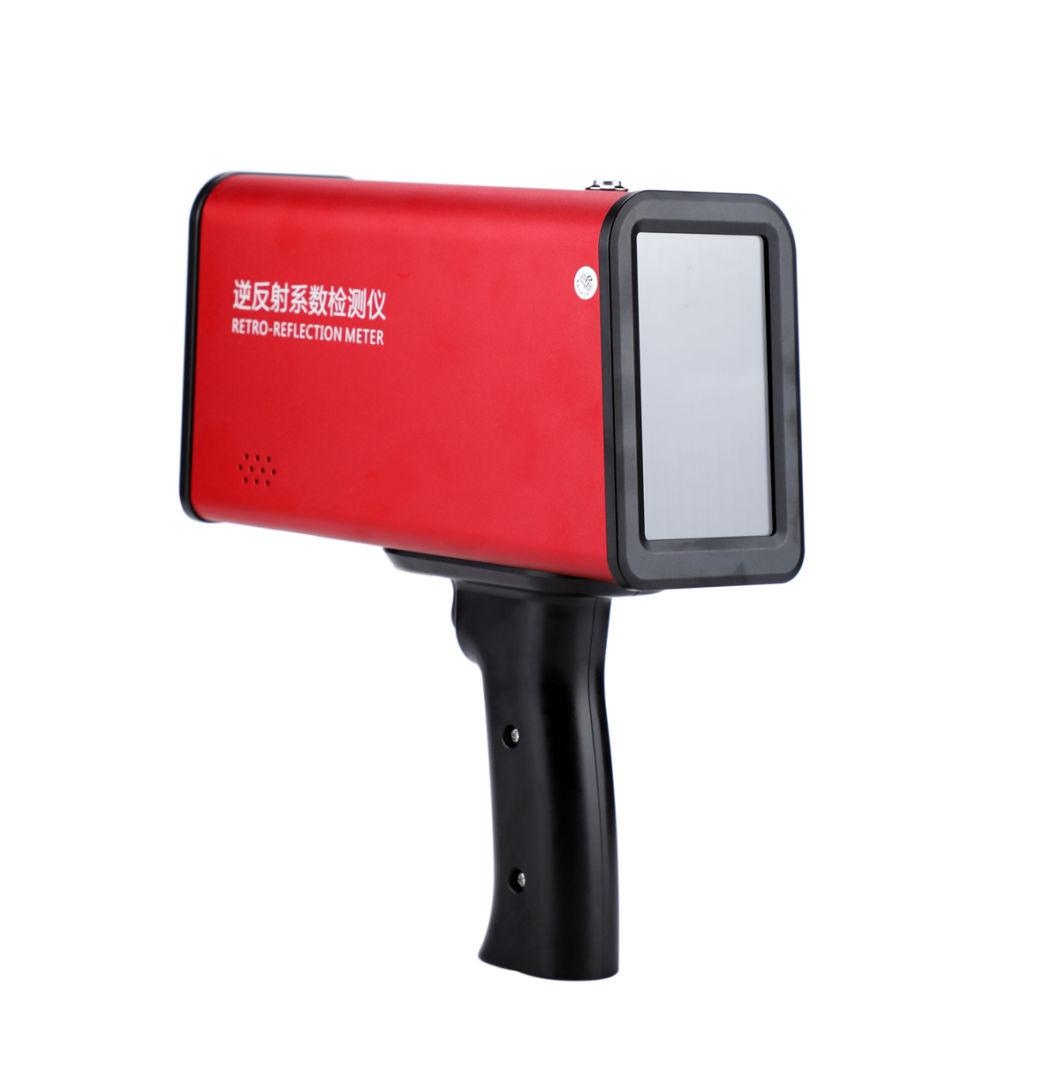

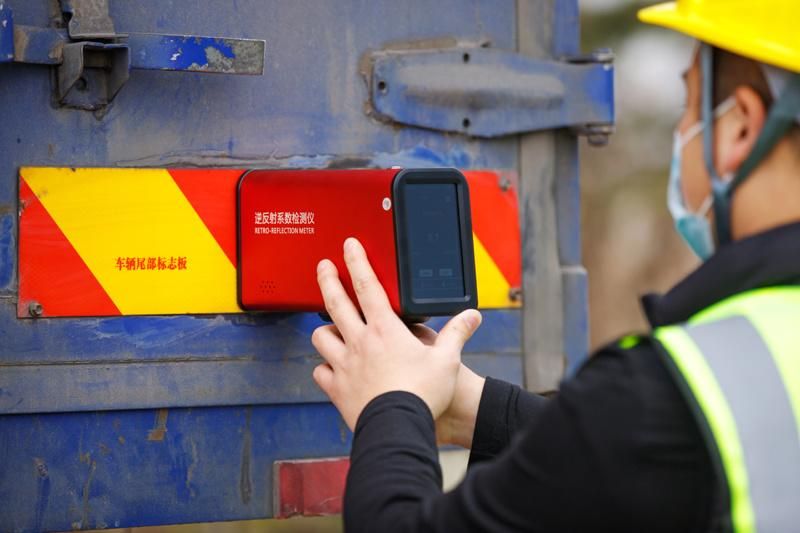

Reflecting Detecting Retroreflective Testing Road Traffic Marking Handheld Sign Retroreflectometer

 I. DescriptionIt is a new type of portable traffic safety detection equipment, which is used to measure the reflective optical characteristics of various reflective safety signs, and can be used for on-site detection of traffic reflective products and vehicle safety reflective products. II. Functional Characteristics

1. Advanced optical measurement system;
2. Anti scratch full metal jacket;
3. Magnetic suction calibration method, more convenient
4. The 4.3-inch high brightness LCD capacitive touch screen displays the measured data;
5. Preset parameters, display system information such as date, time, test site;
6. Open English menu operation mode to foreign customers;
7. Support real-time display of on-site temperature and humidity;
8. Automatic check zero and calibration measurement standard;
9. Enter Chinese character, English and characters with touch buttonboard;
10. Storage test records, and may at any time the detailed query;
11. Support rapid measurement ;
12. Support multiple measurements to calculate the average;
13. Support storing more than 99,999 test data information, including, measurement data, operator and testing time, etc.;
14. Support 8G SD card data storage and support data storage in Excel format, and the data can be exported to the computer through U disk;
15. Low illumination and high sensitivity photoelectric measuring equipment assembly;
16. Support smart standby management and the system automatically enters sleep state when there is no operation;
17. High precision, high stability simulation data acquisition and A/D conversion circuit;
18. Low power consumption, high reliable main control unit and operation system.

III. Technical Specification

Number	Technical	Technical indicators
1	Measurement items	retroreflective coefficientcd.lx-1 .m-2
2	Measurement range	0---1999.9
3	Observation angle	0.2°
3	Angle of incidence	-4°
4	Light source color temperature	2856±50K (Standard illuminant A)
5	Testing spot diameter	32mm
6	Error of repeatability measurement	≤2%
7	Error of reproducibility measurement	≤3%
8	Continuous working time of battery	>8h
9	Data storage space	8GB
10	Built-in battery capacity	3500mAh
11	Charger	DC 8.4V
12	Ambient temperature	-5ºC~+50ºC
13	Ambient humidity	<98%, no frost
14	Instrument size	220mm ×250mm ×80mm (L×H×W)
15	Weight	1.7kg

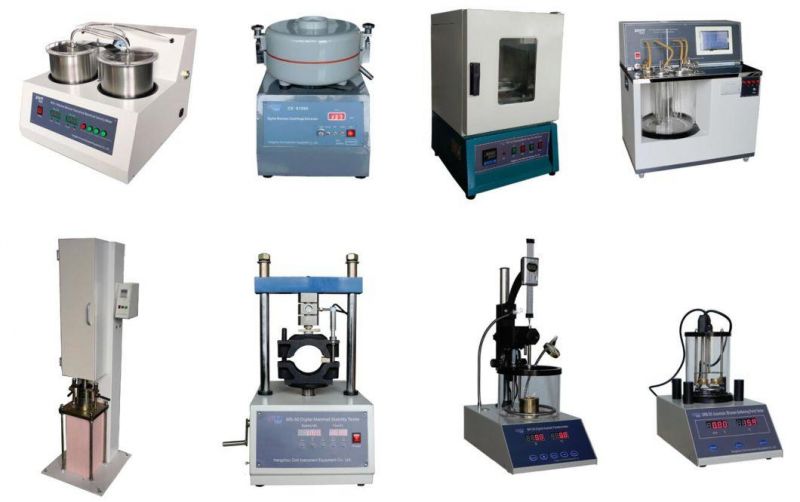

III. Company Product
1. Drying, weighing and Grading Equipment and tools.
2. Soil, Rock Testing Equipment.
3. Aggregate Testing Equipment.
4. Concrete Testing equipment.
5. Cement and Mortar Testing Equipment.
6. Asphalt Bitumen Testing Equipment.
7. Steel Testing Equipment.
8. Survey Instrument and Detector.
9. General Lab Equipment and Tools.
10. Scientific Lab Equipment and Tools.




IV. Our services

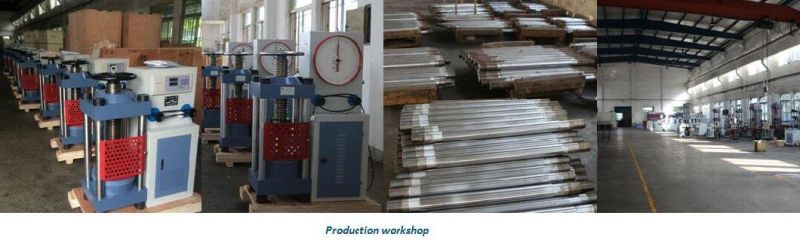

1. Production:
Our factory choose high quality material include steel, stainless steel, circuit board, motor, etc. By strict and efficient production and inspection, products are in high quality and possible low cost.


2. Shipment:
We use 9mm and 15mm thick plywood as packing, heavy machine will be packed in high strength to keep it intact during shipment. We ship goods out from company in shortest time and book fast ship to make sure customer can get goods quickly.


3. After sales:
After shipment, we will delivery shipping documents to customer correctly and quickly. Supply one year warranty for all machines, after one year, we will still supply quick and effective after sales solution.
