Computer Servo Lithium Ion Battery 10ka Large Current External Short Circuit Test Machine
GUANGDONG BELL EXPERIMENT EQUIPMENT CO., LTD.- After-sales Service：24 Hours Online
- Power Supply：220V 50Hz
- Certification：CE, ISO
- Warranty：1 Year
- Voltage Measurement Range：0~1000V
- Short Circuit Response Time：≦20ms
Base Info
- Model NO.：BE-XL-SERIES
- Short Circuit Method：Pneumatic + Vacuum Arc Extinguishing
- Testing Fixture：Customize According to Actual Testing Condition
- Transport Package：Each Set Protected with Resin Fiber and PP Film, T
- Specification：10000A-15000A
- Trademark：DGBELL
- Origin：Guangdong China
- HS Code：8514109000
- Production Capacity：100set ,Month
Description
Ambient TemperatureInner Resistance <1mΩ, <5mΩ, <10mΩ, <20mΩ, <50mΩ,<100mΩ (Optional) Control Mode Close PLC touch screen control + computer remote control + remote control External Dimension W700xD1050xH1830mm W700xD1050xH1830mm Explosion-proof Cabinet Dimension W2000xD3000xH2000mm (Option) Voltage Measurement Range 0~1000V Short Circuit Response Time <=20ms Data Interface USB, Data card, etc… Safety device Video monitor system, explosion protection system, smoke exhaust system, smoke alarm device, explosion proof lighting device, etc. Data Acquisition Module Independent remote acquisition and quarantine, multi-voltage/temperature/current acquisition channels ensure data accuracy. Acquisition frequency 100HZ Short Circuit Method Pneumatic + vacuum arc extinguishing Safety Alarm device Electric leakage, over-current protection, abnormal sound-light alarm, smoke alarm, dual protection system, etc. Testing Fixture Customize according to actual testing condition

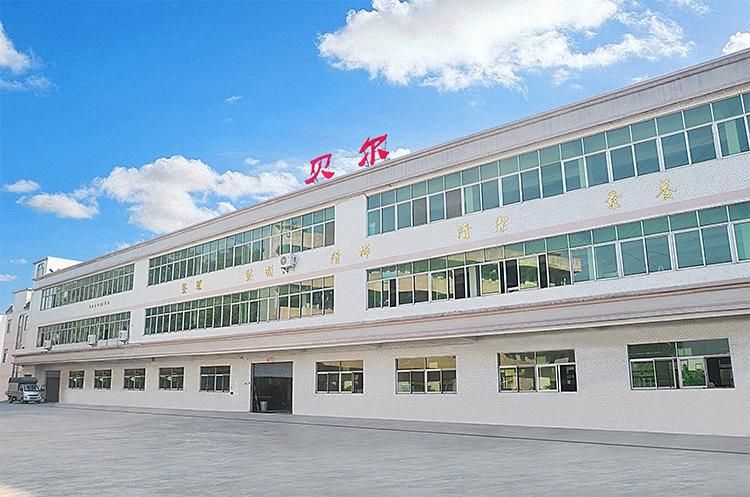

Established in 2005, Guangdong Bell Experiment Equipment Co., Ltd is specialized in manufacturing a variety of quality inspection instruments, testing equipments and other high-tech products which mainly include: Constant Temperature & Humidity Test Chamber,High & Low Temperature Test Chamber, High & low Temperature Testers with Rapid Temperature Change, Walk-In humidity & temperature test chamber, Cool/Thermal shock test chamber, Salt spray chamber, High temperature aging tester, sand and dust testing machine,tension tester, high and low temperature testing machine , servo computer battery crush tester, mechanical vibration testerBattery washing tester ,battery burning tester and other quality testing instruments. Thanks to several decades of R&D efforts,the company has established itself as a leading provider of testing instruments of the industry, playing a crucial role in the research and development of high-quality and high-value products within the industry.
15+ years experience in test chambers manufacturing, High performance for your projects.
With unmatched quality advantage, a dynamic management team, professional customer services, superb manufacturing techniques and innovative research and development ideas, Guangdong Bell Experiment Equipment Co., Ltd, supported by an international, standard and professional quality policy, is gradually becoming an international brand. Its products are manufactured in consistent with a number of world standards.
Established in 2005, Guangdong Bell Experiment Equipment Co., Ltd is specialized in manufacturing a variety of quality inspection instruments, testing equipments and other high-tech products which mainly include: Constant Temperature & Humidity Test Chamber,High & Low Temperature Test Chamber, High & low Temperature Testers with Rapid Temperature Change, Walk-In humidity & temperature test chamber, Cool/Thermal shock test chamber, Salt spray chamber, High temperature aging tester, sand and dust testing machine,tension tester, high and low temperature testing machine , servo computer battery crush tester, mechanical vibration testerBattery washing tester ,battery burning tester and other quality testing instruments. Thanks to several decades of R&D efforts,the company has established itself as a leading provider of testing instruments of the industry, playing a crucial role in the research and development of high-quality and high-value products within the industry.
15+ years experience in test chambers manufacturing, High performance for your projects.
With unmatched quality advantage, a dynamic management team, professional customer services, superb manufacturing techniques and innovative research and development ideas, Guangdong Bell Experiment Equipment Co., Ltd, supported by an international, standard and professional quality policy, is gradually becoming an international brand. Its products are manufactured in consistent with a number of world standards.
