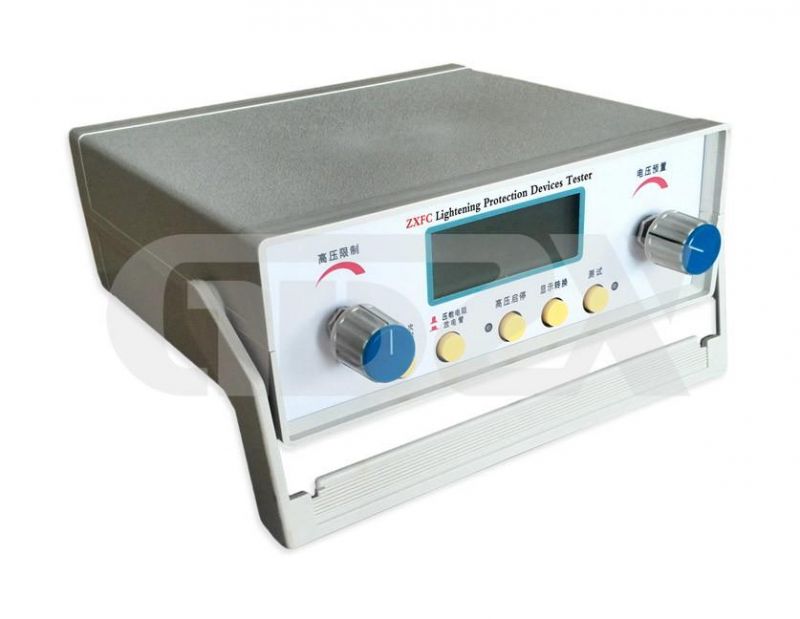

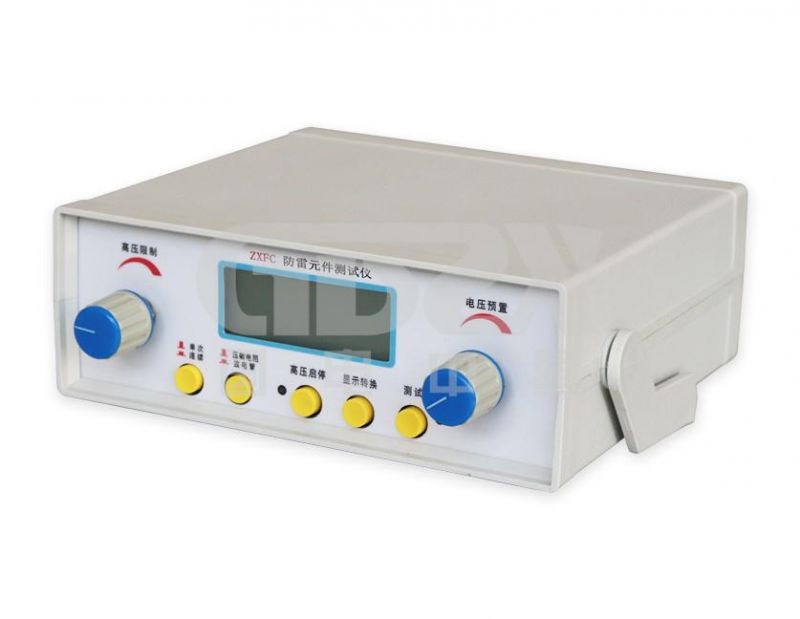

Lightening Protection Devices Tester For Zinc Oxide Arrester Test
Wuhan GDZX Power Equipment Co., Ltd.- After-sales Service：Provided
- Warranty：1 Year
- Insulation resistance：6MOhm(500V)
- Withstand voltage：AC 1.5kV 50HZ 1min
- Working temperature and humidity：0 to +40Centigrade, Less than or equal to 85%RH
- Storage temperature and humidity：-10C to +50C, Less than or equal to 90%RH
Base Info
- Model NO.：ZXFC
- Power supply：AC 220V 50Hz DC12V 0.5A
- Consumption：8W
- Instrument size：208mm*190mm*78mm
- Weight：1.5kg

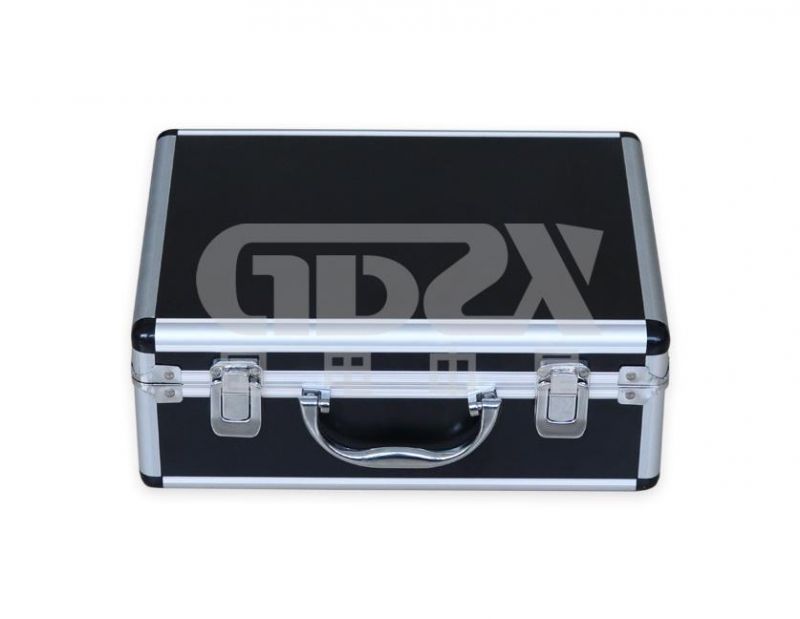

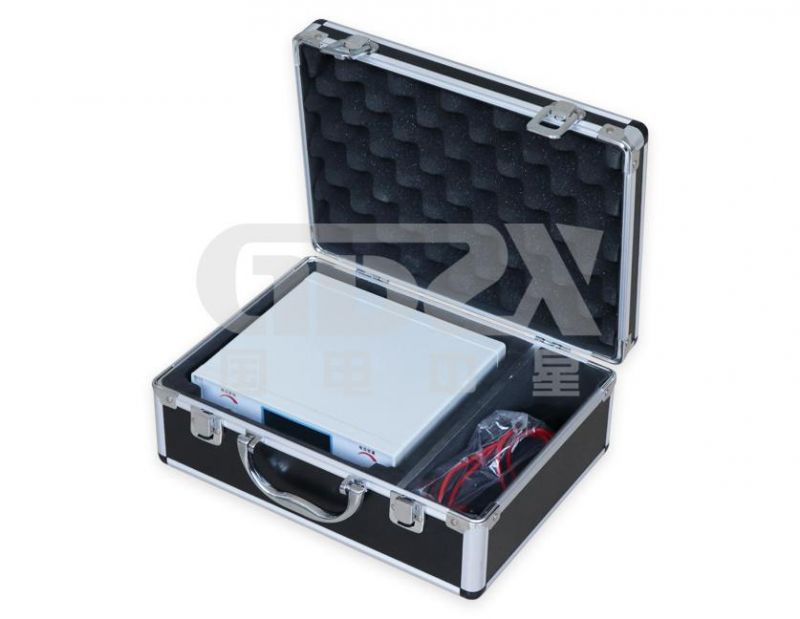

- Transport Package：Wooden Case or Carton
- Specification：Universal Testing Machine
- Trademark：GDZX
- Origin：China
- Production Capacity：1200sets,Year
Description
Features
1. With HV short circuit protection, over current protection, high voltage preset, range adjustment functions, HV self discharge time less than 0.5 second.
2. Self calibration function.
3. LCD display, high precision, strong reliability.
4. Preset the measurement range when testing, there will be sound alarm if exceed the measurement range.
5. Choose continuous measurement can make continuous test for mass measured equipment.

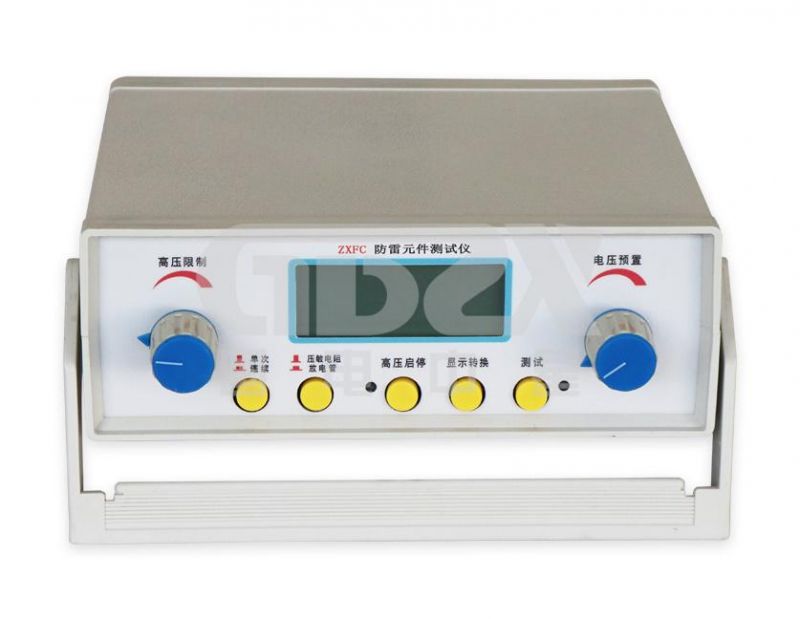

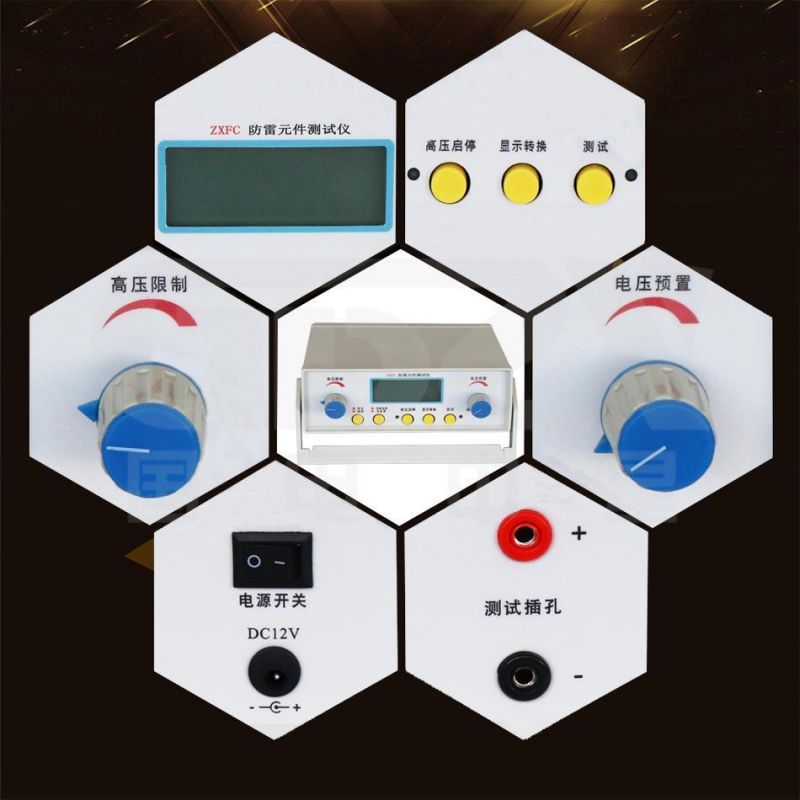

6. Panel function is simple, easy to operate.
7. Light in weight, easy to carry.
Technical parameters 1.Pressure sensitive resistance measurement
| Technique parameter | range | error | condition |
| Initial action voltage:U1mA | 0~1999V | ≤±1%±1d | 1mA±5μA |
| Leakage current:0.75U1mA | 0~199.9μA | ≤±2μA±1d | 0.7U1mA≤±1%±1d |
| Technique parameter | Range | error | Condition |
| DC Spark-over voltage Vsdc | 5~1999V | ≤±1%±1d | Voltage rise speed:100V/S±10% |
| 3.Insulation resistance | 6MΩ(500V) | |
| 4.Withstand voltage | AC 1.5kV 50HZ 1min | |
| 5.Working temperature and humidity | 0~+40ºC ≤85%RH | |
| 6.Storage temperature and humidity | -10ºC~+50ºC ≤90%RH | |
| 7.Power supply | AC 220V 50Hz DC12V 0.5A | |
| 8.Consumption | 8W | |
| 9.Instrument size | 208mm*190mm*78mm | |
| 10.Weight | 1.5kg |
Test cases
Company introduction
Wuhan GDZX Power Equipment Co.,Ltd.is a manufacturer of power test equipment, integrating design, production and sales, providing complete solutions for high-voltage testing and electrical testing services for various power users.The main products include:AC series resonance test device, high voltage test equipment, transformer test equipment, secondary protection / switch test equipment, cable fault tester, arrester test equipment, power metering equipment, standard source series and so on. There are many kinds of products and complete models.
Service and Warranty
Service
* Provide professional consulting service; dedicated salesman and professional technical engineer to answer customer questions.
* Ensure customer get the detailed information about the product in hand.
* Reasonable price, we trust our customers should get the worth what they paid. Quotation stamped and confirmed by Manager.
* Welcome customers visit.
* Being trustworthy, follow the requirements and ensure successful implementation of signed contracts and technical agreements.
* Focus on communication, actively communicate with users, take notes of user's questions and schedule, provide the necessary technical support.
* Move quick and efficient, professional on delivery, installation, debugging, training and others. Warranty* We maintains 100% customer satisfaction, please give us feedback if you fell anything wrong with the product, we will make it right for you.* Our products are guaranteed with one year warranty and life-long tech support.* Provide solutions within 24 hours when there is problems feedback from customer.
PACKING AND SHIPPING
(1)We will ship products within 8-20 working days after the receipt of confirmation of your payment.
(2)All products will be well packed by robust carton or wooden box so as to ensure goods can arrive safely.(3)Multiple shipping methods including express, sea freight, railway and so on for your choice, competitive shipping method will be advised to you.(4)If you go with your own forwarder, we will provide all necessary documents for customs clearance.(5)After shipping, we will remain attentive till goods well received. If you need detailed specification, please feel free to contact us.
