0.05 Class Multifunctional DC/AC Three Phase Standard Source Calibration device

Wuhan GDZX Power Equipment Co., Ltd.
  • After-sales Service：Provided
  • Warranty：1 Year
  • AC Voltage range：10, 20, 50, 100, 200, 400, 600V
  • AC Current range：0.1, 0.25, 0.5, 1, 2.5, 5, 10, 25, 50, 100
  • Regulation range：0-120%( but 800V, 100A: 105% )
  • DC output capacity：maximum 30W

Base Info

  • Model NO.：ZX3030H
  • DC output accuracy：0.05%
  • Phase measuring error：+,-0.050
  • Power supply：Single phase 220V+,-10%, 50HZ+,-5%
  • Temperature：200+,-100Centigrade
  • Dimension and weight：1800*800*750mm3, 135kg
  • Transport Package：Wooden Case or Carton
  • Specification：Universal Testing Machine
  • Trademark：GDZX
  • Origin：China
  • Production Capacity：1200sets,Year

Description

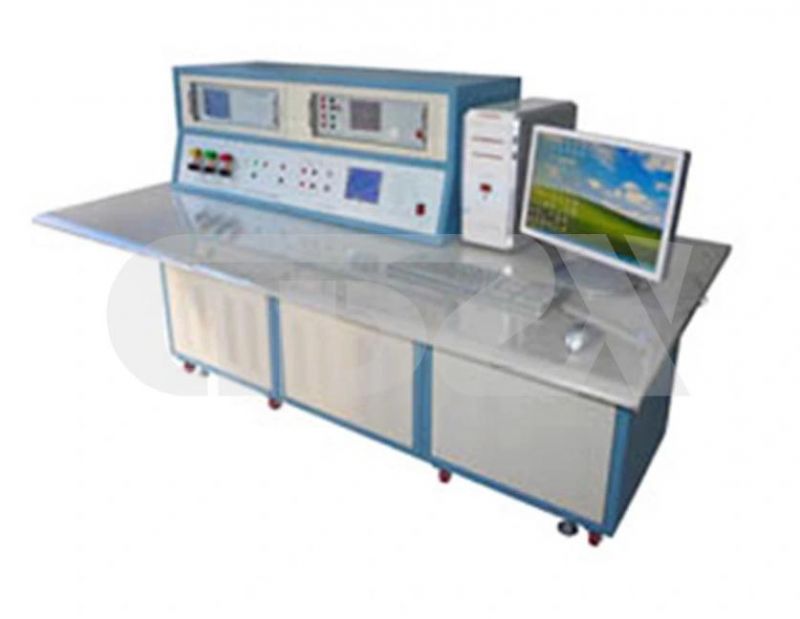

ZX3030H DC/AC Three Phase Standard Source is composed of program control three phase standard source, DC standard source, Three phase sampling type multifunctional standard meter, and computer with standard table and management software installed.0.05 Class Multifunctional DC/AC Three Phase Standard Source Calibration device



0.05 Class Multifunctional DC/AC Three Phase Standard Source Calibration device


    Technical parameters14. Device accuracy class: 0.051) allowed measuring error of voltage/current/active power: (5V≤U≤1000V,0.1A≤I≤100A) 0.05%
    2) allowed measuring error of active power energy: (25V≤U≤800V, 0.1A≤I≤100A) 0.05%
    3) allowed measuring error of reactive power/energy: 0.1%4) phase measuring error: ±0.050
    5) power factor measuring error: ±0.000215. Power supply: Single phase 220V±10%, 50HZ±5%16. Working environment: temperature 200ºC±100ºC, relative humidity ≤85%RH17. Dimension and weight: 1800*800*750mm3, 135kg

    Test cases

    0.05 Class Multifunctional DC/AC Three Phase Standard Source Calibration device    0.05 Class Multifunctional DC/AC Three Phase Standard Source Calibration device0.05 Class Multifunctional DC/AC Three Phase Standard Source Calibration device0.05 Class Multifunctional DC/AC Three Phase Standard Source Calibration device0.05 Class Multifunctional DC/AC Three Phase Standard Source Calibration device

    Company introduction

    Wuhan GDZX Power Equipment Co.,Ltd.is a manufacturer of power test equipment, integrating design, production and sales, providing complete solutions for high-voltage testing and electrical testing services for various power users.The main products include:AC series resonance test device, high voltage test equipment, transformer test equipment, secondary protection / switch test equipment, cable fault tester, arrester test equipment, power metering equipment, standard source series and so on. There are many kinds of products and complete models.

    0.05 Class Multifunctional DC/AC Three Phase Standard Source Calibration device





    0.05 Class Multifunctional DC/AC Three Phase Standard Source Calibration device

    0.05 Class Multifunctional DC/AC Three Phase Standard Source Calibration device0.05 Class Multifunctional DC/AC Three Phase Standard Source Calibration device


    Service and Warranty



    Service

    * Provide professional consulting service; dedicated salesman and professional technical engineer to answer customer questions.
    * Ensure customer get the detailed information about the product in hand.
    * Reasonable price, we trust our customers should get the worth what they paid. Quotation stamped and confirmed by Manager.
    * Welcome customers visit.

    * The contract and the technical agreement to sign by both parties.
    * Being trustworthy, follow the requirements and ensure successful implementation of signed contracts and technical agreements.
    * Focus on communication, actively communicate with users, take notes of user's questions and schedule, provide the necessary technical support.
    * Move quick and efficient, professional on delivery, installation, debugging, training and others.     Warranty* We maintains 100% customer satisfaction, please give us feedback if you fell anything wrong with the product, we will make it right for you.* Our products are guaranteed with one year warranty and life-long tech support.* Provide solutions within 24 hours when there is problems feedback from customer.


    PACKING AND SHIPPING

    (1)We will ship products within 8-20 working days after the receipt of confirmation of your payment.

    (2)All products will be well packed by robust carton or wooden box so as to ensure goods can arrive safely.(3)Multiple shipping methods including express, sea freight, railway and so on for your choice, competitive shipping method will be advised to you.(4)If you go with your own forwarder, we will provide all necessary documents for customs clearance.(5)After shipping, we will remain attentive till goods well received. If you need detailed specification, please feel free to contact us.0.05 Class Multifunctional DC/AC Three Phase Standard Source Calibration device

    Features


    1. can semi-automatically or manually test the basic error of a variety of power frequency meters (voltmeter,ammeter, power meter, frequency meter, power factor meter, phase meter), and test the change value cause by influence of voltage, current, waveform and power factor

    2. can automatically measure the basic errors of electric transducers (voltage transducer, current transducer, power transducer, frequency transducer, power factor transducer), and the change value caused by influence of votalge, current, waveform and power factors etc

    3. can generate distortion wave with 2~31 order harmonic, harmonic number, order, amplitude and phase to fundamental wave all can be program controlled

    4. Power amplifier's working frequency 40Hz~1KHz, good linearity. Current power amplifier is constant-current source, and voltage power amplifier is constant-voltage source

    5. Testing by PC automatic control or manual control, capaple of data analyzing and managing

    6. Can auto calibrate energy meters
