Intelligent Underground Pipeline, Metal pipelines, Route detection And Cable Path Detector
Wuhan GDZX Power Equipment Co., Ltd.- After-sales Service：Provided
- Warranty：1 Year
- Transmitter Output frequency：640Hz, 1280Hz, 10kHz, 33kHz, 82kHz, 197kHz
- Transmitter Output power：10W, 10 levels adjustable, automatic real-time imp
- Transmitter Direct connection output vol：150Vpp.
- Receiver Active detection frequency：640Hz, 1280Hz, 10kHz, 33kHz, 82kHz, 197kHz.
Base Info
- Model NO.：ZXPD3000
- Receiver Power frequency passive detecti：50Hz,60Hz and 250Hz,300Hz (user configurable)
- Volume：Transmitter 280*220*90mm; Receiver 680*120*277mm
- Weight：2.3kg for transmitter and 2.0kg for receiver.
- Charger：Input AC100-240V, 50,60Hz; Output DC8.4V, 2A.
- Operation Temperature：-10-40centigrade
- Humidity：5-90%RH; Altitude<4500m
- Transport Package：Wooden Case or Carton
- Specification：Universal Testing Machine
- Trademark：GDZX
- Origin：China
- Production Capacity：1200sets,Year
Description
Receiver 680×120×277mm
Output DC8.4V, 2A.
Humidity:5-90%RH;
Altitude <4500m
1. Transmitter
1) Output mode: direct output, radiation induction, caliper coupling (optional), fault-checking booster (optional).
2) Output frequency: 640Hz, 1280Hz, 10kHz, 33kHz, 82kHz, 197kHz.
3) Output power: 10W, 10 levels adjustable, automatic real-time impedance matching.
4) Direct connection output voltage: 150Vpp.
5) Overload and short circuit protection.
6) Man-machine interface: 320×240 dot matrix liquid crystal display.
7) Built-in battery: 4 18650 lithium ion batteries, nominal 7.4V, 6.8Ah.
2. Receiver
1) Input mode: built-in receiving coil, flexible caliper (optional), stethoscope (optional), fault checking A-frame (optional).
2) Receiving frequency:
a. Active detection frequency: 640Hz, 1280Hz, 10kHz, 33kHz, 82kHz, 197kHz.
b. Power frequency passive detection frequency: 50Hz/60Hz and 250Hz/300Hz (user configurable).
c. Radio frequency passive detection frequency band: the center frequency is 10kHz, 33kHz, 82kHz respectively.
3) Pipeline detection mode: broad peak method, narrow peak method, sound valley method.
4) Cable identification mode: flexible caliper (optional) intelligent identification and current measurement, stethoscope (optional) identification.
5) Man-machine interface: 320×240 dot matrix liquid crystal display.
6) Built-in battery: 2 18650 lithium ion batteries, nominal 7.4V, 3.4Ah.
3. Other
1) Volume: transmitter 280×220×90mm, receiver 680×120×277mm.
2) Mass: 2.3kg for transmitter and 2.0kg for receiver.

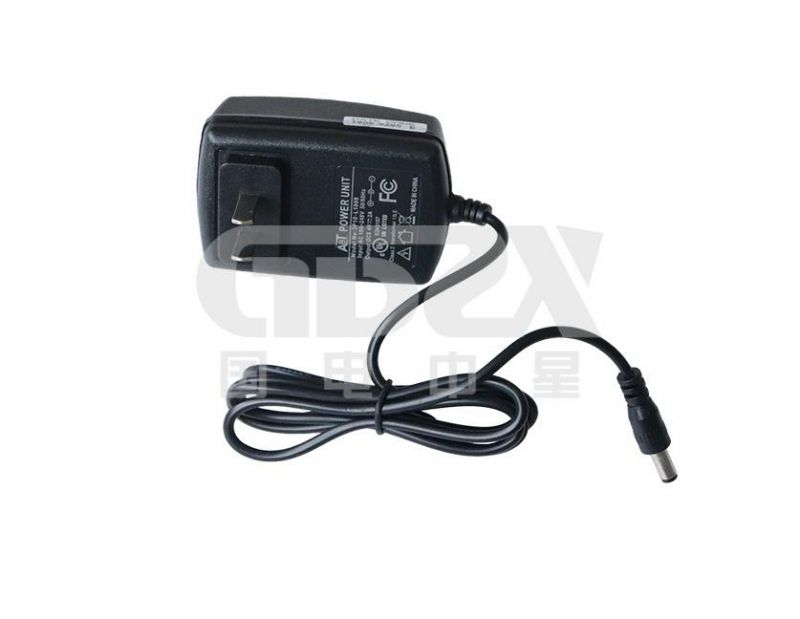

3) Charger: input AC100~240V, 50/60Hz, output DC8.4V, 2A.
4) Operating conditions: temperature: -10ºC-40ºC, humidity 5-90%RH, altitude <4500m.

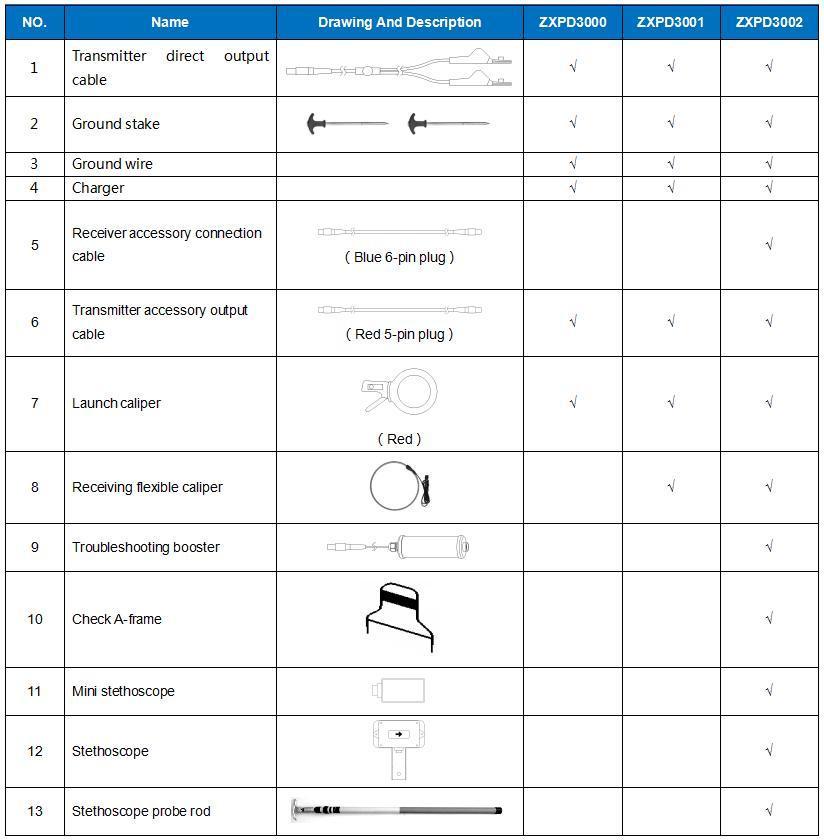

4. Configuration table
Company introduction
Wuhan GDZX Power Equipment Co.,Ltd.is a manufacturer of power test equipment, integrating design, production and sales, providing complete solutions for high-voltage testing and electrical testing services for various power users.The main products include:AC series resonance test device, high voltage test equipment, transformer test equipment, secondary protection / switch test equipment, cable fault tester, arrester test equipment, power metering equipment, standard source series and so on. There are many kinds of products and complete models.
Service and Warranty
Service
* Provide professional consulting service; dedicated salesman and professional technical engineer to answer customer questions.
* Ensure customer get the detailed information about the product in hand.
* Reasonable price, we trust our customers should get the worth what they paid. Quotation stamped and confirmed by Manager.
* Welcome customers visit.
* Being trustworthy, follow the requirements and ensure successful implementation of signed contracts and technical agreements.
* Focus on communication, actively communicate with users, take notes of user's questions and schedule, provide the necessary technical support.
* Move quick and efficient, professional on delivery, installation, debugging, training and others. Warranty* We maintains 100% customer satisfaction, please give us feedback if you fell anything wrong with the product, we will make it right for you.* Our products are guaranteed with one year warranty and life-long tech support.* Provide solutions within 24 hours when there is problems feedback from customer.
PACKING AND SHIPPING
(1)We will ship products within 8-20 working days after the receipt of confirmation of your payment.
(2)All products will be well packed by robust carton or wooden box so as to ensure goods can arrive safely.(3)Multiple shipping methods including express, sea freight, railway and so on for your choice, competitive shipping method will be advised to you.(4)If you go with your own forwarder, we will provide all necessary documents for customs clearance.(5)After shipping, we will remain attentive till goods well received. If you need detailed specification, please feel free to contact us.

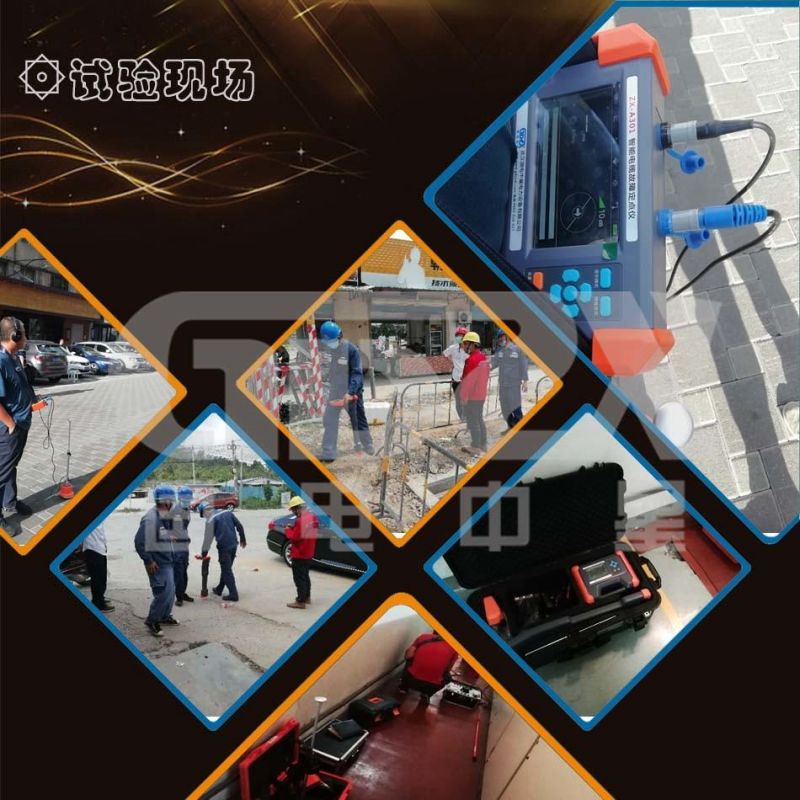

Test cases
