Multi-Functional Fully-Automatic Asphalt Pressure Tester

Chongqing Advanced Technology Co., Ltd.
  • After-sales Service：Response in 12 Hours
  • Warranty：1 Year
  • Measuring Range：(0~100)Kn and Range (0~3)Kn
  • Displacement Sensor：Range (0~20)mm
  • Total Power Consumption：≤700
  • Servo Motor Power：1.5kw

Base Info

  • Model NO.：APT-M
  • Test Lifting Speed：(1~50) mm ,Min
  • Lifting Rate for Pressure Machine：3.(50±5)mm,Min
  • Color Touch Screen Size：800×480mm
  • Display：LCD
  • Powe Supply：Three Phase(380±10%)V,3A,50Hz
  • Inner Dimension of Environment Box：650×340×400(mm)
  • Instrument Dimension：750 mm×695 mm×1775mm
  • Application：Bitumen Mixture Testing
  • Transport Package：Plywood Case
  • Specification：Automatic
  • Trademark：AI
  • Origin：China
  • HS Code：9031809090
  • Production Capacity：20 Sets,Month

Description

1Pressure 1 measurement range and accuracyrange (0~100)kN, accuracy ±0.01kN2Pressure 2 measurement range and accuracyrange (0~3)kN, accuracy ±0.01kN3Left displacement sensor range and accuracyrange (0~20)mm,accuracy ±0.001mm4Right displacement sensor range and accuracyrange (0~20)mm,accuracy ±0.001mm5Basic configurationuniaxial compression measuring device,bending measuring device,splitting fixture,stability holder6Servo motor power1.5kW7Test Lifting speed(1~50) mm /min8Fast lifting speed50mm/min9Refrigeration compressorAC(220~240)V 6.5A10Color touch screen size800×480mm11Heater powerAC220V,1.5kW12Environment box inner dimension650×340×400(mm)13Power supplythree phase(380±10%)V,3A,50Hz14Dimension750 mm×695 mm×1775mm(L×W×H)

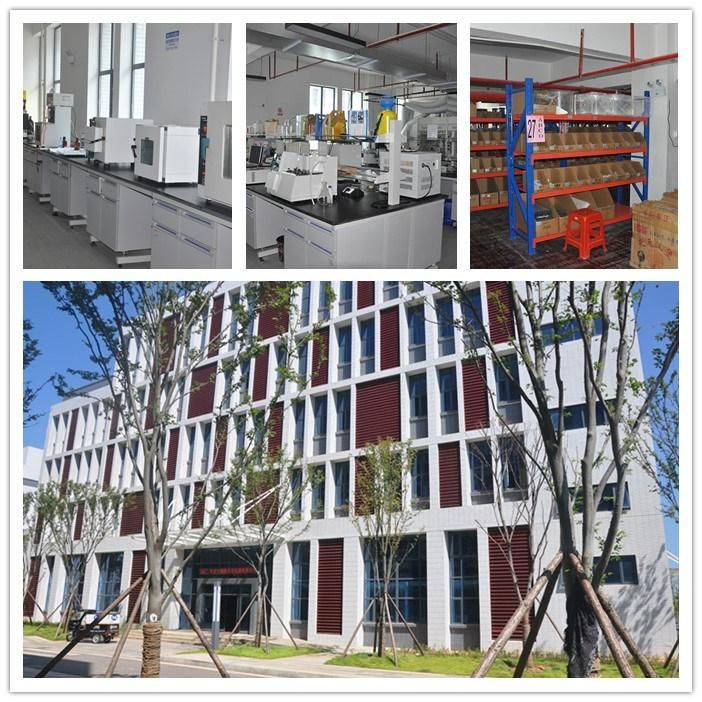

Factory overview

Multi-Functional Fully-Automatic Asphalt Pressure Tester
Customer Feedback

Germany
Multi-Functional Fully-Automatic Asphalt Pressure Tester
USA
Multi-Functional Fully-Automatic Asphalt Pressure Tester
Package
Multi-Functional Fully-Automatic Asphalt Pressure Tester
FAQ
1.What's the delivery time?
About 15 days.

2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.

3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.

4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD150/Day for every person.
