Gdyj-502 Transformer Breakdown Voltage Test Unit
Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.- After-sales Service：Life Time Support
- Warranty：1 Year
- Type：Insulating Oil Bdv Tester
- Display：256*128 LCD
- Output Voltage：AC 0~80kv
- Rate of Voltage Rise：2kv,S±10%
Base Info
- Model NO.：GDYJ-502
- Measuring Precision：3%Rdg+0.3%Fs
- Test Times Setting：1-9
- Transport Package：Wooden Case
- Specification：71*42*53CM
- Trademark：Gold
- Origin：Chongqing
- HS Code：9031809090
- Production Capacity：300PCS,Month
Description
Specifications:
GDYJ Series Insulating Oil Dielectric Strength Tester
Model | GDYJ-501 | GDYJ-502 | GDYJ-502A |
Output Voltage | AC 0~80KV/0~100KV | AC 0~100KV | AC 0~80KV |
Rate of Voltage Rise | 2KV/s±10% | 0.5/2/3/5 KV/s±5% | 2KV/s±10% |
Max. Time Setting | 0~9mins | 9mins | 0~99 seconds |
Test Precision | 3% RGD+0.3%FS | 3% RGD+0.3%FS | 3% RGD+0.3%FS |
Max. Data Storage | 100 groups | 100 groups | 50 groups |
Power Supply | AC220V±10% 50/60Hz | AC220V±10% 50/60Hz | AC220V±10% 50/60Hz |
Environment Temp. | 0~50Centigrade | 0~50Centigrade | 0~50Centigrade |
Related Humidity | <80%RH | <80%RH | <80%RH |
Dimension | 420*380*410mm | 620*430*330mm | 420*380*410mm |
Weight | 28kg | 41kg | 28kg |

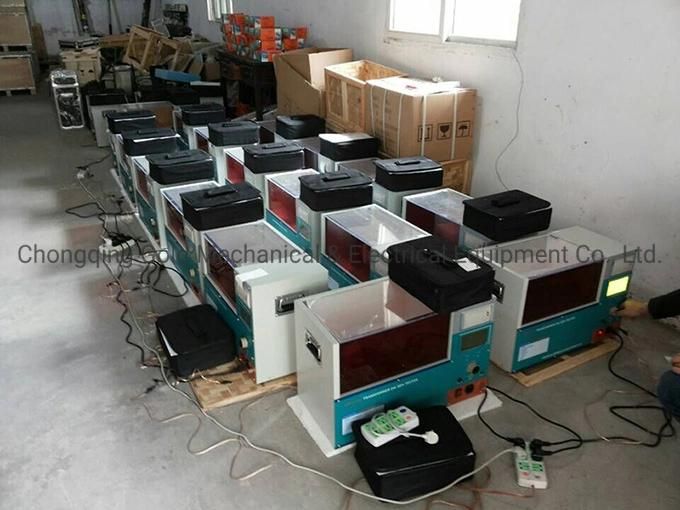

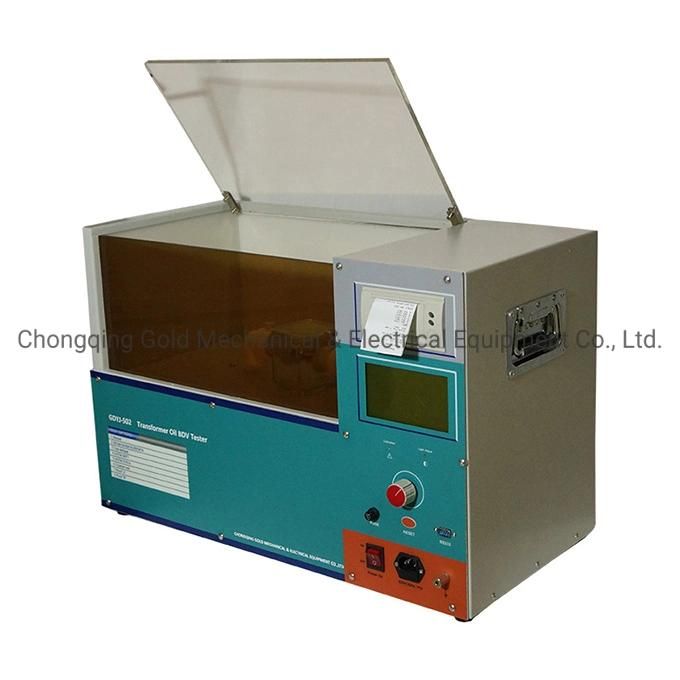

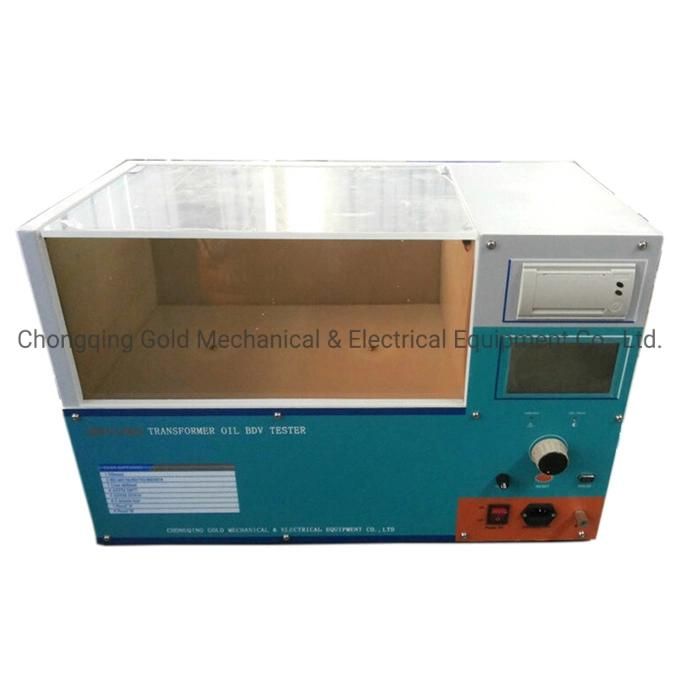

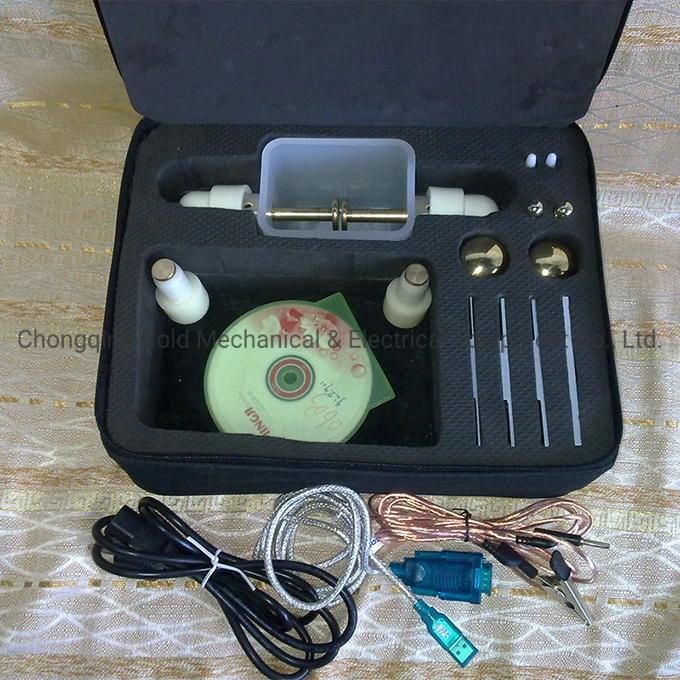

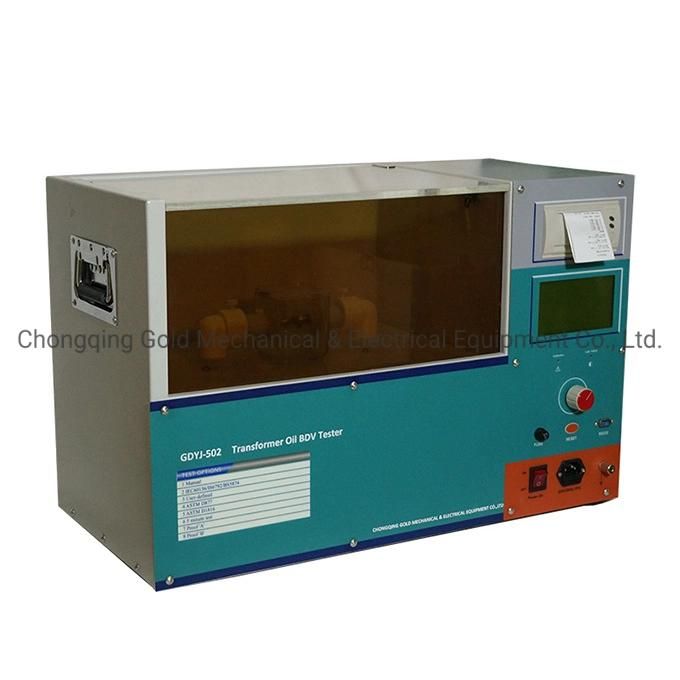

Item Show
