Up to 6 mm2Electrolysis time5~30 secPicture ingestionHigh quality, low distortion optical instrument with 10x eyepieceAmplify multiple0.75x, 1x, 1.5x, 2.0x, 2.5x, 3.0x, 3.5x, 4.0x, 4.5x, 5.0x(0.5 stuck position shift technology)Tooth pitch multiple0.75x, 1x, 1.5x, 2.0x, 2.5x, 3.0x, 3.5x, 4.0x, 4.5x, 5.0x(0.5 stuck position shift technology)Observation range1.2~8.2 mm(X-axis direction)Observation feature 1Ultra-bright white LED light source can be controlled infinitelyObservation feature 2X Y Z-axis mobile platform with slightly tuningRange+/- 6 mm(Three-dimensional)Analysis and file recordJapanese industrial HD video system 3 megapixel camera, USB 2.0, and Section-ms softwareTool certification

Enhanced measurement tools including compression ratios have been certified in the

automotive/home appliance/IT industry

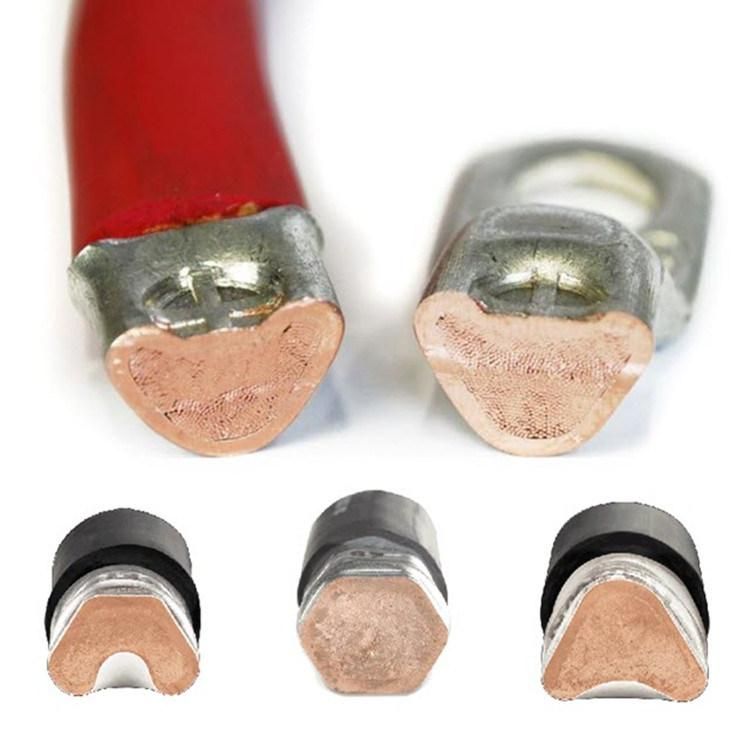

• Mainly used for cross section testing of terminal after crimping

• Exquisite and portable in structure design, and easy to operate

• High quality optical instrument with low distortion and image capture module

• Optical instrument with safety protection device, and easy for transportation

• Automatic cutting module, with high-speed grinding module with fine adjustment

• Testing result is automatically generated from the relevant software

• The fully automatic terminal cross section analyzer is a precision detection and analysis equipment specially developed for the quality inspection of the wire harness industry.

• The Crimp Cross-sectional Analysis System is composed of cutting and grinding integrated equipment, optical sampling, corrosion cleaning, cross section image acquisition system, wire harness terminal picture measurement and analysis system imported from Japan.

• The latest patented technology, cutting and grinding are completed in one time, which fully guarantees the flatness requirement of the terminal.

• The complete inspection system can complete the processing analysis of one terminal in 3 minutes, which greatly improves the speed of the quality inspection of the terminal section.

• The operation is simple, convenient and fast. It adopts Japan's high-definition image acquisition system and ensures accurate measurement analysis to protect your production.

• Fully automatic precision integrated automatic cutting and grinding equipment, German motor, X-axis and Y-axis stroke control using Japanese Panasonic servo motor.

• Adopt Japanese Mitsubishi PLC controller. Professional terminal section analysis software with encryption lock and CD


• The portable terminal cross section analyzer is a precision detection and analysis equipment specially developed for the quality inspection of the wire harness industry.

• The Crimp Cross-sectional Analysis System is composed of cutting and grinding integrated equipment, optical sampling, corrosion cleaning, cross section image acquisition system, wire harness terminal picture measurement and analysis system imported from Japan.

• Quick sample making and monitoring can be done with our crimp cross-section analysis system.

• The ergonomic design and modular combination make the operation more convenient and fast.

• The processing and analysis of one terminal can be completed within 5 minutes, which greatly improves the speed of terminal cross section quality inspection.

• The operation is simple, convenient and fast. It adopts Japan's high-definition image acquisition system and ensures accurate measurement analysis to protect your production.

• High performance microscopes and special software can measure length and calculate area simply and correctly.

• When observing objects in ultra-high definition, it can generate upright three-dimensional spatial images with strong stereoscopic sense, clear imaging and clear and wide imaging.

For small and light products packed by cartons,for large and heavy products packed by wooden



Product show:

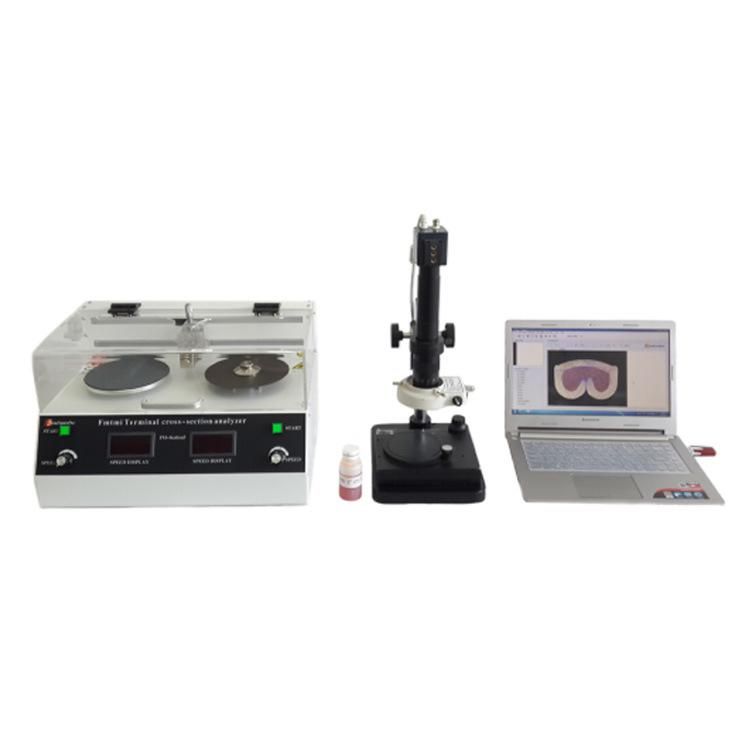

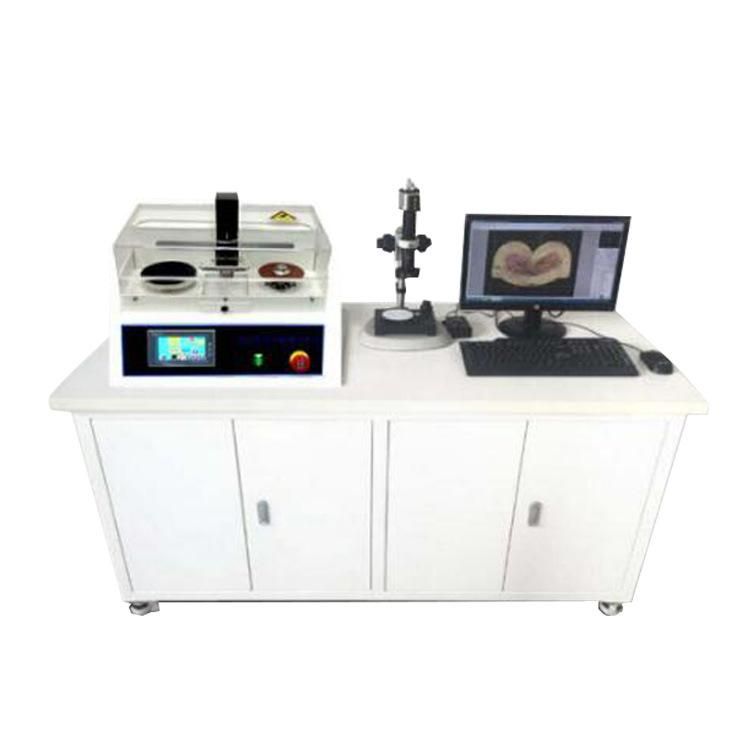

It's SE3 Terminal Cross Section Analysis System (All in one type/integrated model)

Its SE4 Analysis System for Crimp Cross Section (Full automatic type)


But don't include the counter/desk when shipment

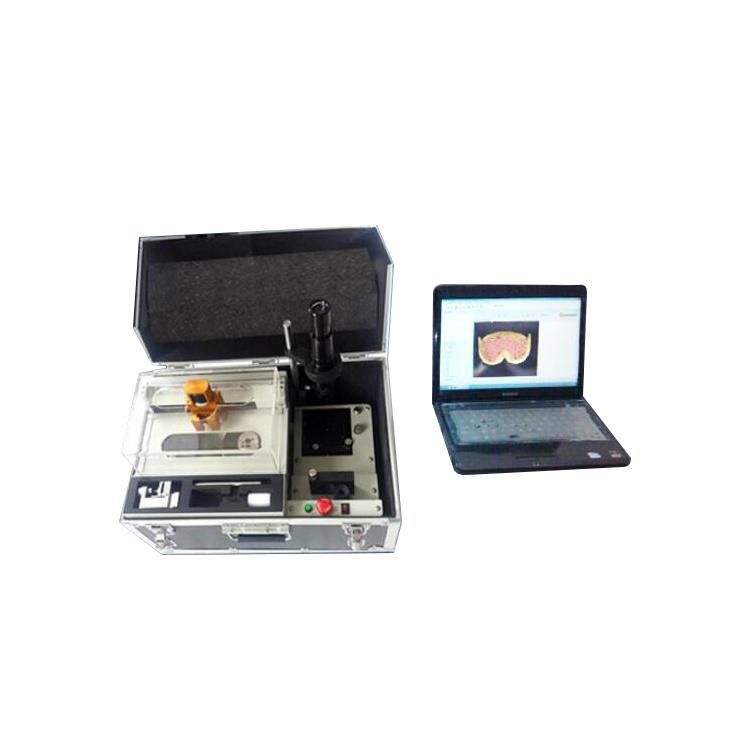

SE5 Portable Crimp Cross Sectioning Analyzer Equipment (easy to carry out)



Machine processing samples:






Our service

We provide:

· Best products and factory price.
· On-time delivery and the shortest delivery time.
· 1year warranty. If our products cannot function properly within 12 months,
we'll offer spare parts for free and you need to pay for the delivery.
· OEM and customized service.
· User manuals will go with relative machines.
· QC: All products will be checked before delivery.
· Compensation: If any unqualified product is found, we'll pay the
compensation or send new qualified products to customers
· Maintenance & Repair: In case of any maintenance or repair need,
we'll help to find out the problem and offer relative guidance.
· Operation Guidance: If you have any problem with operation,
please feel free to contact us.
