• Model NO.：TP-2100
• Method of Testing：Mpu Controlled Electrolysis(Karl Fischer)
• Water Content Range：0.0001%(1ppm)-100%
• Transport Package：Wooden Case Suitable for Any Transportation
• Specification：SGS, CE, ISO
• Trademark：TOP
• Origin：Chongqing, China
• HS Code：8421299090
• Production Capacity：500sets,Month

Basic Info.

Model NO. TP-2100 Method of Testing Mpu Controlled Electrolysis(Karl Fischer) Water Content Range 0.0001%(1ppm)-100% Transport Package Wooden Case Suitable for Any Transportation Specification SGS, CE, ISO Trademark TOP Origin Chongqing, China HS Code 8421299090 Production Capacity 500sets/Month

Product Description

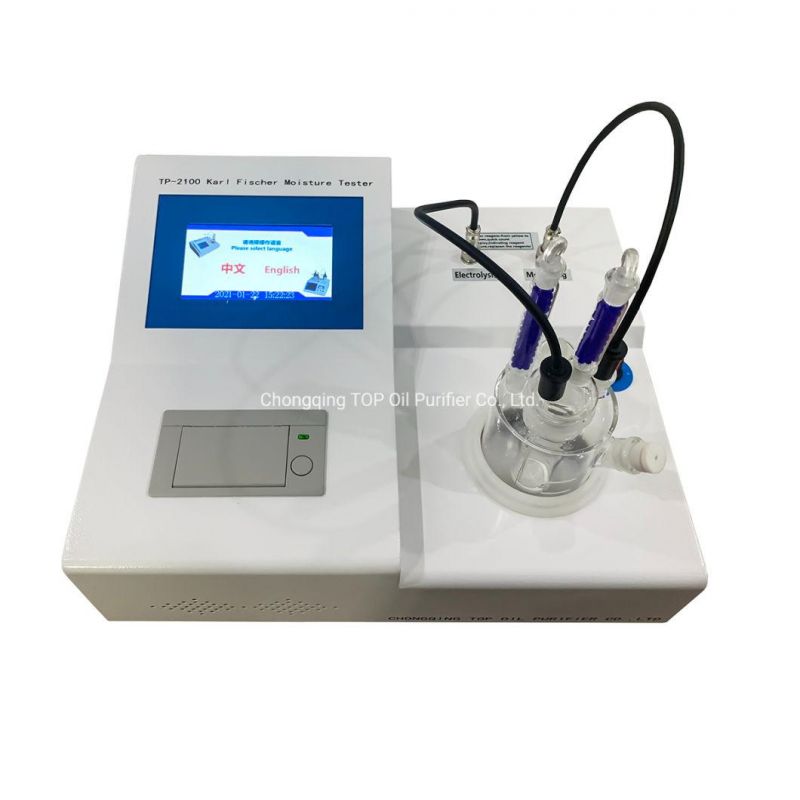

Karl Fischer Moisture Sensor, TP-2100, accurate, automatic, equiped with powerful Itanium and double CPU
Description:
The Determinator adopts the global recognized classical moisture testing method- Karl Fischer Coulometric Method. This method is the most concentrated and accurate method, with advantages of high accuracy and low cost. As a universal standard and analyzing method, it can quickly analyze the moisture content in liquid, solid and gas and directly display testing results, with testing range from 0.0001%(1ppm) to 100%. Therefore, this testing method has been widely used in institutions and enterprises of petroleum, chemical industry, power, pharmaceuticals, pesticide, railways, research, etc.
Whole testing process is automatically controlled by the determinator itself, during which auto-stirring and analyzing would be finished within 60seconds, and results would be displayed directly. Totally closed titration system avoids damage to operator from reagent. Equipped with 500ml Karl Fischer Reagent, which could test about 1000 times sample continuously, completely avoiding big deviations of other moisture testing method and thus improving quality index of products.

Application Area:
Liquid
Chemical Industry: Alcohols, ethers, esters, alkenes, benzenes, amines, organic solvents, phenols and other organic products applicable to Karl Fischer Method for determination
Petroleum and Power Industry: Insulation Oil, Transformer Oil, Turbine Oil, etc.
Pharmaceutical Industry: Medicine materials
Pesticide Field: Emulsifier
Other Industry: Electrolyte of lithium battery
Solid
Various mineral salt, citric acid, explosives, paraffin and other solids with good solubility
Gas
Natural gas, liquefied gas, Freon, butadiene, chloromethane, etc.

Features
1. Equipped with powerful Itanium and double CPU; Advantages of direct A/D conversion of testing electrode data.
2. Equipped with 7 inch color touch LCD with Chinese display. The determinator has function of reagent failure prompt, convenient to extend service time of reagent.
3. Completely closed titration system avoids direct touch between people and agent as well as influence of environmental humidity.
4. Outer shell is made of high-quality cold-rolled steel plate with electrostatic sprayed surface, anti-corrosion and easy to clean.
5. Auto-control and compensation of electrical current via MCU contributes to quick balance of reagent.
6. Auto-control electrolysis current within 430mA ensures high sensitivity and fast analyzing speed.
7. Preinstalled with cubature (including 3 pieces of formula), statistical calculation (including average calculation, standard deviation calculation and rate of change calculation) and elementary arithmetic, with the advantages of auto-analysis and calculation.
8. Determinator automatically tests sample, analyzes and displays results and calculates the average value of several times of test.
9. Infinite capacity of results storage is convenient to consult history testing data whenever necessary.
10. Automatically calculate and print below content: Ug / ppm / percentage / mg/L / sample number / experimenter / testing date, etc.
11. Network management is available via connection with laptop and microcomputer communications through USB or RS232 interface.
12. Operation via Multilanguage display is available. Determinator programs can be upgraded if accordingly if related national standard is revised.


Method of Display :	7 inch color touch LCD with  Chinese  display
Method of Testing	MPU controlled electrolysis(Karl Fischer Coulometric Method)
Rate of Electrolysis :	2.4mgH2O/min
Electrolysis Current :	A uto-control within 430 Ma
Testing Range :	0.01 ugH2O- 200 mgH2O
Range of  Water Content :	0.0001%(1ppm)_100%
Sensitivity:	0.01 ugH2O
Accuracy :	Water Content:  2 ugH2O -100 ugH2O ; Deviations≤±1ug, Water  Content:  100 ugH2O -1000 ugH2O; Deviations ≤±2.9ug, W ater Content: >1000ugH2O; Deviations ≤±0.2%( excluding deviations of sample injection )
Drift Compensation :	A uto-control via MPU
Stirring Speed :	Adjustable and steerable
End-point Indication:	LCD display  /output via printing /  voice warning  /  end-point indication light
Data Input :	I nput via touch screen
Sample Number :	N umbered by users
Storage :	I nfinite storage capacity
Printer :	T hermal printer, high- speed, low -consumption, with 44  millimeter -wide paper
Printing Content :	ug     /   ppm   /  mg/L  /  sample number  / experimenter  /  date
Calendar/Clock :	automatic display and print analyzing time and date
Self-checking :	B reakdown self-checking
Special Function :	W ork independently or connected with laptop or other computers
Power Consumption :	< 40W
Dimension :	390×270×190mm
Working  Environment:	T emperature:  5 °C -40 °C , Humidity: < 85%
Power Supply :	AC220V±10% 50HZ±2.5HZ
Weight:	A bout  7 kg
