• Model NO.：CSA-0304
• Electrolytic Copper：Purity of 99.9%, Thickness of 0.125- 0.250mm
• Transport Package：Wooden Case
• Specification：CE,ISO
• Trademark：TOP
• Origin：China
• HS Code：9027809900
• Production Capacity：200 Sets ,Month

Basic Info.

Model NO. CSA-0304 Electrolytic Copper Purity of 99.9%, Thickness of 0.125- 0.250mm Transport Package Wooden Case Specification CE/ISO Trademark TOP Origin China HS Code 9027809900 Production Capacity 200 Sets /Month

Product Description

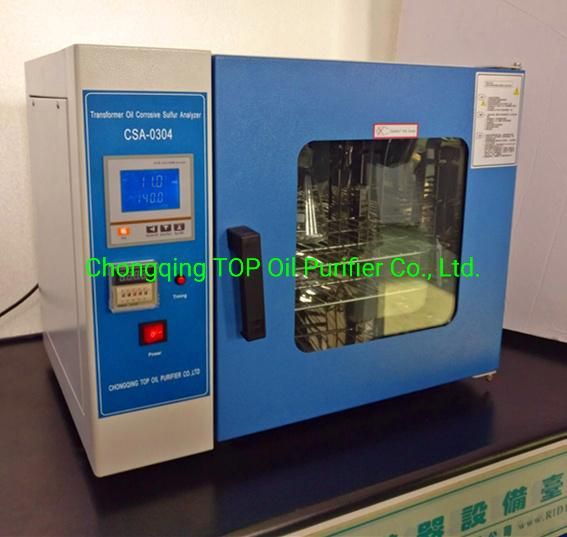

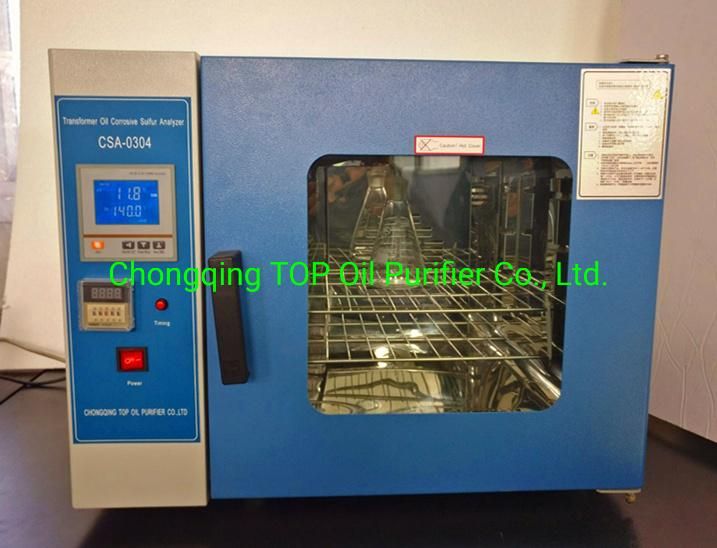

Newly ASTM D1275 Corrosive Sulfur Tester for Transformer Oils (CSA-0304)


Product Application
ASTM D1275:Standard Test Method for Corrosive Sulfur in Electrical Insulating Liquids
This corrosive sulfur analyzerinstrument is manufactured as per SH/T0304 electrical insulation oil corrosion sulfur test method and applicable to determine the corrosion sulfur content in electrical insulation oil refined from petroleum product.

Product Description
Transformer oil corrosive sulfur analyzer is designed and manufactured according to the standard SH/T0304-1999 "Electrical Insulating Oil Corrosive Sulfur Test Method".This equipment is suitable for qualitative analysis of corrosive sulfur in transformer oil, and normally adopts copper corrosion detector to test.

Transformer oil contains some substances that can cause corrosion under certain using conditions. And Transformer Oil Corrosive Sulfur Analyzer is used to detect the two kinds of non ideal impurities: free sulfur and corrosive sulfur.

In many situations, transformer oil is exposed to corrosive metals.Due to the existence of harmful corrosive sulfide,it can cause corrosion of these metals.

The extent of corrosion depends on the amount, type, time and temperature of the corrosive substances. So in order to detect of these non ideal impurities, can not use the quantitative method, but a method of identification of hazardous substances.





Technical Parameter

3. Voltage adjust power: 600 W

5. Power supply: 220±10V, 50Hz.

Features
1. The inner parts is made of mirror stainless steel plate by argon arc welding.
2. The shell is made of high quality steel plate and sprayed with plastic, and the appearance is beautiful and novel.
3.Equipped with a large area of double tempered glass observation window, for the observation of workroom status.
4. Vertical type:vertical forced convection to ensure the temperature uniformity in the workroom.
5. Using digital display microcomputer temperature controller, accurate and reliable control. Precision: 0.1ºC (display range).
6. With timing function, temperature control protection function, equipped with fan stop switch.
7. The insulation system uses super fine glass fiber to fill the heat preservation zone, and the inner and outer parts of the joint adopt nonmetallic high-temperature resistant materials, which can effectively reduce the high temperature conduction.
8. Hot air circulation system is composed of imported original fans and advanced air ducts which can operate continuously at high temperature.
9. Independent temperature limiting alarm system, automatically cut-off if exceed the limit temperature , to ensure the safe operation of the experiment without accidents (optional).
10. in one table structure.
