• Model NO.：TP-6696
• Trademark：TOP
• Origin：Chongqing, China
• HS Code：9027809900
• Production Capacity：200 Set,Month

Basic Info.

Model NO. TP-6696 Trademark TOP Origin Chongqing, China HS Code 9027809900 Production Capacity 200 Set/Month

Product Description

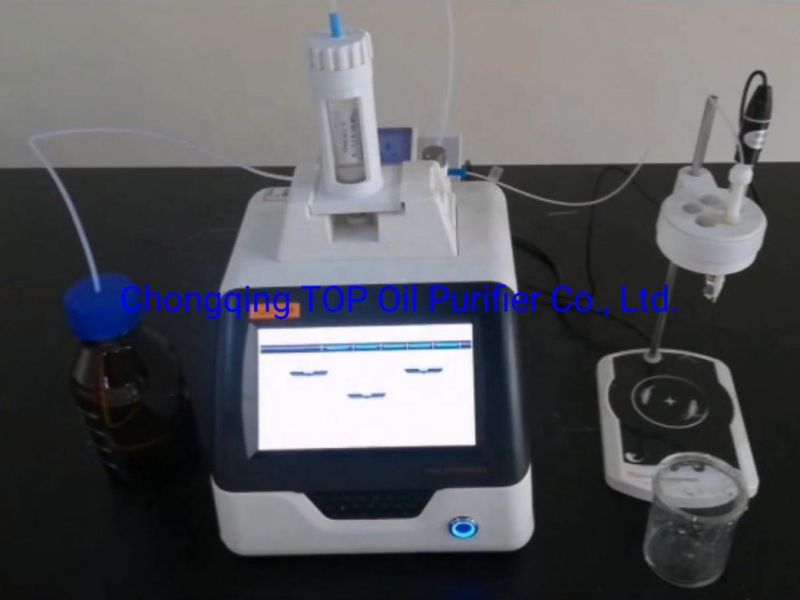

Automatic Engine Oil TAN TBN Tester Potentiometric Titrator(TP-6696)

Application:
TP-6696 TAN/TBN titrator conforms to the ASTM D664 Standard Test Method for Acid Number of Petroleum Products by Potentiometric Titration and ASTM D2896 Standard Test Method for Base Number of Petroleum Products by Potentiometric Perchloric Acid Titration the apparatus is used in determining total acid and base number in petroleum products by potentiometric titration.




Features
1.Four electrodes can ensure to test TAN and TBN
2. Zero-dead volume solenoid valve,changing easily for PTFE burette. Ultrathin stirring device, adopt coil             realize magnetic Stir.
3.Accuracy closed-loop control for volume.
4.High-accuracy burette accurate to 0.005mm.
5.LCD touch screen.
6.Wide operating voltage range 110~240V,


Technical parameters
1.Measurement range: pH:(0.00~14.00)pH;mV:(-1999.0~1999.0)mV;Temperature:(0.0~100.0)°C.
2.Resolution:pH :0.01pH;mV:0.1mV;Temperature: 0.1°C.
3.Electronic unit accuracy:pH :±0.01pH ±1 bit ;mV:±0.2mV±1 bit ;Temperature:±0.3°C±1 bit;
4.Sensitivity of controlling titration: ±2mV.
5.Repeatability of titration analysis: 0.2%.

Normal operating conditions:
1.Ambient Temperature: (5.0~35.0)°C;
2.Relative Humidity: ≤80%;
3.Power supply: (100--240)V;frequency:(50/60)Hz;
4.Without disturbing by electron magnetic field except terrestrial magnetic field.

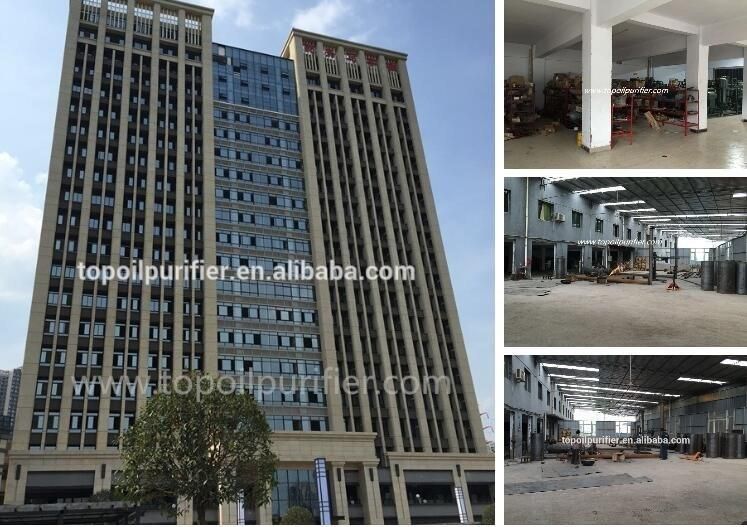

About us:

Chongqing TOP Oil Purifier Manufacture Co., Ltd is a professional leading manufacturer of oil purifiers and oil testers. We takes the mission of existing on the basis of excellent quality as well as developing technical innovation, and introduces advanced technology.

TOP's pruducts are widely used in the fields of electric power, petrifaction, mineral, shipbuilding, steel construction, bridge, automobile and railway. They help a lot with reducing energy consumption and also environmental pollution.

Top will as always make great effort to and also be proud of supplying you the best oil purifying equipments.

You are much welcome to visit our website:  http://cnfilter8.en.made-in-china.com




Our oil tester/ analyzer:  Series IIJ-II Insulating oil breakdown strength tester(oil BDV tester) Series HTJS-H Insulating oil dielectric tester (dielectric loss tester for insulating oil) Series HTJS-V Tan-Delta Tester (anti-jamming dielectric loss tester for HV electrical equipment) Series TP-3A Water content tester/ moisture sensor  Series TPV-8 Viscosity analyzer  Series TPC-3000 Flash point analyzer (close cup)  Series TPO-3000 Flash point analyzer (open cup)  Series CL-3 Interfacial tension analyzer
