Advanced Six-Phase Protection Relay Test Set Equipment
Kvtester Electronics Technology Co., Ltd.- Max Diameter of Workpiece：>3200mm
- Mass Scope of Workpiece：20kg
- Type：Universal Testing Machine
- Maxcapacity：<1000KN
- Accuracy Grade：0.5
- Load Way：Electronic Load
Base Info
- Model NO.：ZCAR-1600-022
- Loading Method：Static Load
- Display：Digital
- Control：Computer Control
- Weight：0-100Kg
- Power Source：AC220V
- Oil Cylinder Position：Top
- Power Supply：220V 50Hz
- Size：400*360*180mm3
- Warranty：1 Year

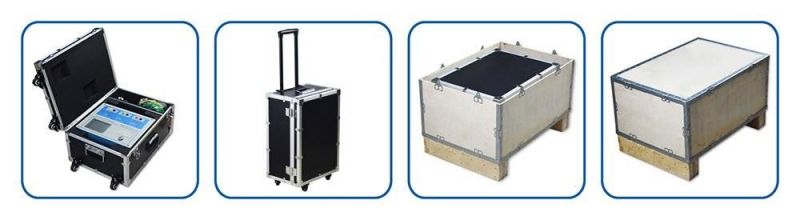

- Transport Package：Aluminum Alloy Packing Box Inside Andwooden Box O
- Specification：390*460*220
- Trademark：KvTester
- Origin：China
- HS Code：9031809090
- Production Capacity：500,Month
Description
AC current source
Amplitude range: 6 × (0-30A) Accuracy: 0.2%
Six-phase current parallel output max: 180A
Phase current long-term allowable working values: 10A
Power: 260VA / phase
DC current source
phase power: 180VA
phase accuracy: 0.2%
AC voltage source
Amplitude range: 6 × (0-120V) Accuracy: 0.2%
Line voltage range: 0--240V
Phase voltage / line voltage Output power: 70VA / 140VA
DC voltage source
Phase voltage output amplitude: 0~± 160V Accuracy: 0.2%
Line voltage output amplitude: 0~± 320V
Phase voltage / line voltage Output power: 80VA / 160VA
Switch Terminals
switch input terminals: 8 pairs
Air access point: 1--20mA, 110V internal device active
Potential flip: 0-6VDC low 10-250VDC high
Switch output terminals: four pairs of empty contacts
breaking capacity: AC:250V / 0.5A; DC:60V / 0.5A,
Max. measurement time
9999s
Frequency range
0--1000Hz Accuracy: 0.001Hz Harmonic times: 1--20 times
Size
400x360x180mm3 Weight: about 20KG
Power source
AC220V ± 10%
Equipment Accessories List
