Factory Direct Sale New Type 10A Power Transformer Demagnetization Analyzer
Wuhan GDZX Power Equipment Co., Ltd.- After-sales Service：Provide lifelong after-sales service
- Warranty：1 Year
- Degaussing current：1A ~ 10A adjustable
- Working voltage：AC220V
- Weight of host：5Kg (excluding test line)
- Host volume：320*250*250mm
Base Info
- Model NO.：ZXXC-10A
- Transport Package：Carton,Wooden Case
- Specification：With the change of technical scheme
- Trademark：GDZX
- Origin：Hubei
- Production Capacity：500 Pieces,Month
Description
ZXXC-10A power transformer demagnetization analyzer is a special equipment to eliminate the remanence of large power transformers, with demagnetization and verification demagnetization functions. It plays a very important role in protecting the transformer from the impact of inrush current, safe operation and prolonging transformer life.
Features1. The instrument adopts a new ac/DC frequency conversion attenuation principle;
2. Flexible test wiring, only for any phase demagnetization can achieve the purpose of demagnetization;
3. With automatic steady current judgment, 16-bit AD data acquisition and processing functions;
4. One-button test, optional: one-button strong, standard and fast demagnetization mode;
5. Fast demagnetizing: demagnetizing is reduced from the traditional 30 minutes to the minimum 2 minutes;
6. Obvious demagnetization effect - increased from 80% to more than 90% in a single time;
7. Simple wiring.
8. The interface adopts LCD screen, which is clear and intuitive;
9. It is suitable for eliminating residual magnetism before operation of large power transformers and transformers above 35kV; Especially for 330kV and above voltage level of large capacity transformers;
10. The product is small in size and light in weight, so it is very suitable for the site.
Technical Indicators
1. Demagnetization current: 1A ~ 10A adjustable
2. Demagnetization mode: strong, standard and fast demagnetization mode
3. Demagnetization time: respectively: 10/5/2 minutes/time (about)
4. Demagnetizing effect: more than 90% in strong mode/more than 80% in single fast mode/single time
5. Degaussing progress: 0 ~ 100% automatic degaussing process
6. Working voltage: AC220V (± 20%)
7. Operating temperature: -10 ~ 55ºC
8. Host weight: 5Kg (excluding test line)
9. Host volume: 320*250*250mm

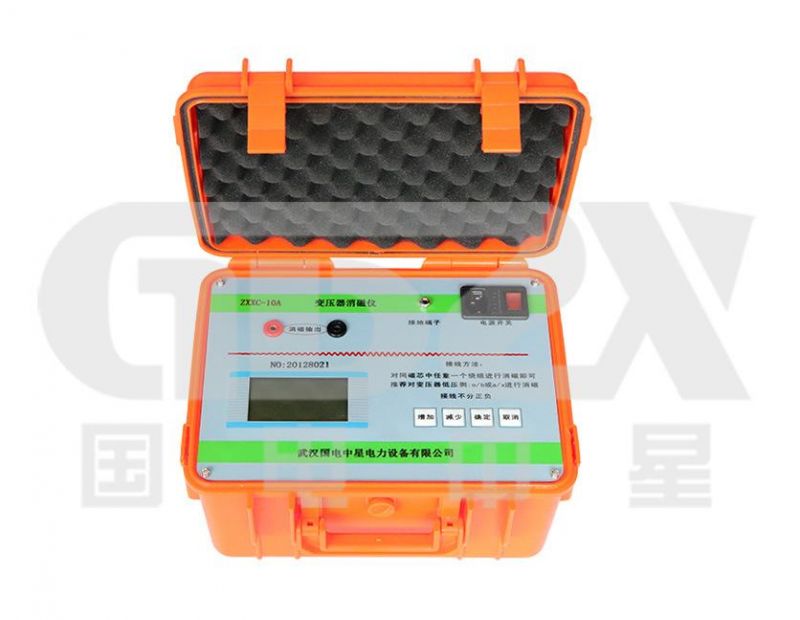

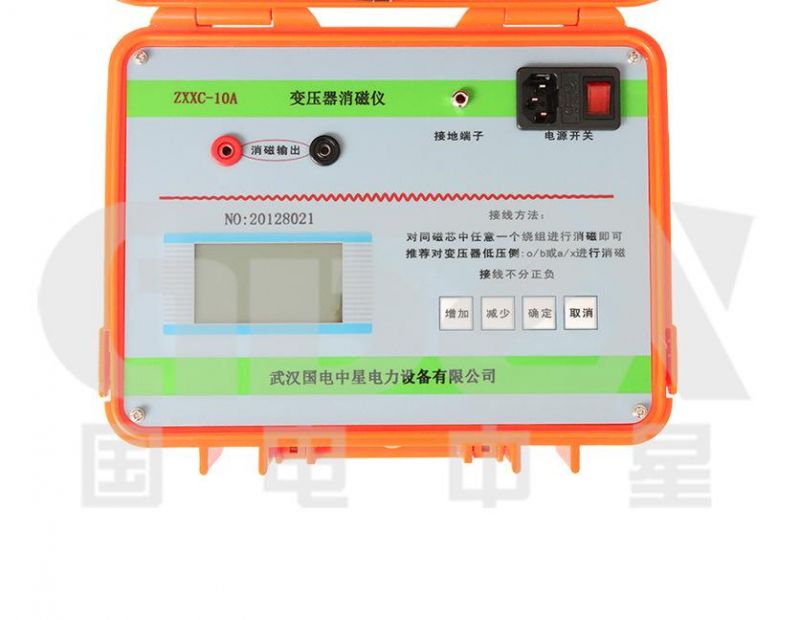

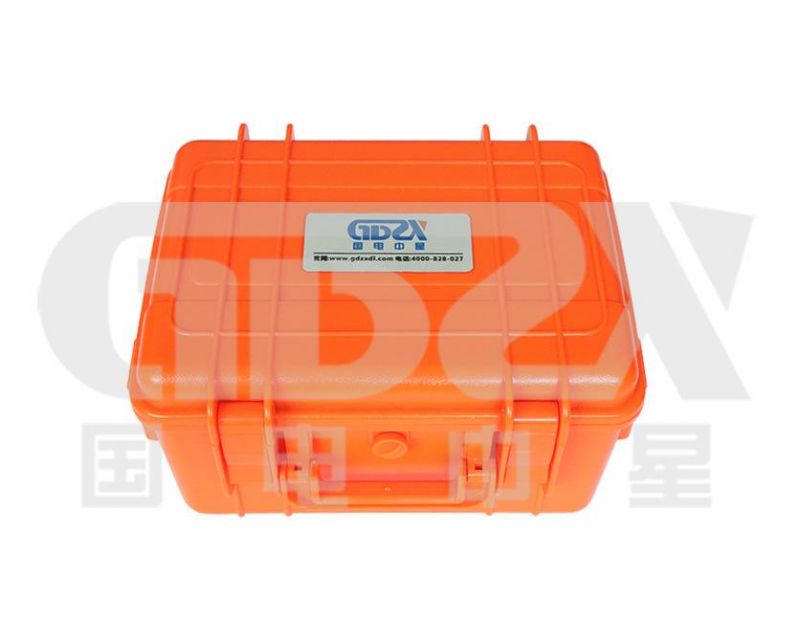

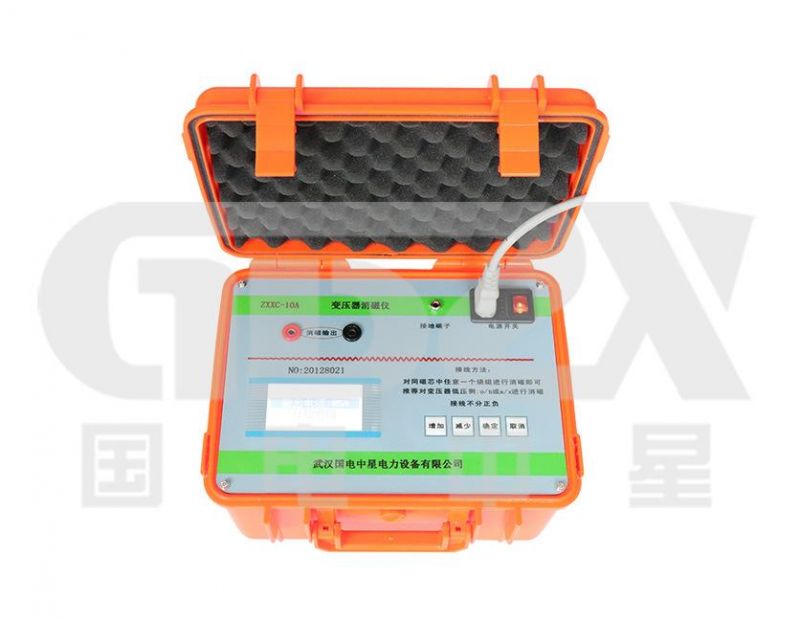

Product pictures
About GDZX
Wuhan GDZX Power Equipment Co.,Ltd.is a manufacturer of power test equipment, integrating design, production and sales, providing complete solutions for high-voltage testing and electrical testing services for various power users.The main products include:AC series resonance test device, high voltage test equipment, transformer test equipment, secondary protection / switch test equipment, cable fault tester, arrester test equipment, power metering equipment, standard source series and so on. There are many kinds of products and complete models.
