Test Instrument

Cement Fineness Sieve Analysis Test Soil Laboratory Sieving Machine Standard Test Sieve

Xinxiang Dahan Vibrating Machinery Co., Ltd.
  • After-sales Service:Provide
  • Warranty:Provide
  • Product Name:Test Screen
  • Screen Grid Diameter:200mm
  • Layer:1-8
  • Vibration Frequency:1440n,Min

Base Info

  • Model NO.:200mm
  • Vibration Amplitude:1-4mm
  • Exciting Force:3kn
  • Chassis Level:<=0.6mm
  • Motor Power:0.12kw
  • Power Supply:220.50 V.H2
  • Certification:ISO9001:2008, CE
  • Transport Package:Plywood Case Complying with Ippc Rules.
  • Specification:ISO9001: 2008, CE
  • Trademark:Dahan
  • Origin:Xinxiang
  • HS Code:84379000
  • Production Capacity:50 Sets in One Week

Description

Overview Product Description

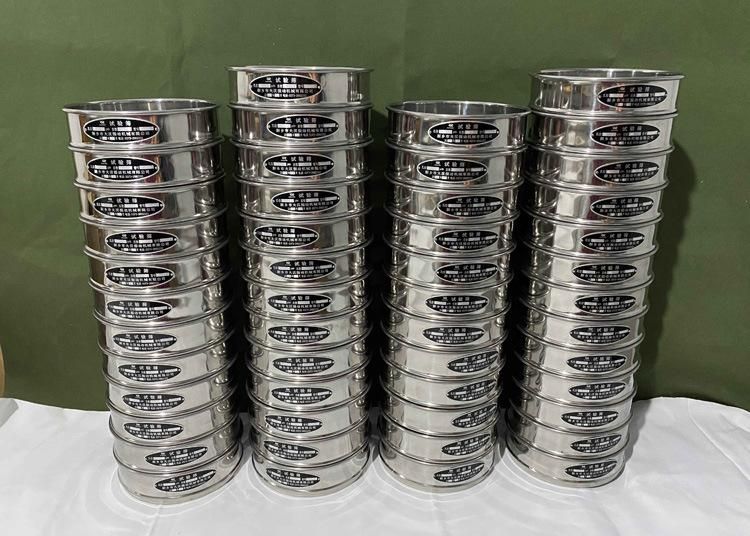

Φ200 international standard test sieve
Φ200 test sieves according to the screen surface material into a metal wire cloth test sieves and metal perforated plate test sieves. Test sieves of metal wire cloth adopt national standards GB / T6003.1-1997 production. Its basic mesh size is 2.36mm-0.038mm, in line with international standards ISO3310-1: 1990 R20 / 3, R20, R40 / 3 series, the screen is made of brass, bronze, stainless steel. Test sieves of perforated metal plate using the national standard GB / T6003.2-1997, in line with international standards ISO3310-2: 1990 R20 / 3, R20, R40 / 3 series, the screen is made of copper, and electrochemical processing. Cement Fineness Sieve Analysis Test Soil Laboratory Sieving Machine Standard Test SieveΦ200 test sieve frame, screen cover, made of high quality stainless steel sieve bottom refined.

Detailed PhotosProduct ParametersCertifications



Packaging & Shipping



Company Profile

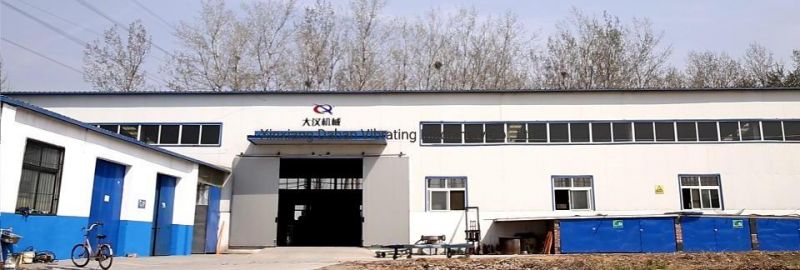

Cement Fineness Sieve Analysis Test Soil Laboratory Sieving Machine Standard Test SieveXinxiang Dahan vibrating machinery CO., LTD.is located people road. we have professional engineers to process and testing equipment. we are always producing high quality products. We have gained ISO9001:2008 .
Our main products include: Vibrating screen series:Three-D vibration sieve,Rotary vibrating sieve,Round vibration screen,Flour sifter,ultrasonic vibrating screen,Horizontal airflow sieve,Vertical airflow sieve, Centrifugal sieve,Linear vibration screen,Linear sieve,Lab test sieve machine and so on;Products are widely used in chemical, food, medicine, environmental protection, ceramic, foundry, construction, mining, abrasive, etc. Products are exported to Germany, Russia, Vietnam, Singapore, Indonesia and other European and American countries and East Asia, Southeast Asia all over the world.

FAQ

Q:What is the real delivery time of your factory?

A: 7 to 10 working days for general series products, meanwhile, customized products would need 20 days to 40 days based on different situations.
Q: How do you ensure the quality of your products?
A: Generally, our equipments are the most durable type in the industry, this is also the feature of the label impression of DH for most of our customers at home or abroad.However, we do recognized that there do have small amount of the product which may got faulty or damaged for different reasons.
Q: How do your after-sale service work if the product got damaged?
A: In the gurantee time 12 months, our general aftersale serve.


↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓
