ZXDN-3 Multi-functional Energy Meter Calibrator

  Features


1. measure a variety of electrical parameters, such as three phase voltage, current, active power, reactive power, power factor, angle, frequency, etc.

2. can calibrate various of energy meters and other metering equipments

3. can measure integrated error on site

4. Two current input modes for option: terminal or clamp meter

5. Show Hexagon vector diagram

6. High precision of CT turns ratio measurement

7. Can save 500 groups of data and connect to PC

8. LCD display with user-friendly interface

9. Portable

Technical Indicators


1.Power energy measurement: ±0.1%(built-in transformer)±0.2%(split transformer)

2.Rated voltage: 0V~400V  20% overflow are not allowed

3..Rated current: built-in transformer 0~10A, Split type transformer: 20A or 100A,500A,1000A,2000A(optional)20% overflow are not allowed

4.AC voltage RMS accuracy: ±0.1%

5.AC current RMS accuracy: ±0.1%(split transformer:±0.2%)

6.Active power: ±0.1%(split transformer:±0.2%)

7.Reactive power: ±0.3%(split transformer:±1.0%)

8.Frequency measurement: 45Hz-65Hz (±0.01Hz)

9.Angle measurement: 0°-360°(±0.1°)

10.Constant of impulse:

1)0low frequency FL=6400P/kw·h

2)High frequency FH=6400×8P/kw·h

11.Power supply: DC 8.4V ±10%

12.Power consumption: 8VA

13.Dielectric strength:

1) the insulating resistance of voltage, current input terminal to case≥100MΩ

2) the input terminal of the working power can stand 1.5kV (RMS) to case, time is 1 minute

14.Work temperature: -15ºC~60ºC

15.Relative humidity: 0%~90%

16.Warm-up time: 1 minute

17.Weight: 2.0KG  32×24×13cm

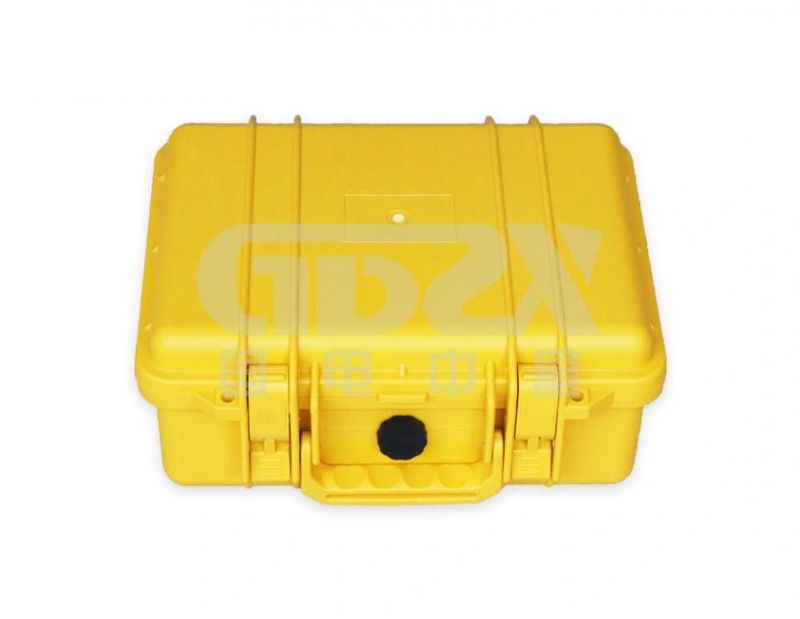

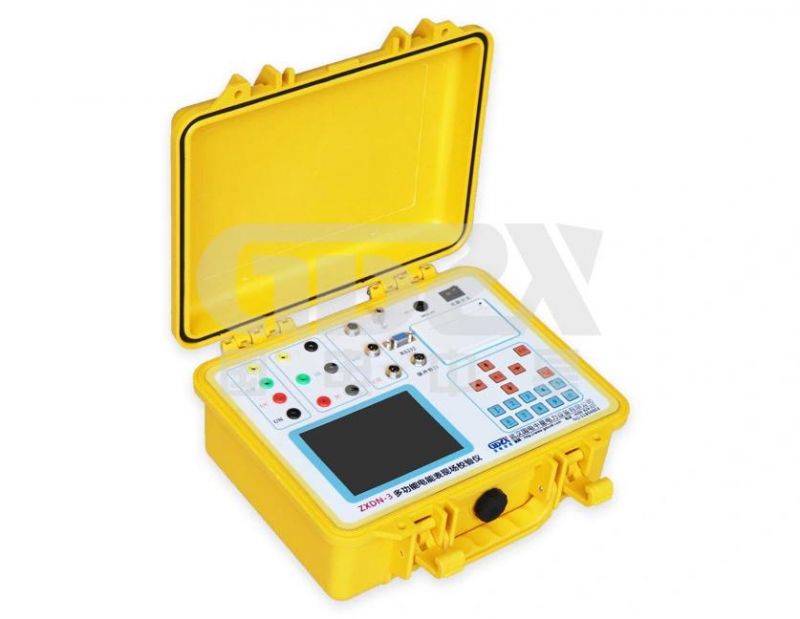

Product pictures

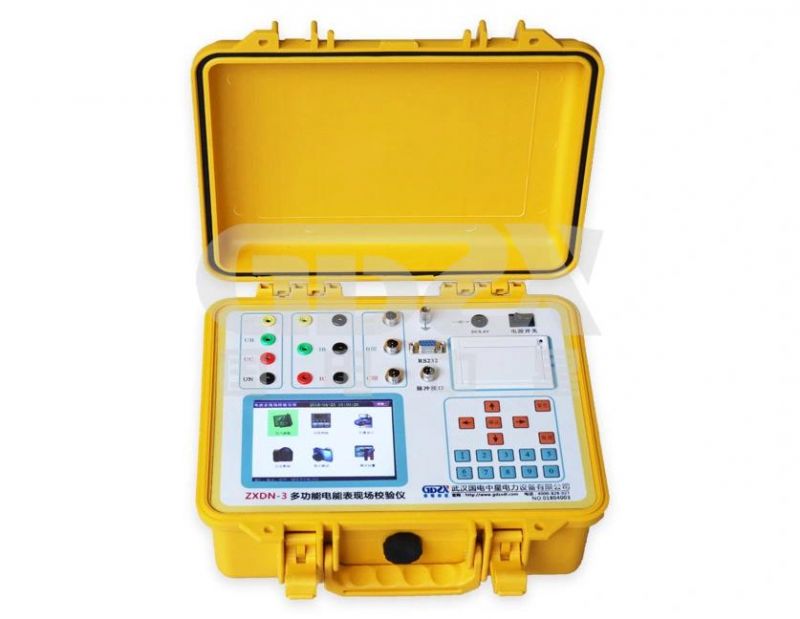

Device display
