• Model NO.：ZXR-100A
• Transport Package：Carton,Wooden Case
• Specification：With the change of technical scheme
• Trademark：GDZX
• Origin：Hubei
• Production Capacity：500 Pieces,Month

ZXR-100A Transformer Winding Resistance Tester adopts the new power technology. It has the characteristics of small volume, light weight, large output current, good repeatability, strong anti-interference ability, perfect protection function and so on. The whole machine is controlled by high speed single chip microcomputer, and has high automation level. It has the function of automatic discharge and discharge alarm. The instrument has high precision and easy operation, and can be used to measure the direct resistance of the transformer.

1. The output current of the instrument is large, the measuring range is wide, the volume is small, the weight is light, and the operation is simple.

2. The test speed is fast, the precision is high, the retestability is good, and the anti-interference ability is strong.

3. It has perfect protection circuit, and its reliability is strong.

4. Has the sound discharge alarm function, the discharge indication is clear, reduces the misoperation.


Technical Indicators


1.Output current:100A,50A,20A,10A,5A

2.measuring range:100A:50μΩ~100mΩ;50A:100μΩ~200mΩ;20A:200μΩ~800mΩ;10A:500μΩ~2Ω;5A:1mΩ~4Ω

3.Resolution:0.1μΩ

4.Accuracy:±(0.2%+2d)

5.Volume:390mm×240mm×250mm

6.Weight:12kg

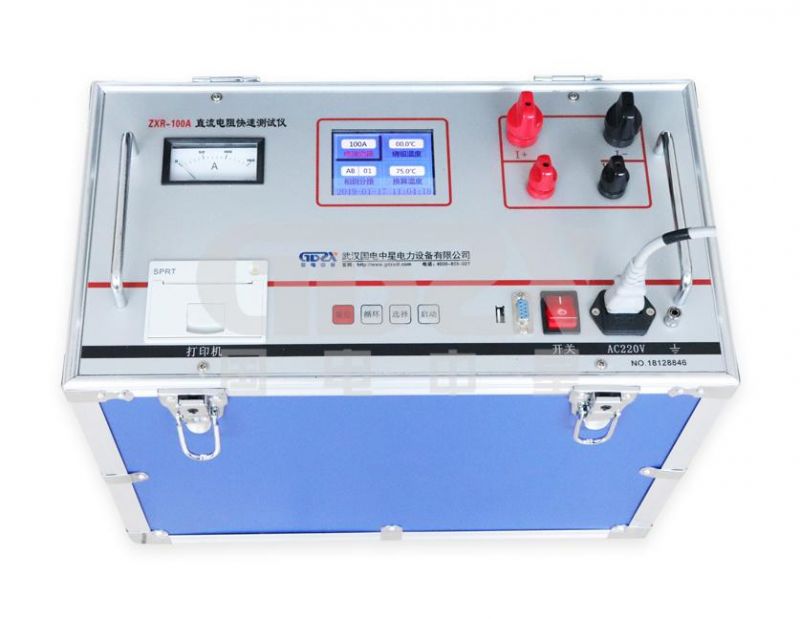

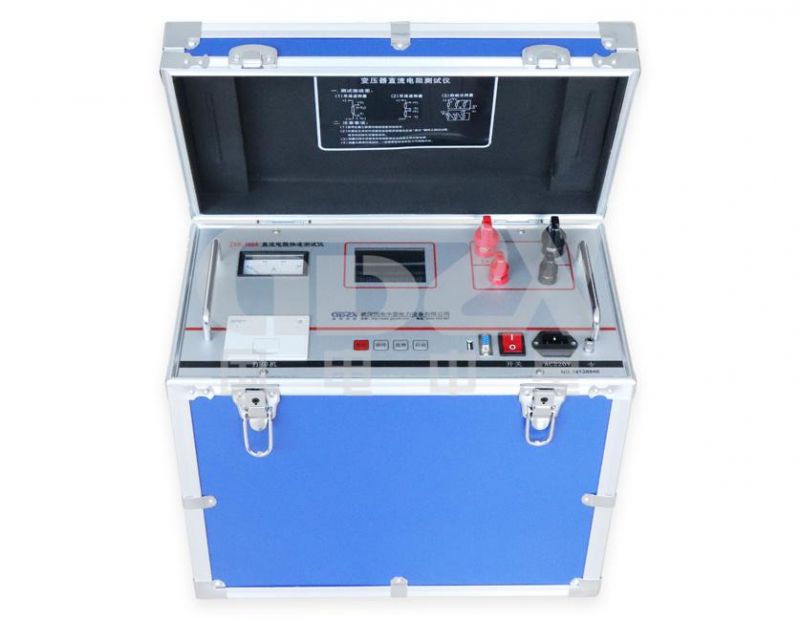

Product pictures

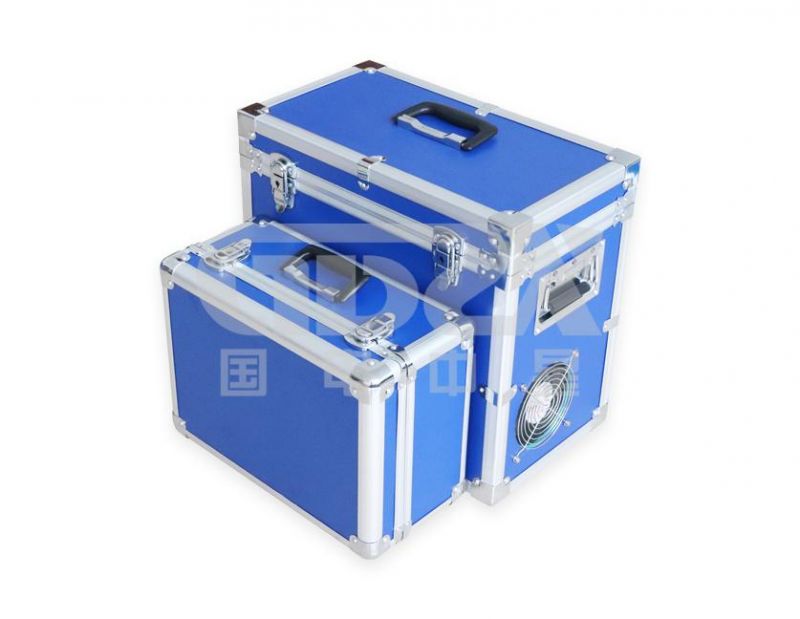

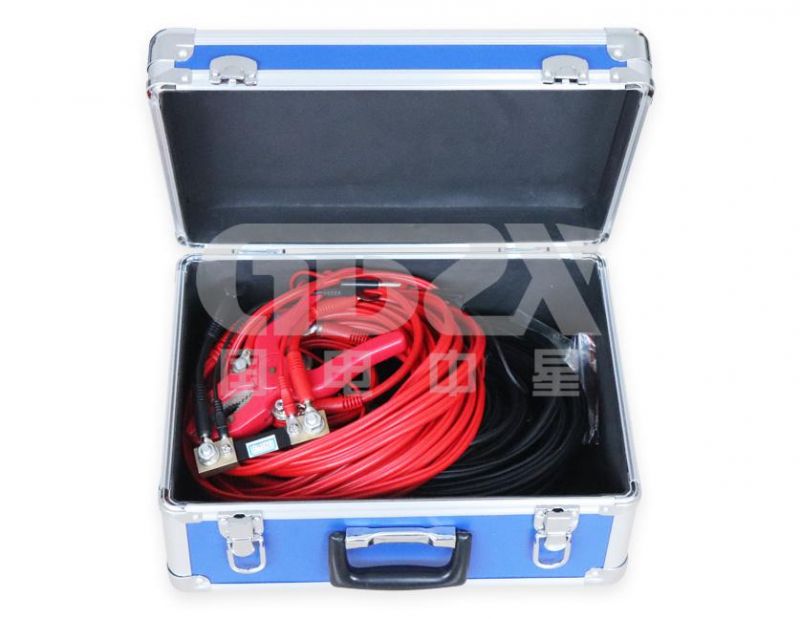

Device display

     Wuhan GDZX Power Equipment Co.,Ltd.is a manufacturer of power test equipment, integrating design, production and sales, providing complete solutions for high-voltage testing and electrical testing services for various power users.The main products include:AC series resonance test device, high voltage test equipment, transformer test equipment, secondary protection / switch test equipment, cable fault tester, arrester test equipment, power metering equipment, standard source series and so on. There are many kinds of products and complete models.
