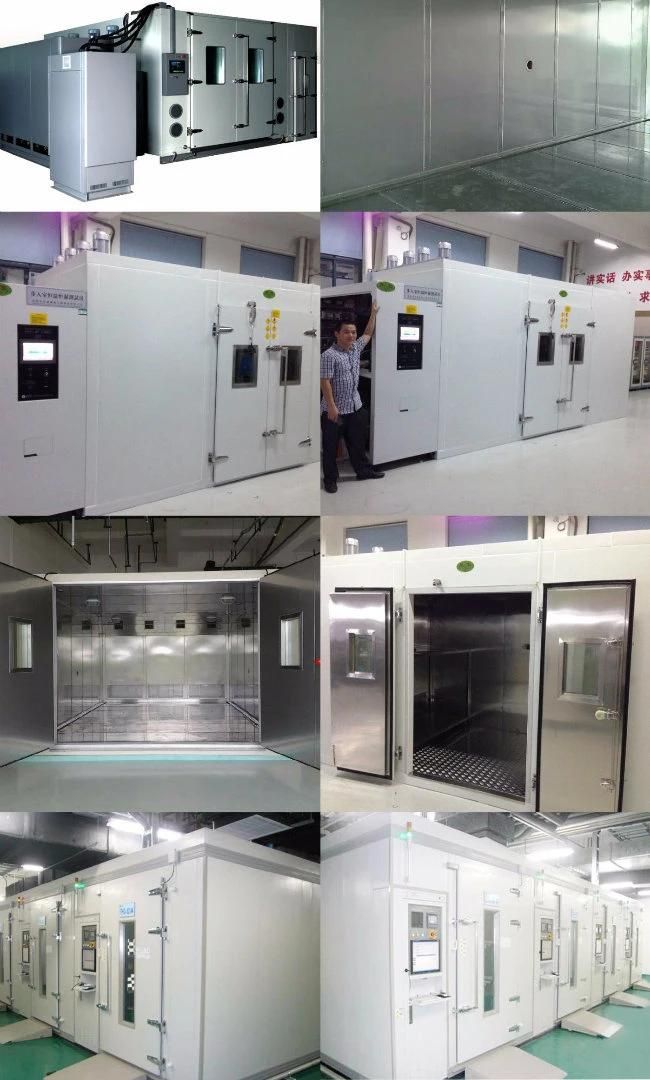

Laboratory Modular Walk-in Cyclic Temperature Humidity Chamber

Dongguan Xin Bao Instrument Co., Ltd.
  • Power Supply：AC 3 Phase 380V 60,50Hz
  • Certification：CE, ISO
  • Warranty：2 Years
  • Refrigerant：R23,R404A
  • Controller：Programmable LCD Touch Screen
  • Compressor：Original France Tecumseh,Germany Bizer Brand

Base Info

  • Model NO.：XB-OTS-12m3B-B
  • Color：Can Be Customized
  • Temperature Range：-80 Degree~ +150 Degree
  • Humidity Range：20%~98%Rh
  • Volume：7-150m3
  • Standard：CE, IEC, Mil
  • Transport Package：Strong Wood Case for Climatic Chamber
  • Specification：W3000*H2000*D2000mm
  • Trademark：OTS
  • Origin：China
  • HS Code：9032899090
  • Production Capacity：120

Description





Note:1. We reserve the right to change specifications without prior notice   2.Customized sizes and configurations availableControl method and characteristics:
    Precision microcomputer control temperature and humidity system, with PID control the refrigerant flow to make the system's heating / humidification reduction, to achieve low power consumption, energy saving, carbon reduction effect, cooling, heating, humidity control intelligent electronic control, long-term stable use.
 Optional accessories1Cable Port: Two size of cable port is available: Φ50mm, Φ100mm.2Double door3Pass room: Provided to avoid disturbance of atmospheric temperature and humidity while opening the door.4Floor reinforcement: Can be fixed if heavy specimen placed in the chamber for test.5Carry-in inclined platform: Provided below the door to facilitate moving of specimens in and out through the door.6Entire ceiling blow-out duct7The extremely wide air inlet reduces the airflow rate (down to apprrox.0.5m/s)8Dehumidifier9The rotation regenerating dehumidifier (M-300)ensures precise control of low humidity (21 C,23%RH)for electrostatic reliability tests.10Temperature and humidity recorder11100mm width recording paper with 6 dots12180mm width recording paper with 12 dots13Status indication lamp14 Provide to signal chamber status and warnings when normal running, a malfunction running or stand by occurs.15Water purifier16Provided to keep the humidifier heater free from scale and ensure the supply of water to humidifier.17Power socketStandard Met and Implemented:
GB/Bb T2423.2-89 high temperature test method
GB2423.1-89 test A: low temperature test method 6
GJB150.4-1986 test at low temperature
IEC60068-2-1 low temperature test method
IEC60068-2-38 temperature cycle
IEC60068-2-78 constant humidity temperature

Your company has just developed a great new product,
and now it is your job to select a better environmental test
chamber to test it and make sure it will hold up, and to decrease your lost.

OTS has business on reliability test equipment for more than 30years.
OTS  is widely recognized and recommended by the top 1000 comopanies and also customers from electronic, computer, home appliance, communications, chemical industry and scientific reseach.

FEATURES:
1.Realize temperature constant value control and program control;
2.The entire data recorder function (optional),which for record and retrospect,Protect/heater for short circuit protection, ensure the stability of air volume and heating during the operation.
3.With USB connector and WAN communication function,makes the communication equipment and software extensions to meet customers' needs.
4.Adopt international popular refrigeration control mode, can automatically adjust the compressor refrigeration power of 0% ~ 100%, compared with the traditional thermal equilibrium temperature control mode and energy consumption reduced by 30%.
5.Refrigeration and electric control the key parts adopt international famous brand, make the whole of the equipment has improved the quality and guarantee.
6.Customize size/customize indicators/customize various optional features
Laboratory Modular Walk-in Cyclic Temperature Humidity Chamber


Packing & Shipping

1.Strong standard wood case, inner plastic films wrapped for temperature and humidity test chamber 2. Usually we delivery the equipment by air,by sea or by express. it depends on customer

About US
Laboratory Modular Walk-in Cyclic Temperature Humidity ChamberOur Services
We are here to help you. Services available:

Replacement manuals

  • Consumables and replacement parts
  • On-site maintenance and repair
  • Warranty support
  • Over-the-phone service support and advice

If you have an OTS chamber  , we will do our best to help you in whatever way we can.

 Manuals: PDF files of manuals for current models are available free. Please contact us to request a copy. Older and printed copies at additional charge.

  • Service repair:  We prefer you contact us direct at the factory with any problems you may be experiencing.  We help diagnose the problem, arrange for any needed parts, and schedule a technician to do the repairs.  Rarely can a local contractor get all that done for you as quickly as we can.  We also guarantee the work
Laboratory Modular Walk-in Cyclic Temperature Humidity Chamber
 RFQ

Q1 :  Can you customize the product?

   A:   Yes, we can customize any products according to requirements.

Q2 :  How to choose the most suitable products?

   A:   Our professional team will give you the best suggestion,just be  patiently to tell us the information about the parameters your required.

 Q3 :  Can you arrange installations and commissioning in our lab?

   A:   Firstly, for standard chamber we had 3-5 days commissioning before shipping , you just need link power in your lab, then can start to operate

     Secondly; we had detailed operation manual with chamber , any problems you can find and solve in it
      Thirdly, some of customized chambers we should to install and teach your team to operate .
