Accelerated Ozone Aging Test Chamber for Rubber Products
Guangdong Yuanyao Test Equipment Co., Ltd.- Warranty:1 Year
- Inner Size:500*600*500mm
- Sample Frame:Customization
- Volume:150 Liters
- Temp. Range:Rt to 80 Degrees
- Resolution:0.01 Degree
Base Info
- Model NO.:YOT-150
- Temp. Fluctuation:+,- 0.5 Degree
- Temp. Uniformity:+,- 1.5 Degree
- Ozone Concentration:0~1000pphm, Adjustable
- Interior Chamber Material:SUS#304 Stainless Steel Plate
- Exterior Chamber Material:Cold Rolled Sheet+Powder Coating
- Ozone Control Accuracy:+,-10%
- Insulaiton:PU
- Load Way:Electronic Load
- Loading Method:Dynamic Load
- Control:Digital electronic Indicator + SSR + Pid
- Transport Package:Strong Wood Carton
- Specification:TUV, SGS Certification
- Trademark:Yuanyao Ozone Aging Test Chamber
- Origin:China
- HS Code:8514109000
- Production Capacity:100 Sets,Month
Description

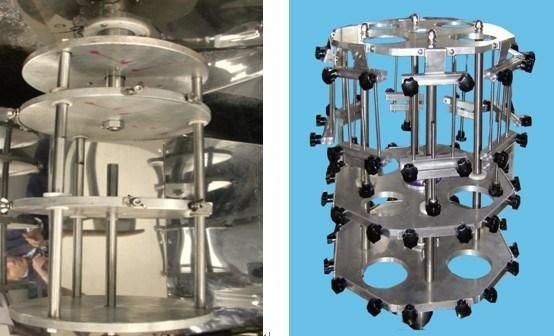

RT~80ºCTemperature fluctuation ±0.5ºC Temperature uniformity ±1.5ºC; Empty load, 30 mins after stanlization Resolution 0.01ºC Ozone concentration 0~1000PPHM, adjustable (Optional: 0~500ppm non-standard) ozone control precision ±10% Ozone production mode Ozonator Sample frame Static and Dynamic fixtures Sample frame speed 360° rotation (1 circle/minute Material SUS#304 Stainless steel for inner chamber, cold rolled sheet + powder coating for external chamber Insulation PU Circulation system Cooling fan Heating system SUS# stainless steel high speed heater Controlling system Digital electrinic indicator + SSR+ PID Refrigeration system compressor + Fin type evaporator + air/water cooling system Ozone concentration analyzer Imported ozone concentration analyzer Ozone generator Silent discharge ozone generator Other components 1. Muti-layer vacuum glass obvervation window 2. Controlling status indicator lamp 3. Chamber light Safety protection device 1. Over-heat protection 2. phase sequence protection 3. overload protection Power supply AC 1ψ220V; 3ψ380V 60/50Hz Customization service Non-standard or special requirements are all welcome

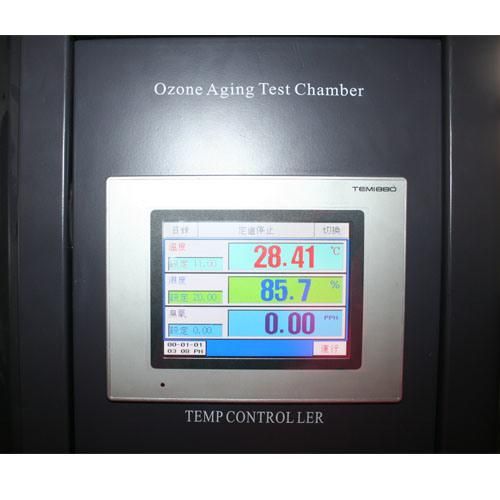

Detailed Picture

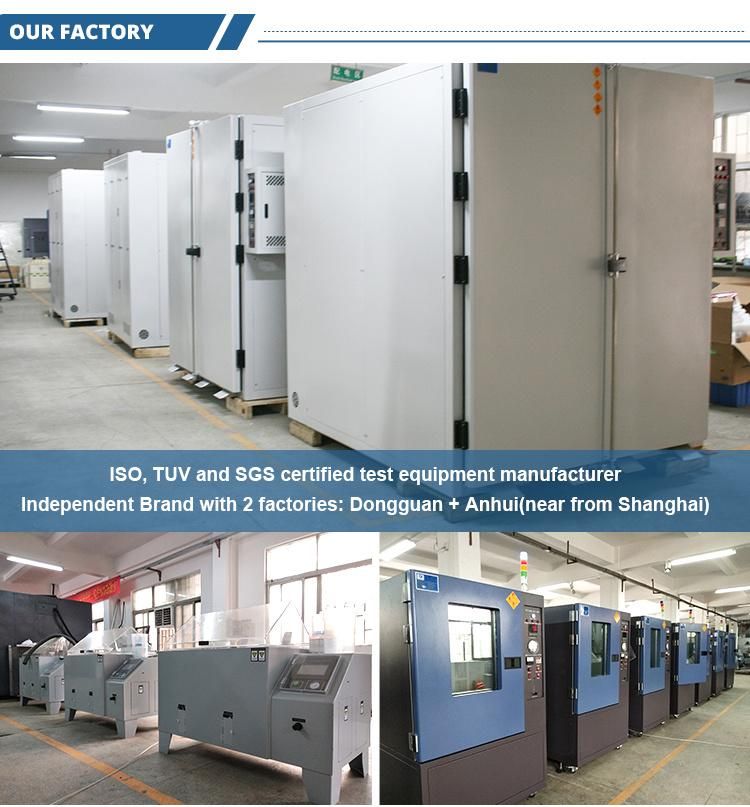

Company Introduce
Customers Visit Us
Customers' Feedback
Overseas Installation, Training and Maintenance
.
Exhibition
Certification
We also supply other different environmental test chamber as follow.
1) Temperature/ humidity test series: Temperature humidity test chamber, Walk in environmental room, Thermal shock test chamber, High altitude low pressure simulation test chamber2) Aging test series: Hot air oven, Vacuum drying oven, Air ventilation aging test chamber, Steam aging test chamber, Ozone resistance test chamber, Burn in test equipment3) Weather simulation tes series: Rain spray test chamber, dust test chamber, Xenon lamp aging test chamber, UV test chamer 4) Mechanical test series: High frequency vibration test machine, drop test machine , Glue dispensing machine etc.
Welcome to enquire and purchase!
