2500V High Performance Digital High Voltage Insulation resistance Tester
Wuhan GDZX Power Equipment Co., Ltd.- After-sales Service：Provided
- Warranty：1 Year
- Function：Insulation resistance test, AC,DC voltage test
- Rated Voltage：50V;250V;500V;1000V;2500V
- Insulation Resistance Range：0.1MOhm-200GOhm
- Output Shout Circuit Current：Greater than or equal to 2mA
Base Info
- Model NO.：ZX2671
- Voltage Range：AC,DC 0V-750V
- Backlight：Controllable off-white backlight
- Meter Dimension：212mm*175mm*76mm
- Weight：1230g
- Working Temperature and Humidity：-10-40Centigrade; below 80%rh
- LCD Size：108mm*65mm
- Transport Package：Wooden Case or Carton
- Specification：Universal Testing Machine
- Trademark：GDZX
- Origin：China
- Production Capacity：1200sets,Year
Description

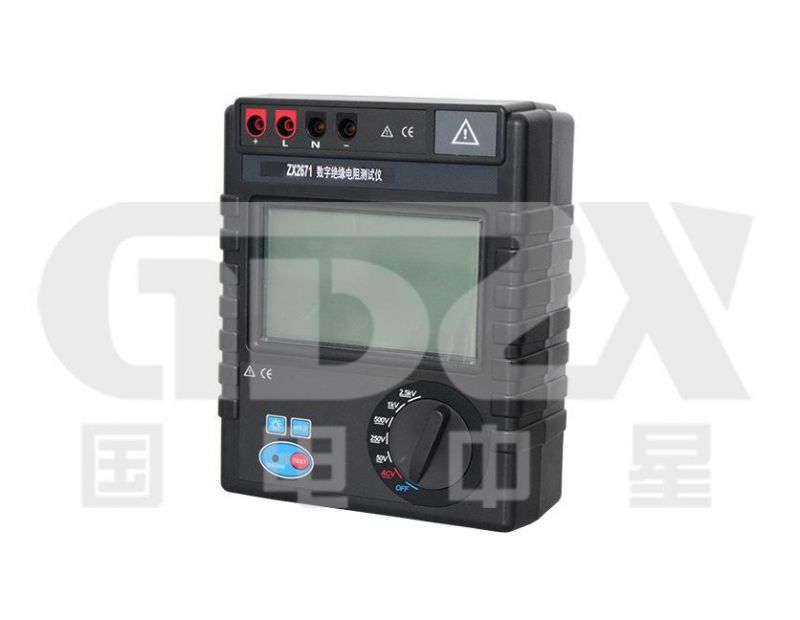

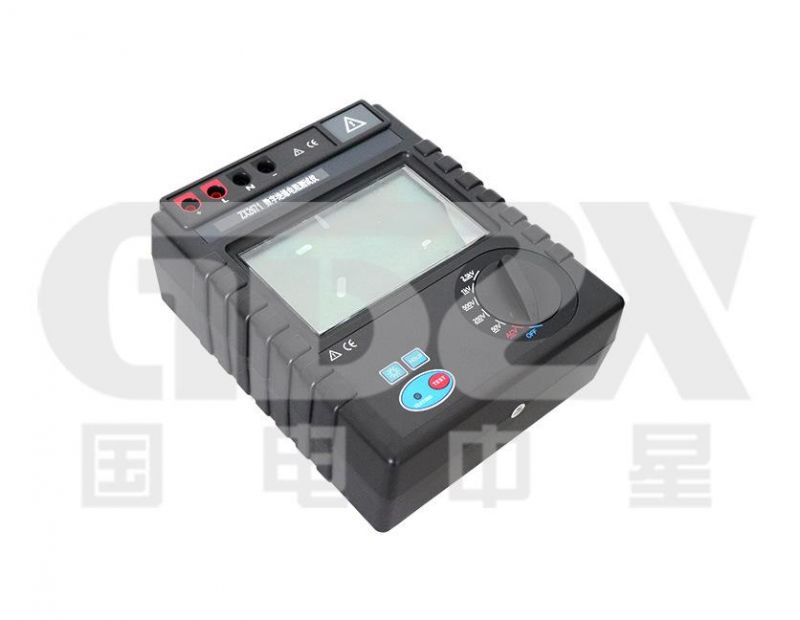

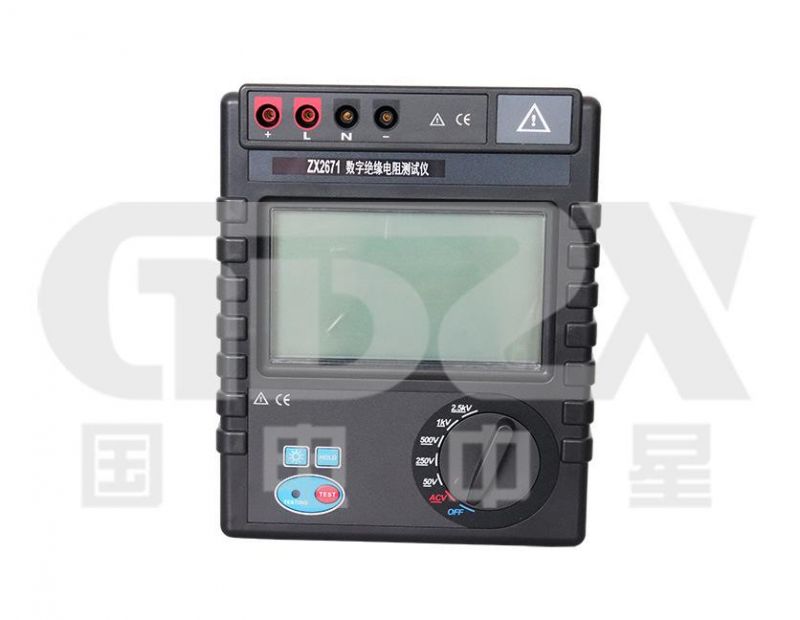

ZX2671 Insulation resistance test set is a high performance digital type instrument, with LCD large screen with backlight display, data hold, automatic discharge, automatic shutdown and other functions. The instrument has the functions of test timing and voltage monitoring. When the loop voltage is higher than 36V, the instrument will forbid tested to protect the safety of the tested objects and personnel.
Technical parameters
| Function | Insulation resistance test, AC/DC voltage test |
| Power Supply | DC 1.5V LR14X6PCS dry battery continues stand by above 100h |
| Rated Voltage | 50V;250V;500V;1000V;2500V |
| Insulation Resistance Range | 0.1MΩ~200GΩ |
| Voltage Range | AC/DC 0V~750V |
| Output Shout Circuit Current | ≥2mA |
| Max Capacitive Load | 1uF |
| Shift | Turn the shift rotary knob to select the appropriate gear |
| Backlight | Controllable off-white backlight, suitable for dark places |
| Display Mode | 4 digital LCD display, contrast clear |
| Measurement indication | LED flicker and buzzer ring in measurement |
| LCD Size | 108mm*65mm |
| Meter Dimension | 212mm*175mm*76mm |
| Test Wires | High voltage bar test wire: Red 1PCS; Probe test wire: Black 1PCS;Alligator clip test wire:1PCS;Alligator clip:1PCS |
| Test Time | The single test time is 1 min. During the test, the user can stop automatically or automatically stop after 1 min, and the screen display measurement data |
| Battery Voltage | Battery voltage symbol display, when battery voltage is low will remind to replace the battery in time |
| Automatic Discharge | Automatic release the voltage of the measured object, During discharging, symbol flash. Discharge completion symbol extinguish |
| Auto Shutdown | 15 minutes after boot up, the meter shuts down automatically without any operation |
| Power Consumption | Standby: about 40mA(backlight off);Start up with backlight:about 50mA;Measurement:about 100mA(backlight off) |
| Weight | 1230g |
| Working Temperature and Humidity | -10ºC~40ºC;below 80%rh |
| Storage Temperature and Humidity | -20ºC~60ºC;below 70%rh |
| Suitable Safety Standard | IEC61010-1(CAT III 300V,CAT IV 150V,Pollution 2) |

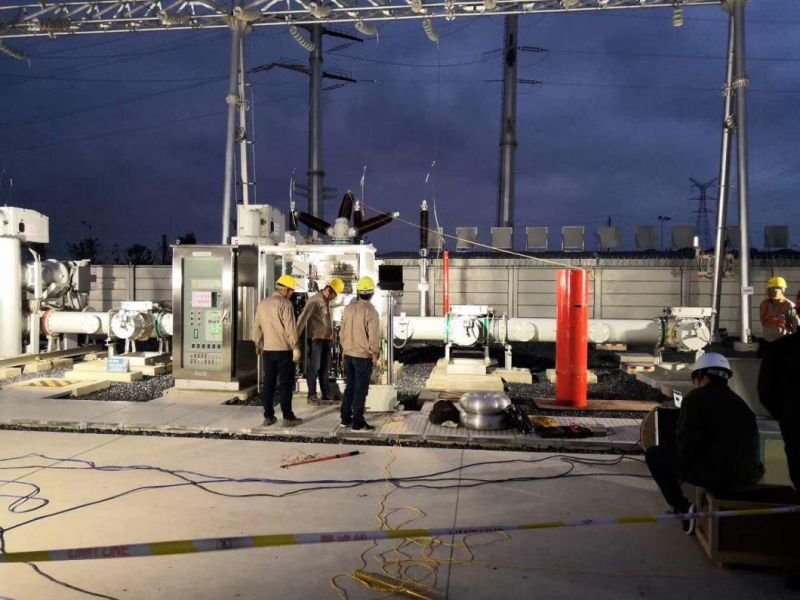

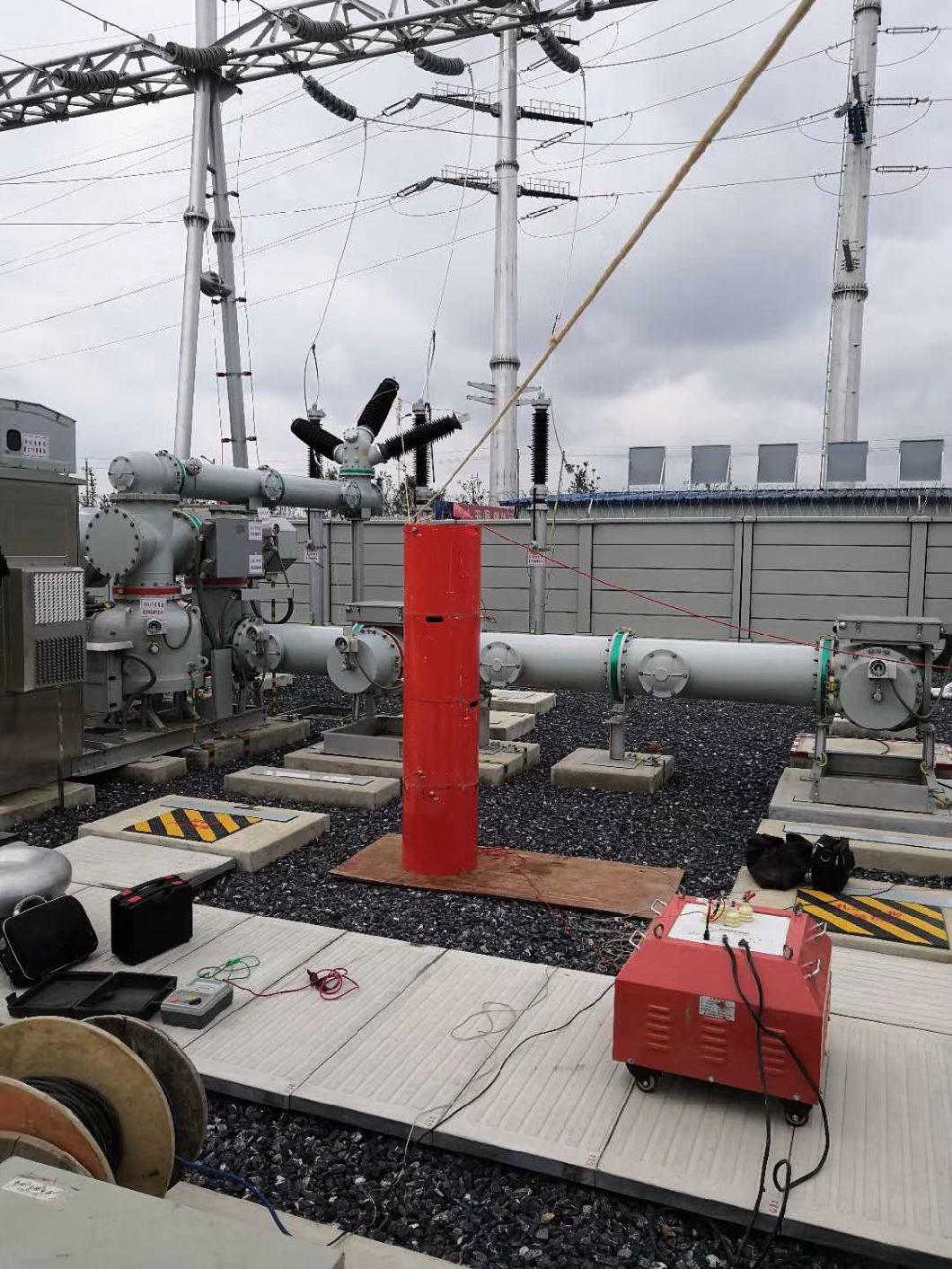

Test cases
Company introduction
Wuhan GDZX Power Equipment Co.,Ltd.is a manufacturer of power test equipment, integrating design, production and sales, providing complete solutions for high-voltage testing and electrical testing services for various power users.The main products include:AC series resonance test device, high voltage test equipment, transformer test equipment, secondary protection / switch test equipment, cable fault tester, arrester test equipment, power metering equipment, standard source series and so on. There are many kinds of products and complete models.
Service and Warranty
Service
* Provide professional consulting service; dedicated salesman and professional technical engineer to answer customer questions.
* Ensure customer get the detailed information about the product in hand.
* Reasonable price, we trust our customers should get the worth what they paid. Quotation stamped and confirmed by Manager.
* Welcome customers visit.
* Being trustworthy, follow the requirements and ensure successful implementation of signed contracts and technical agreements.
* Focus on communication, actively communicate with users, take notes of user's questions and schedule, provide the necessary technical support.
* Move quick and efficient, professional on delivery, installation, debugging, training and others. Warranty* We maintains 100% customer satisfaction, please give us feedback if you fell anything wrong with the product, we will make it right for you.* Our products are guaranteed with one year warranty and life-long tech support.* Provide solutions within 24 hours when there is problems feedback from customer.
PACKING AND SHIPPING
(1)We will ship products within 8-20 working days after the receipt of confirmation of your payment.
(2)All products will be well packed by robust carton or wooden box so as to ensure goods can arrive safely.(3)Multiple shipping methods including express, sea freight, railway and so on for your choice, competitive shipping method will be advised to you.(4)If you go with your own forwarder, we will provide all necessary documents for customs clearance.(5)After shipping, we will remain attentive till goods well received. If you need detailed specification, please feel free to contact us.
Features
1.Complete appliance is beautiful, wide range, high precision, high resolution, easy to operate, convenient to carry, accurate and reliable, stable performance, strong anti-interference ability.
2. the shockproof, dustproof, moisture-proof structure, which is the telecommunication, the electric power, the meteorology, the computer room, the oil field, the mechanical and electrical installation and the maintenance and uses the electric power as the industrial power or the energy industry enterprise department commonly used but essential instrument.
3.It is suitable for measuring the resistance of various insulating materials and the insulation resistance of transformers, motors, cables and electrical equipment.
