• Model NO.：ZH-HS-150E
• Heating Rate：2-4c,Min
• Cooling Rate：0.7-1.0c,Min
• Humidity：20% ~ 98%
• Temperature Fluctuation：0.5c
• Compressor：Tecumseh (France)
• Type：Standard Case Type (or Narrow Type Optional)
• Weight：200kgs
• Controller Type：Programmable Touch Screen
• Controller：LCD 7-Inch, English & Chinese Software
• Cabling Hole：Diameter 50mm,100mm Optional
• Transport Package：Wooden Case
• Specification：50x60x50cm
• Trademark：Sailham
• Origin：Guangdong, China
• HS Code：8479899990
• Production Capacity：5000sets,Year

ModelZH-HS-80
(A~F)ZH-HS-150
(A~F)ZH-HS-225
(A~F)ZH-HS-408
(A~F)ZH-HS-800
(A~F)ZH-HS-1000
(A~F)Inner size: WHD(cm)40*50*4050*60*5060*75*5060*85*80100*100*80100*100*100External size: WHD(cm)105*165*98105*175*108115*190*108135*200*115155*215*135155*215*155Temperature range(Low:A:+25ºC; B:0ºC;C:-20ºC; D:-40ºC;E:-60ºC;F:-70ºC) (High:+100ºC/+150ºC)Humidity range20%~98% R.H.(10%~98%R.H);(5%~98%R.His special optional condition)Temp analytic accuracy/
uniformity0.1ºC/±2.0ºCTemperature Fluctuation±0.5ºCHumidity analytic accuracy/ Humidity  control accuracy±0.1%;±2.5%Heating/cooling timeHeat up about 4.0°C/min ;  Cooling about 1.0°C/minInner and outer materialsSUS#304 Stainless steel for inner chamber ; Carton Advanced cold plate nano paint for outerInsulation materialsResistant to high temp ,high density,formate chlorine,ethyl acetum foam insulation materialsCooling systemAir cooling/single segment compressor(-40°C) ,air and water double segment compressor
(-50°C~-70°C)Protection devicesFuse switch, compressor overload switch, refrigerant high and low pressure protection switch,
super humidity over-temperature protection switch, fuse, failure warning systemPartsWatching window , 50mm testing hole , PL internal bulbs , Wet and dry bulb gauze , partition plate , castorx4,Foot Cupx4CompressorOriginal France "Tecumseh" brandControllerTATO TaiwanPowerAC220V 50/60Hz & 1 , AC380V 50/60Hz 3weight (kg)150220270320450580

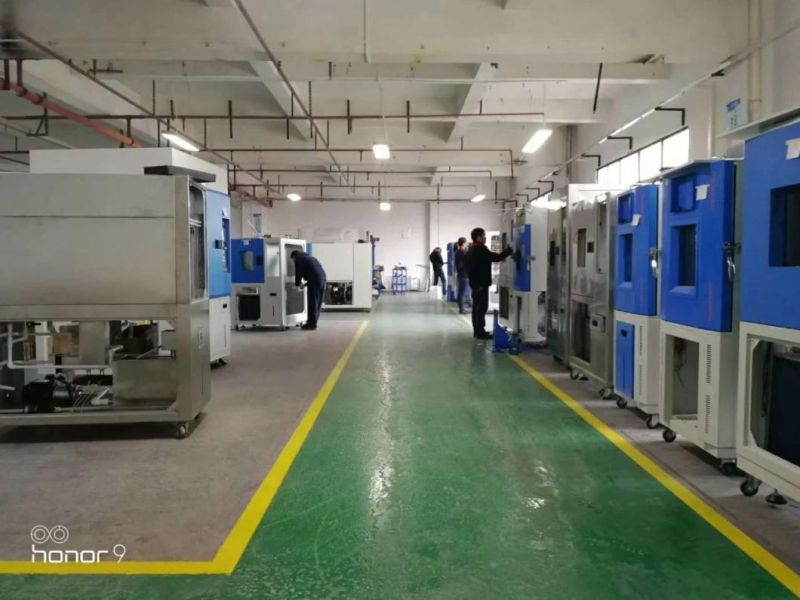

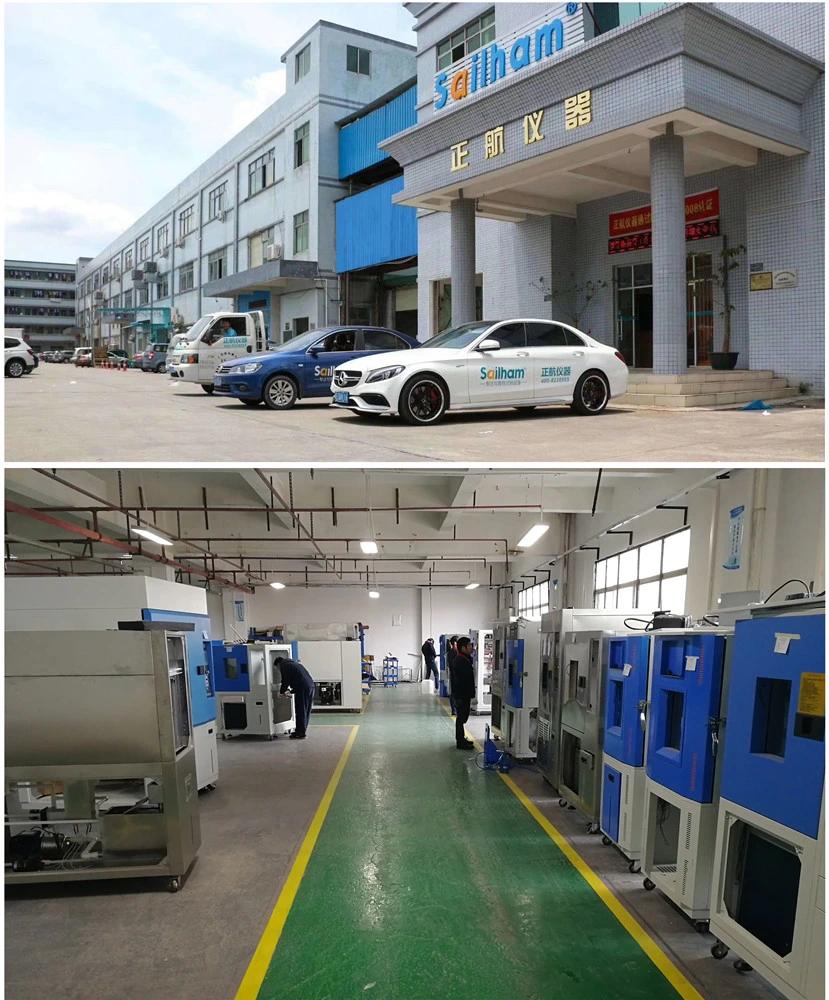

Our company:















TRADE SHOW:

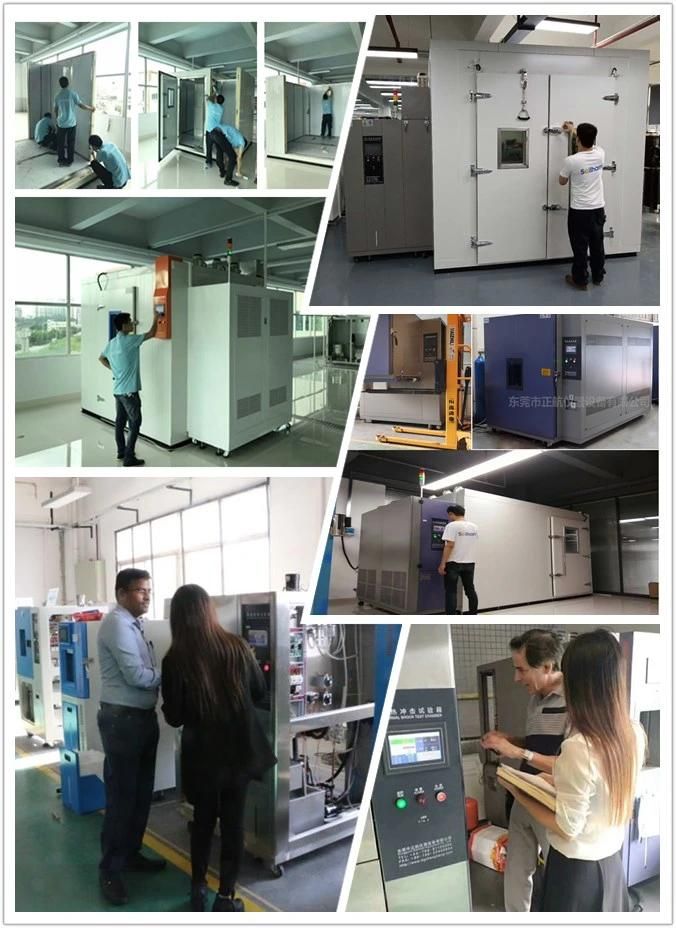

WALK-IN CHAMBER INSTALLATION, CUSTOMER VISIT




Certifications:




FAQ
Why choose us?
1. Consider different countries plugs, manually change the-voltage from 110V to 220V, as insurance indicator.

2.Excellent After sale Service:
12 months warranty. Besides, we can help you to repair your controller for free, even it's not from our factory. What can we do for you, just don't hesitant to contact us.

3.Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.

4.Good Packaging:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.

How to Contact Us?
Please Send your inquiry Details in the below for our quotation,Click "Send" Now!

Contact us at:



Company Address: Room 1605A, Ho King Commercial Centre, 2-16 Fa Yuen Street, Mongkok, Kowloon, Hong Kong
Shenzhen Branch: Huiyi Fortune Center, Shilong Road, Queshan community, Longhua District, Shenzhen City, Guangdong Province
Factory    Address: NO.53, Jinyuanxin Rd, Shilongkeng, Liaobu Town, Donggaun, Guangdong China (Mainland).
