• Model NO.：TBTUTM-100,300,600,1000CSI
• Control：Computer Control
• Weight：100-500Kg
• Power Source：AC220V
• Oil Cylinder Position：Under
• Accuracy：Grade 1
• Time for Load Maintained：30s
• Max Distance Between Flexible Clips：600
• Max Rising Speed of The RAM：80
• Transport Package：Standard Export Packing
• Specification：ISO9000
• Trademark：TBT
• Origin：Nanjing, China
• HS Code：90158790
• Production Capacity：50 Sets Per Month

Basic Info.

Model NO. TBTUTM-100/300/600/1000CSI Control Computer Control Weight 100-500Kg Power Source AC220V Oil Cylinder Position Under Accuracy Grade 1 Time for Load Maintained 30s Max Distance Between Flexible Clips 600 Max Rising Speed of The RAM 80 Transport Package Standard Export Packing Specification ISO9000 Trademark TBT Origin Nanjing, China HS Code 90158790 Production Capacity 50 Sets Per Month

Product Description

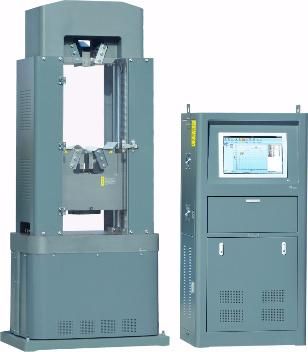

Universal Testing Machine with PC&Servo Control
Model:TBTUTM-100/300/600/1000CSI


1. Description
This series of products are mainly used for metal, nonmetal materials tensile, compression, bending, shear and other mechanical properties.

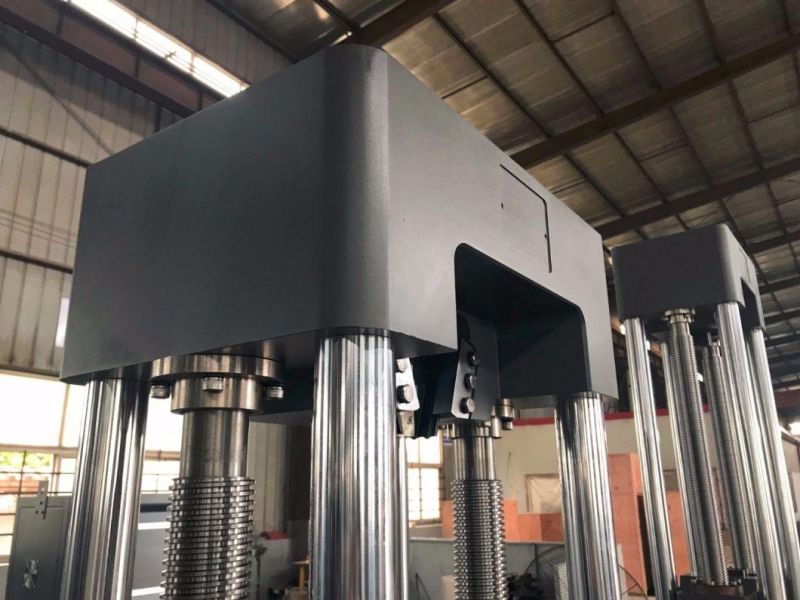

This series is set for the next tank, four, twin-screw, double space frame structure, tensile and compression space spacing electrically adjustable clamping mode for manual clamping.There are built-in beam coil spring buffer device, which can effectively eliminate the transmission gap between the screw and nut, and play a good role in the sample buffer pull off. Top of the platform configuration and high toughness fence, the space between the test and the formation of the operator isolation, can effectively guarantee the safety of the operator.

Integrated product configuration Qintai oil source cabinets, built-in import Mazu Qi pump output stability, low noise, high oil source cabinet integration, small footprint, and the operation, easy observation.

This series of products and control systems using high-speed Ethernet communications interface to communicate with the computer, with a variety of control methods load, displacement, stress, strain, and to achieve control in the form of a smooth handover.Test data using standard database management and discretionary access, enabling test data and re-analysis of the curve, and then edit the local amplification and data can automatically determine the mechanical properties of the material, you can print out the complete test report and curves and provides network data interface.

2.Main Specifications



Max. Capacity	100 KN	300 KN	600 KN	1000 KN
Accuracy class	1(0.5)	1(0.5)	1(0.5)	1(0.5)
power(kW)	2.2	2.8	2.8	2.8
Maximum speed of sentre sill(mm/min)	280	280	280	280
compression space(mm)	550	600	600	600
Tensile space(mm)	600	600	700	700
Piston stroke(mm)	200	200	200	200
Structure type	Four-column, two-screw, hydraulic clamping	Four-column, two-screw, hydraulic clamping	Four-column, two-screw, hydraulic clamping	Four-column, two-screw, hydraulic clamping
Diameter of round specimen(mm)	Φ6-Φ22	Φ10-Φ32	Φ13-Φ40	Φ14-Φ45
Diameter of flat specimen(mm)	0-15	0-20	0-20	0-40
Maximum distance of bending test(mm)	300	300	300	300
Size of compression plates(mm)	Φ110	Φ150	Φ200	Φ225
