• Accuracy Grade：0.5
• Load Way：Mechanical Load
• Loading Method：Dynamic Load
• Display：Computer
• Control：Digital
• Weight：100-500Kg
• Power Source：AC380V
• Oil Cylinder Position：Under
• Trademark：CHENGYU
• Origin：China
• HS Code：9024109000
• Production Capacity：1000

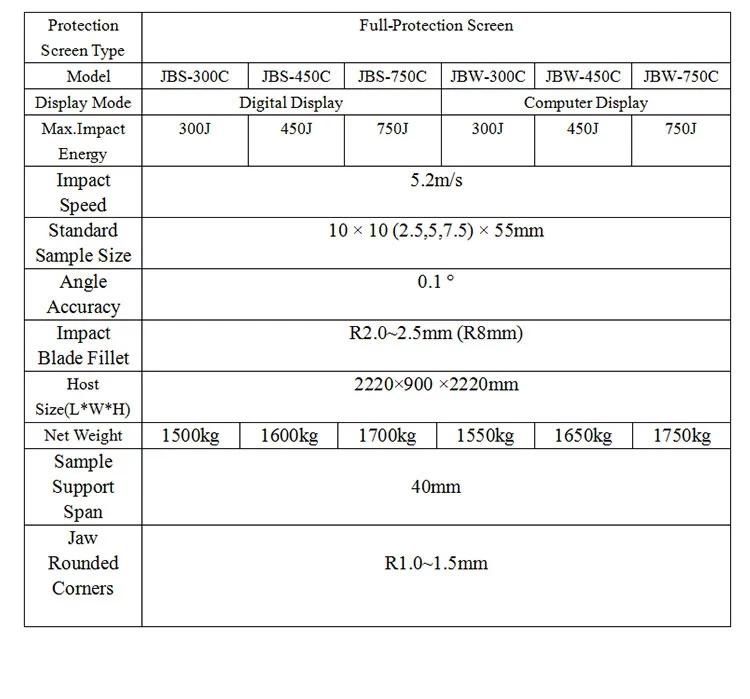

Model

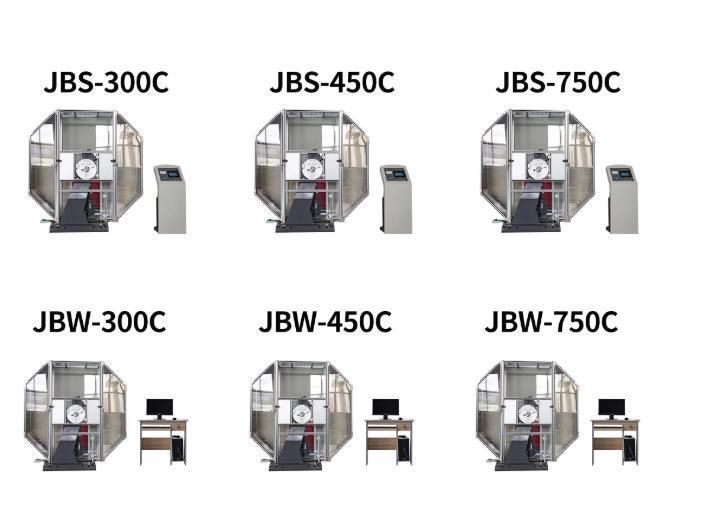

JBW-450C

impact energy

450J

Pre-rising angle of the pendulum

150°

The distance between the pendulum shaft and impact  point

750mm

Angle accuracy

0.1°

Impact speed

5.2m/s

Specimen bearer span

40mm

Sample frame bottom circle radius

2.5mm

Dip angle of supporting surface of supports

11°

Impact blame angle

30°

Thickness of impact knife

16mm

Standard specimen dimension

10mm×10(7.5/5)mm×55mm

Impact blame radius

2-2.5mm

Moment of pendulum(N.m)

450J 241.1543N.m

Cooling way

Compressor

Capacity of sample box

20

Range of low temperature

RT~ -60°c

Cooling speed

RT~0ºC     around 1.2ºC/min

0ºC~-20ºC     around 1.0ºC/min

-20ºC~-60ºC    around 0.5ºC/min

Precision of controlling temperature

Fluctuation ±0.5°C grades 1°C

Speed of sending specimen

≤2S

Power supply

3phs, 380V, 50Hz

Dimensions (mm)

2200×1500×1900

Net Weight (kg)

850

Standard accessories:

1. 450 Joule mainframe;

2. 450J pendulum;

3. One motor (mounted on the main engine);

4. A set of swing drive device (mounted on the main engine);

5. A set of automatic pendulum device (mounted on the main engine);

6. A set of refrigeration temperature control device;

7. A set of automatic feeding device (mounted on the main engine);

8. A set of safety net; (totally closed);

9. One pedestal adjuster;

10. Sample alignment is one.

11. One photoelectric sensor;

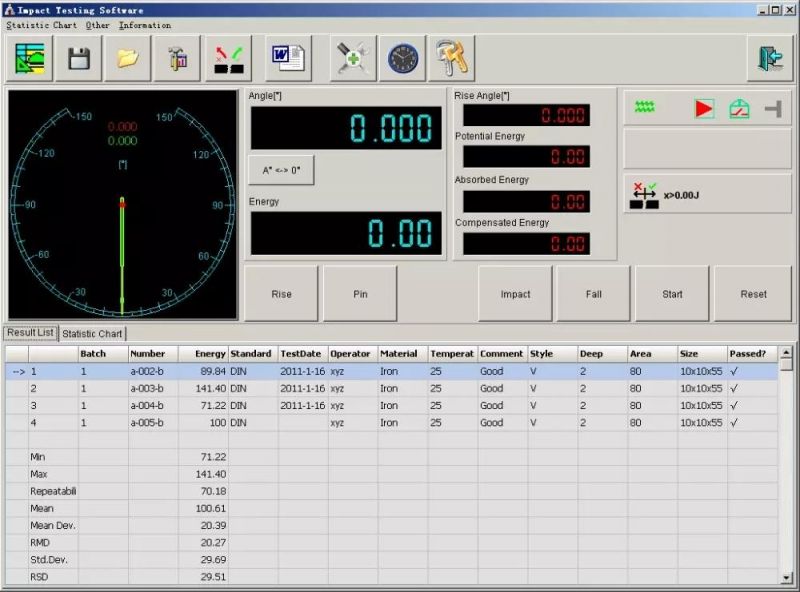

12. A set of special measurement and control software;

13. Control System Set (Siemens PLC);

14. Lenovo Microcomputer Set;

15. A Color Inkjet Printer;

16. Four anchor bolts;

17. Adjust four slant bars;

18. Pressure pump set;

19. A set of low temperature systems (minimum temperature - 60 C).
