• Model NO.：BMP-1C
• Resolution：0.1 Degree
• Linear Heating-up Rate：0.1 ~20 Degree,Min
• Temperature Accuracy：0.4 Degree (<200 Degree); 0.7 Degree (>200 Degree)
• Repeatability：0.3 Degree
• Capillary Size：Outside Diameter 1.4mm; Inside Diameter 1.0mm
• Sampleloading Height：3~5mm
• Data Storage：1000 Sets
• Power Supply：AC 220V,110V, 50,60Hz
• Transport Package：International Standard Box
• Specification：Size: 330*290*110mm
• Trademark：BIOBASE
• Origin：China
• Production Capacity：300units,Month

Model

BMP-2C

BMP-1C

BMP-1B

Measuring Range

RT~360° C

RT~400° C

RT~320° C

Resolution

 0.1° C

Linear heating-up rate

0.1 ° C ~ 20 ° C / min

0.2, 0.5, 1.0, 1.5, 2.0, 3.0, 4.0, 5.0 ° C / min

TemperatureAccuracy

0.4°C (≤200° C)

0.7°C (>200° C)

Repeatability

0.3° C

Capillary Size

φ1.4mm(outside diameter)φ1.0mm(inside diameter), 80mm (height)

SampleLoading Height

3~5mm

>3mm

Data Storage

1000 sets

/

Optional Accessories

Printer

/

Printer

Power Supply

AC 220V/110V±10%, 50/60HZ

External Size

410*290*110mm

330*290*110mm

330*290*110mm

Package Size

576*428*306mm

492*428*305mm

496*428*306mm

G.W

13kg

11kg

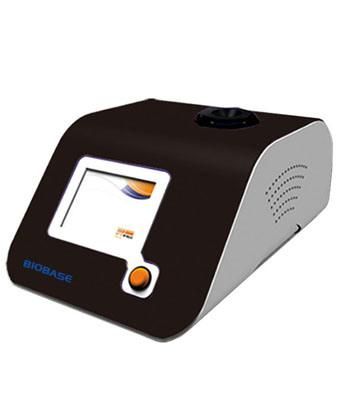

Features:

* Color VGA touch screen for operation and display;
* Multiple levels linear temperature gradients for different samples requirements;
* Detailed results data can be stored.

Technical Parameter:

Model

BMP120

Temperature Range

50 ~400ºC

Temperature Accuracy

0.4ºC (< 200ºC);0.7ºC (≥200ºC)

Display

5.6'' color touch screen

Standard Capillary Size

Inside dia. 1.0mm; outside dia. 1.4mm

Temperature Gradients

0.2 ~ 5ºC, total 8 levels

Capacity Per Batch

1 pc

Output Interface

RS232

Power Consumption

150W

Power Supply

AC220V±10% ; 50Hz

External Size(W*D*H)

455*312*200mm

Package Size(W*D*H)

615*485*350mm

Gross Weight

17kg
