TBTUTM-1000C-1 Universal Testing Machine with PC&Servo Control

Nanjing T-Bota Scietech Instruments & Equipment Co., Ltd.
  • Type：Universal Testing Machine
  • Maxcapacity：<1000KN
  • Accuracy Grade：1
  • Load Way：Electronic Load
  • Loading Method：Dynamic Load
  • Display：Digital

Base Info

  • Model NO.：TBTUTM-1000C-1
  • Control：Computer Control
  • Weight：100-500Kg
  • Power Source：AC220V
  • Oil Cylinder Position：Under
  • Accuracy：Grade 1
  • Time for Load Maintained：30s
  • Max Distance Between Flexible Clips：600
  • Max Rising Speed of The RAM：80
  • Transport Package：Standard Export Packing
  • Specification：ISO9000
  • Trademark：TBT
  • Origin：Nanjing, China
  • HS Code：90158790
  • Production Capacity：50 Sets Per Month

Description

Basic Info.

Model NO. TBTUTM-1000C-1 Control Computer Control Weight 100-500Kg Power Source AC220V Oil Cylinder Position Under Accuracy Grade 1 Time for Load Maintained 30s Max Distance Between Flexible Clips 600 Max Rising Speed of The RAM 80 Transport Package Standard Export Packing Specification ISO9000 Trademark TBT Origin Nanjing, China HS Code 90158790 Production Capacity 50 Sets Per Month

Product Description

Universal Testing Machine with PC&Servo Control
Model: TBTUTM-1000C-1

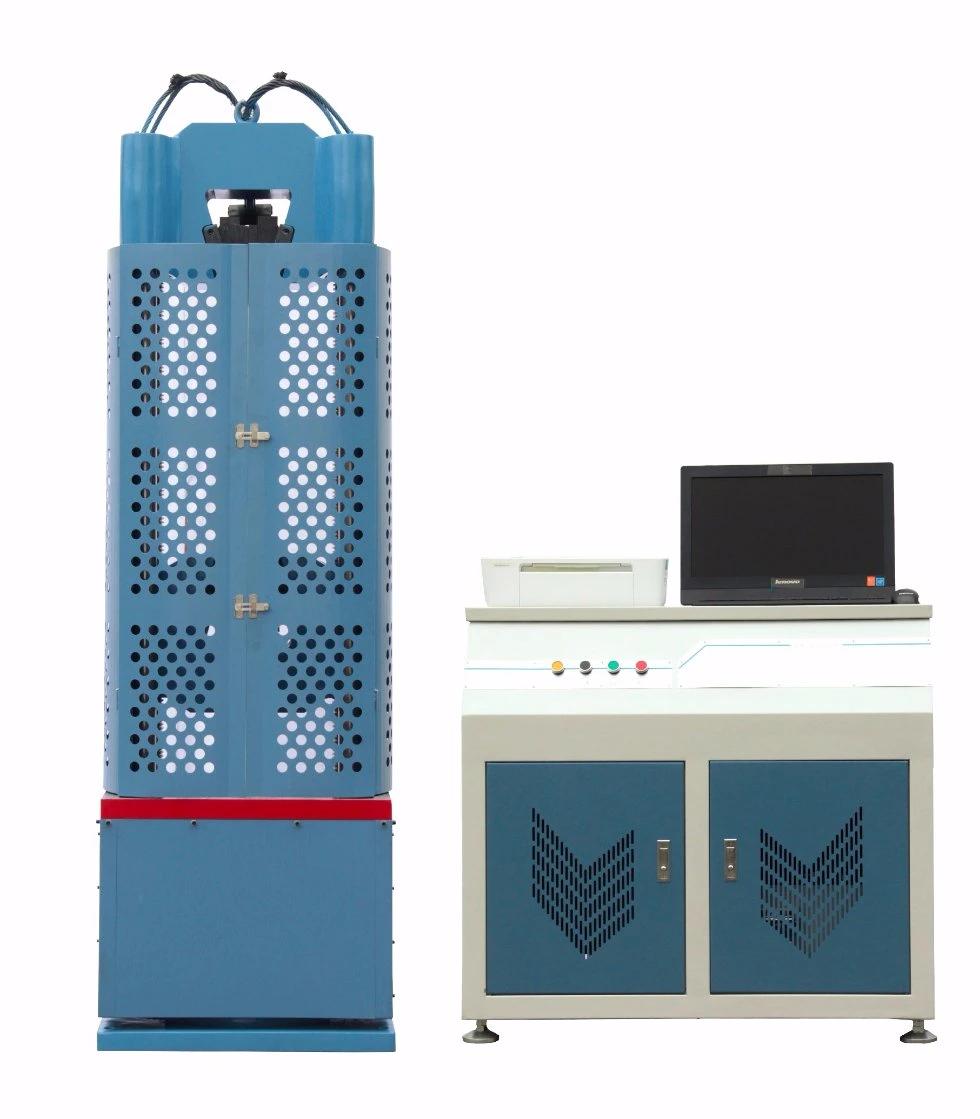

TBTUTM-1000C-1 Universal Testing Machine with PC&Servo Control
TBTUTM-1000C-1 Universal Testing Machine with PC&Servo Control

1. Description
  The testing machine is mainly designed for the tension test, compression test and  bending test of metal, also for non-metal of compression test, such as concrete and stone. If the proper jigs are provided, it can be used for various tests in the laboratories of mills, factories, colleges and research units concerned.

  It is featured with hydraulic loading, electronic force measurement, the load, the test process with curve can be displayed on the computer screen, and the data can be saved and printed out. It is overload protection. The oil cylinder is fitted on the bottom of the main frame, which is suitable for the compression test and all the annex will be provided for the technological tests of the metal.

2.Main Specifications
Maximum load1000 kN
Measuring range0-1000 kN
Grade of machine (start from 20% of the full  range)Grade I
Load maintained time≥30s
Max. distance between tension jaws (including piston stroke)1100 mm
Distance between compression plates:0-800 mm
Diameter for round specimenФ10-Ф20 mm
Travel of working piston200 mm

3 Accessories
1.O-ring
2.Oil flow control valve
3.Oil return valve
4.Oil pump
5.Motor
