• Model NO.：TBTUTM-100C,300C,600C,1000C
• Control：Computer Control
• Weight：100-500Kg
• Power Source：AC220V
• Oil Cylinder Position：Under
• Accuracy：Grade 1
• Time for Load Maintained：30s
• Max Distance Between Flexible Clips：600
• Max Rising Speed of The RAM：80
• Transport Package：Standard Export Packing
• Specification：ISO9000
• Trademark：TBT
• Origin：Nanjing, China
• HS Code：90158790
• Production Capacity：50 Sets Per Month

Basic Info.

Model NO. TBTUTM-100C/300C/600C/1000C Control Computer Control Weight 100-500Kg Power Source AC220V Oil Cylinder Position Under Accuracy Grade 1 Time for Load Maintained 30s Max Distance Between Flexible Clips 600 Max Rising Speed of The RAM 80 Transport Package Standard Export Packing Specification ISO9000 Trademark TBT Origin Nanjing, China HS Code 90158790 Production Capacity 50 Sets Per Month

Product Description

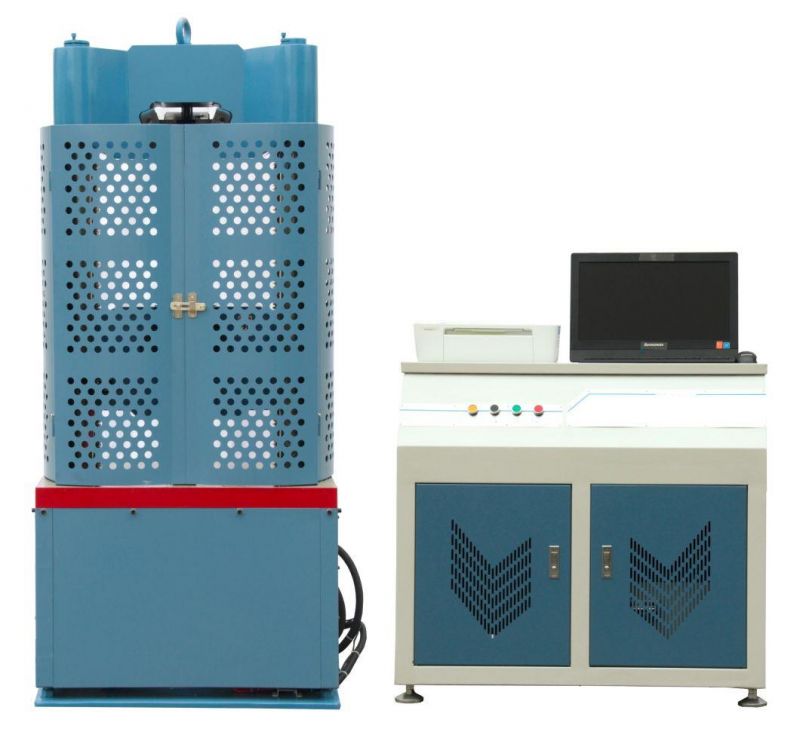

Eletro-Hydraulic Servo Universal Testing Machine with PC control
Model: TBTUTM-100C/300C/600C/1000C


1. Description
  The testing machine is mainly designed for the tension test, compression test and  bending test of metal, also for non-metal of compression test, such as concrete and stone. If the proper jigs are provided, it can be used for various tests in the laboratories of mills, factories, colleges and research units concerned.

  It is featured with hydraulic loading, electronic force measurement, the load, the test process with curve can be displayed on the computer screen, and the data can be saved and printed out. It is overload protection. The oil cylinder is fitted on the bottom of the main frame, which is suitable for the compression test and all the annex will be provided for the technological tests of the metal.

2. Main Specifications

max capacity	100KN	300KN	600KN	1000 kN
max. tension space	0-100 kN	0-300 kN	0-600 kN	0-1000 kN
Grade of machine	Grade I	Grade I	Grade I	Grade I
Load maintained time	≥30s	≥30s	≥30s	≥30s
flat specimen thickness	0~15mm	0~15mm	0~15mm	0~40mm
round specimen clamp diameter	D6~22mm	D8~32mm	D13~40mm	D20~60mm
bending max. distance	100~300mm	100~360mm	100~360mm	100-420 mm
Piston stroke	150mm	150mm	200mm	200 mm
weight	around 600KG	around 1200KG	around 1700KG	around 2500KG
Size	665mm×485mm×1536mm 1550mm×900mm×1270mmm	740mm×460mm×1970mm 1550mm×900mm×1270mmm	880mm×600mm×2020mm 1550mm×900mm×1270mm	960mm×620mm×2150mm 1550mm×900mm×1270mm


3. Accessories
1. O-ring
2. Oil flow control valve
3. Oil return valve
4. Oil pump
5. Motor
6. PC
