Weather Resistance Dust Proof Tester for Test LED Lighting Product
Guangdong Yuanyao Test Equipment Co., Ltd.- Max Diameter of Workpiece：500mm
- Mass Scope of Workpiece：<900kg
- Type：Material Testing Machine
- Maxcapacity：<1000KN
- Accuracy Grade：0.5
- Load Way：Electronic Load
Base Info
- Model NO.：YSDT-1000
- Display：Digital
- Control：Controller
- Power Source：AC220V; AC380V
- Internal Size(Mm)：1000*1000*1000
- Testing Type：F2
- Concentration of Dust：Above 3000 Mg,M3
- Testing Temp.：20 Degree Celsius +,- 15 Degree Celsius
- Humidity Range：45%Rh-85%Rh
- Swirl Time：5s
- Material：Stainless Steel
- Warranty：12 Month
- Flow Rate of Dust：No Limited
- Total Time：8h
- Transport Package：Strong Wooden Case
- Specification：CE, SGS, TUV certified.
- Trademark：Yuan Yao
- Origin：Guangdong, China(Mainland)
- HS Code：9032100000
- Production Capacity：100 Sets,Month
Description
ModelYSDT-1000-F YSDT-1000-C(IEC-529) Internal Dim.W×H×D(mm) 1000×1000×1000 1000×1000×1000 External Dim.W×H×D(mm) 1350×1950×1350 1350×1950×1350 Testing Type F1 F2 F3 IEC60529 C1 C2 Concentration of dust(mg/m3) Above 60000 Above 3000 Above 100 Above 5000 Above 100 Testing Temp. 20°C±15°C Huimidi.Range 45%RH~85%RH Flow rate of dust(m/s) No Limited 5m/s 10m/s Testing Time Swirl time 5S or other NO Rest time 15min or other Total time 5H 8H 8H 2H 6H Material Exterior SUS#304+Powder Coated Interior SUS#304 Other Components Chamber lamp,Wiper,Casters with adjusters Power Source(K.W.) AC 1Ψ 220V 60/50Hz 4KW
Except dust tester chamber, Dongguan Yuan Yao Electronics Technology Co., Ltd also can supply:
Precision Oven Tester, Triple Type Temp. & Humidity Chamber, Temp. & Humidity Control Host, Air Thermal Shock Tester, Liquid Thermal Shock Tester, Salt Spray Tester, Walk-in environmental Test Room, Temp. Humidity &Vibration Combined Test Chamber, Aging Oven Tester, Rain/Spray Test Chamber, Burn-in test equipment, Steam Aging Tester, Vibration Tester, Tensile Tester, Drop Tester and so on.

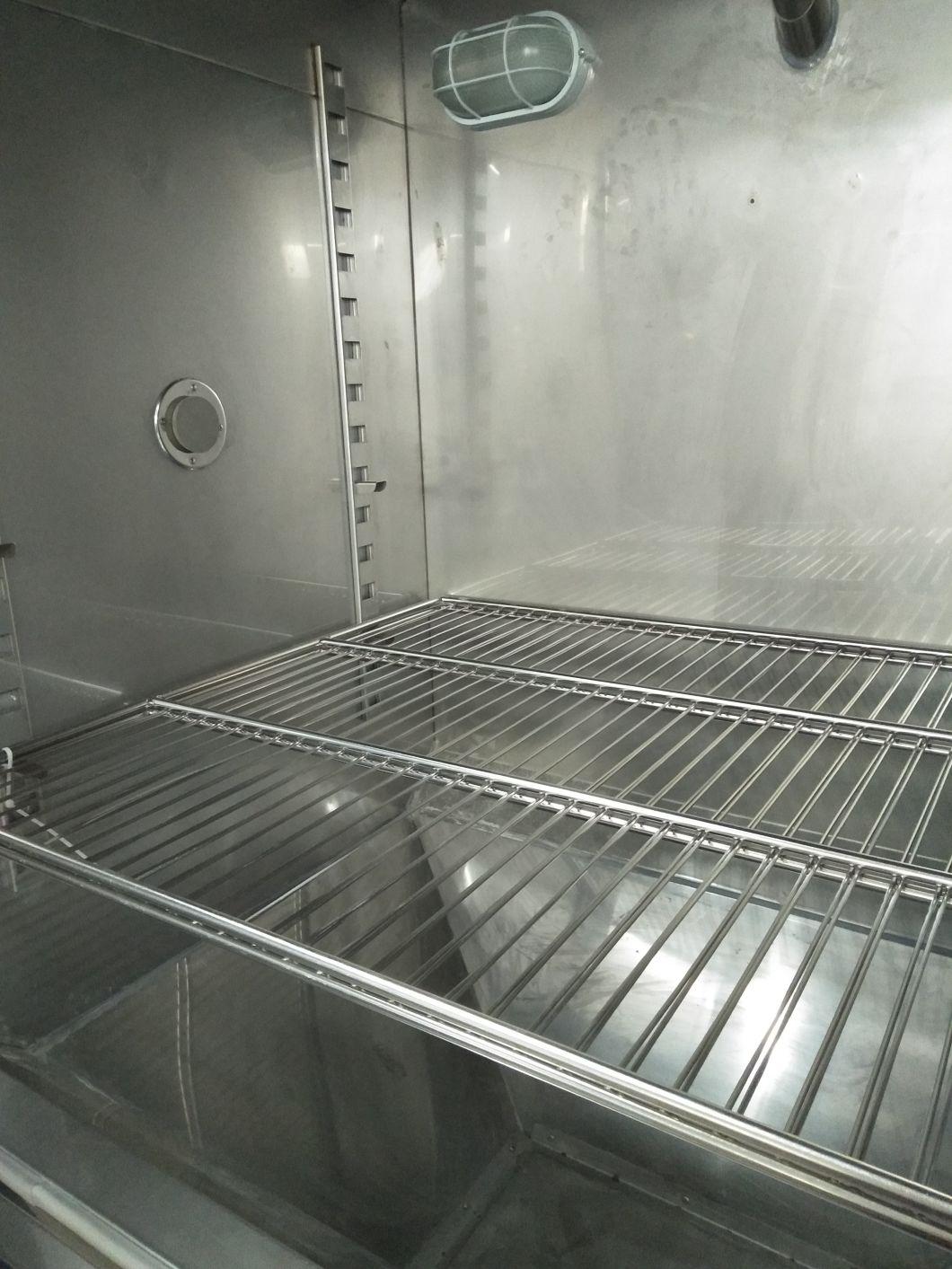

Detailed images
In addition to dust-proof test chamber, we are also manufacturing:
Precision Oven Tester, Triple Type Temp. & Humi. Chamber, Temp. &Humi. Control Host, Air Thermal
Shock Tester, Liquid Thermal Shock Tester, Walk-in environmental Test Room, Temp. Humi. &Vibration
Conbined Test Chamber, Aging Oven Tester, Rain/Spray Test Chamber, Burn-in test equipment, Dust Tester,
Steam Aging Tester, Vibration Tester, Tensile Tester, Drop Tester and so on.
Company profile
If you want to know more about the salt spray test chamber,please feel free to contact us.
Welcome to inquiry !
Except dust tester chamber, Dongguan Yuan Yao Electronics Technology Co., Ltd also can supply:
Precision Oven Tester, Triple Type Temp. & Humidity Chamber, Temp. & Humidity Control Host, Air Thermal Shock Tester, Liquid Thermal Shock Tester, Salt Spray Tester, Walk-in environmental Test Room, Temp. Humidity &Vibration Combined Test Chamber, Aging Oven Tester, Rain/Spray Test Chamber, Burn-in test equipment, Steam Aging Tester, Vibration Tester, Tensile Tester, Drop Tester and so on.
